Merck Sterivex-HV Pressure Filter Unit

Sterivex-HV Pressure Filter Unit

0.45 µm pore size, PVDF membrane, with bell outlet, gamma irradiated, sterile

material

Eastar™ housing
PVDF membrane

Quality Level

400

무균

sterile

특징

holdup volume 2.2 mL
hydrophilic

manufacturer/tradename

Sterivex™

파라미터

3.1 bar max. inlet pressure (45 psi)
45 °C max. temp.

technique(s)

sterile filtration: suitable

높이

85 mm

직경

5.4 cm

여과 면적

10 cm2

용적

1000 mL

기질

Durapore®

공극 크기

0.45 μm pore size

피팅

female Luer-Lok® inlet fitting (with upstream vent)
outlet filling bell

배송 상태

ambient

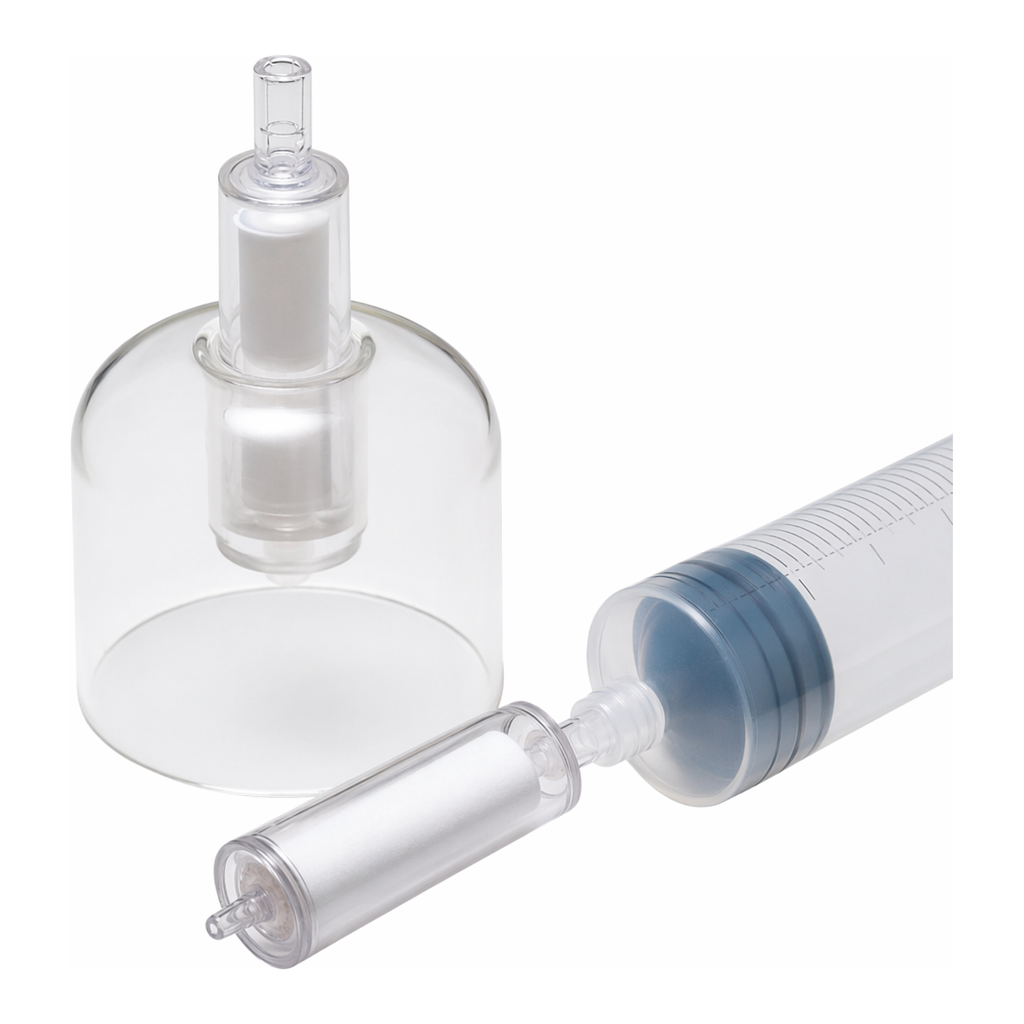

- Sterivex filter units work with syringes, peristaltic pumps or pressure vessels. They eliminate the risk of contamination associated with decanting or pipetting.
- Sterivex units are designed to dispense into virtually any storage container. The devices are available with different outlet connections (see table).
- Sterivex filter units can process volumes up to 1,000 mL or 2,000 mL, depending on the type of membrane used in the device. A choice of three different membranes is provided.
- Filter-sterilize volumes up to 1,000 mL or 2,000 mL, using Sterivex™ pressure-driven filter units (capacity depends on the type of membrane used in the device). With three different membrane options and a variety of outlet connection options, Sterivex filters can fit virtually any workflow and dispense into nearly any storage container. Sterivex filters work with syringes, peristaltic pumps or pressure vessels and eliminate the risk of contamination associated with decanting or pipetting.

Features & Benefits:
- Works with a variety of pressure devices including syringes, perstaltic pumps and pressure vessels
- Comes in multiple membrane types to suit your application needs with capacities up to 2 L

Applications:
Sterilization of Aqueous Solutions
