Merck Steripak-GP Pressure Filter Unit

Steripak-GP Pressure Filter Unit

0.22 µm pore size, polyethersulfone membrane, 4-stack sterilized by gamma irradiation

material

polyethersulfone membrane
styrene-acrylonitrile (SAN)

무균

sterile

특징

holdup volume 2.7 mL
hydrophilic

manufacturer/tradename

Steripak

파라미터

0.35 bar max. inlet pressure (5 psi) (Reverse)
2-20 L sample volume
20 L process volume
45 °C max. temp.
5.2 bar max. inlet pressure (75 psi) (Forward)

technique(s)

sterile filtration: suitable

높이

76 mm

직경

9.9 cm

필터 직경

160 mm

여과 면적

200 cm2

기질

Express PLUS™

공극 크기

0.22 μm nominal pore size
0.22 μm pore size

피팅

6 mm (1/4 in.) inlet stepped hose barb
outlet filling bell
6 mm (1/4 in.) outlet stepped hose barb

배송 상태

ambient

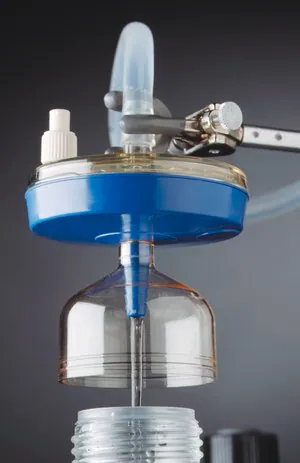

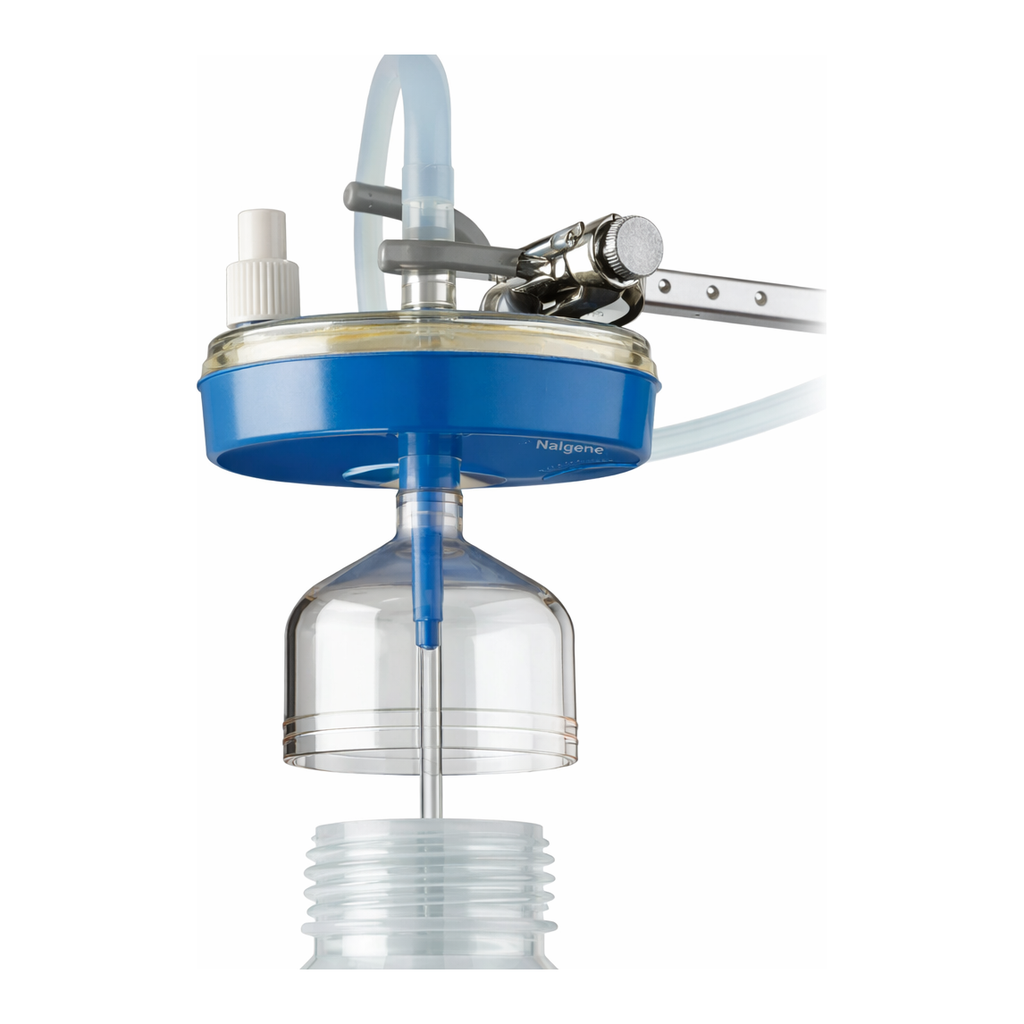

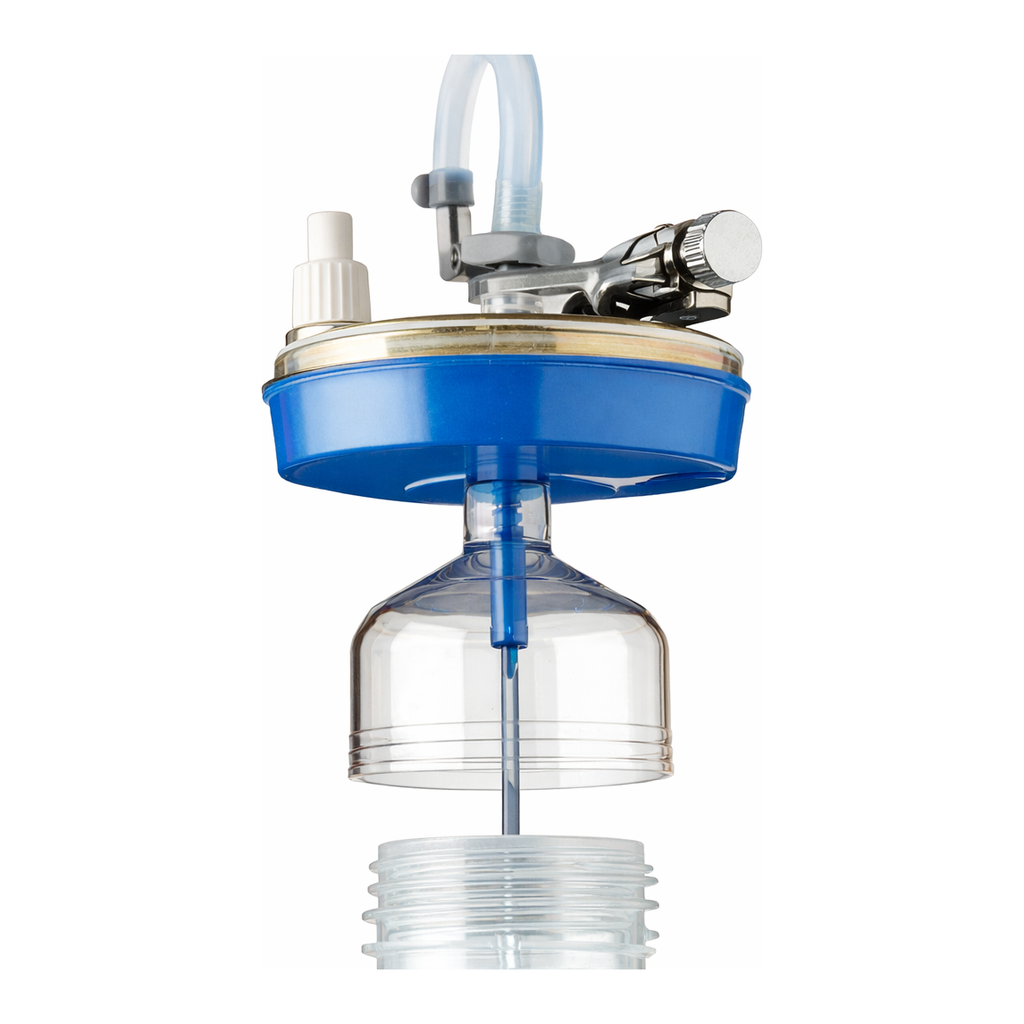

Steripak-GP filter units are designed for larger scale pressure-driven filtration of tissue culture media with or without serum. They are single use and are not autoclavable. The filter units come in two sizes, with the smaller unit able to filter up to 10 L and the larger up to 20 L. Both sizes utilize the low protein binding, fast flow 0.22 µm Millipore Express membrane. Each unit has an integral filling bell for bottle-top use and a manually operated upstream air vent to prevent membrane air locking. They are supplied sterile and ready to connect to a pump or pressure vessel (not included).

Steripak-GP filter units are designed for larger scale, pressure-driven filtration of tissue culture media with or without serum. Each filter is for a single use and is not autoclavable. The filter units come in two sizes with the smaller unit able to filter up to 10 L and the larger up to 20 L.

Features & Benefits:
- Millipore Express PLUS membrane for fastest flow rates and low protein binding
- Larger scale, pressure-driven filtration device for faster flow rates speeds time-consuming, large-volume filtrations
- 10 L and 20 L capacity sizes for maximum laboratory-scale filtration options
- Manually operated top air vent to prevent air lock stop of flow
- Filling bell for cleaner filling environment around the opening of the receptacle bottle

Applications:
Sterilization of Aqueous Solutions, Media Preparation, Buffer Preparation
