Merck 2MAG atexMIXcontrol cleanroom for use with atexMIXdrive

2MAG atexMIXcontrol cleanroom for use with atexMIXdrive

AC/DC input

100-240 V

material

aluminum

특징

20 W Stirring Power
4 Step Power Setting (25/50/75/100%)

포장

pack of 1 ea

manufacturer/tradename

2mag 99300

파라미터

0-40 °C temp. limit (at 80% humidity)
100-2000 rpm speed

너비 × 깊이 × 높이

210 mm × 55 mm × 30 mm

중량

3.6 kg

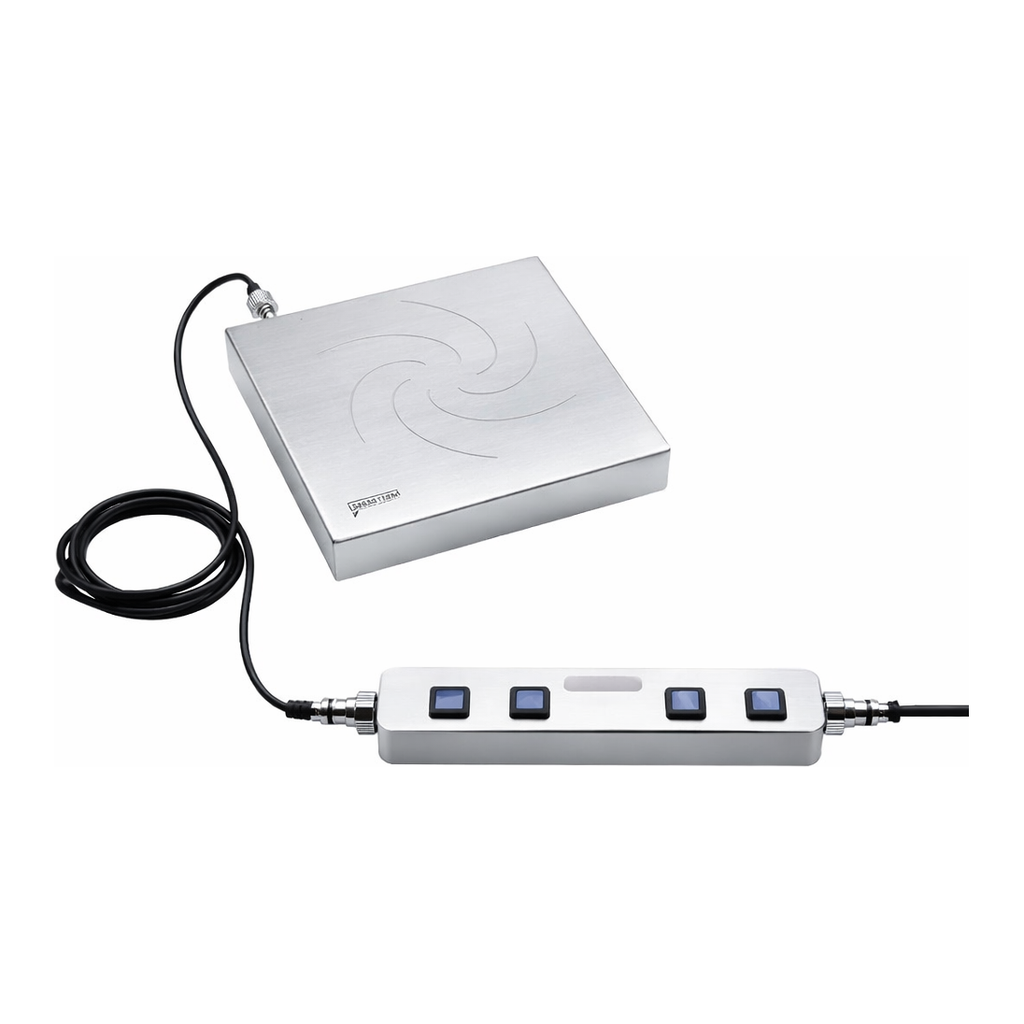

Explosion protected control unit for the connection of
1 stirring drive atexMIXdrive, suitable for protection zone 2
or cleanrooms.

20 watts stirring power, speed range from 100 up to
2,000 rpm, jerk-free stirring even at low speeds,
4-step power setting (25/50/75/100 percent).

Clear digital display for speed- and power settings,
SoftStart for reliable catching/centering and safe
accelerating of the stirring bar.

QuickSet for quick setting of start and maximum speed,
automatic memory function to save the last settings,
explosion protected housing, operation temperature up to
+40 C, certified according to ATEX II 3G Ex nA nL IIC T6.
