Merck Ace Trubore PTFE 4-piece stirrer bearing

Ace Trubore® PTFE 4-piece Stirrer Bearing

제품 개요

Self-aligning, lubricant-free PTFE Trubore bearing designed for use with stainless steel (SS) or polished glass stirring shafts at approximately 200 rpm.

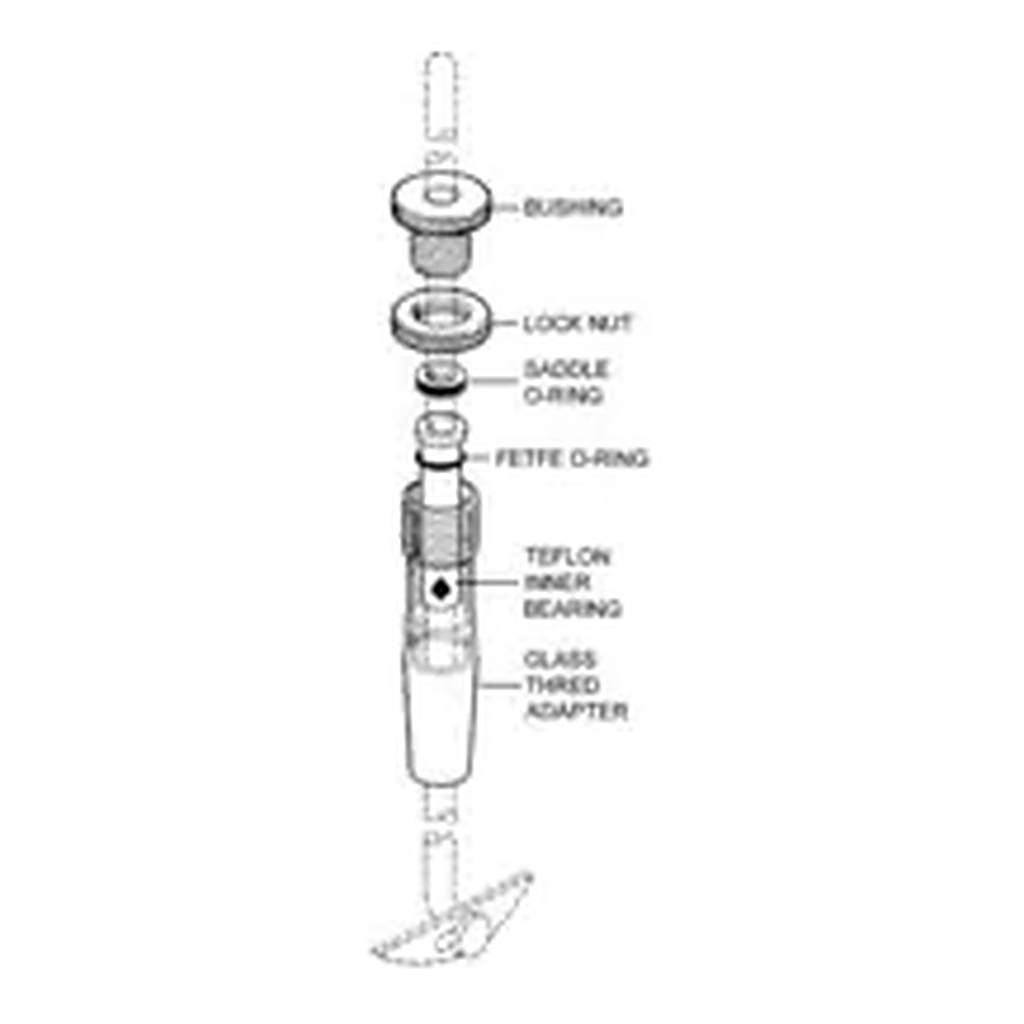

Consists of PTFE inner Trubore bearing, FETFE® compression saddle O-ring, glass-reinforced bushing and lock-nut with FETFE O-ring, and threaded glass adapter.
The lock permits stirring in either direction without fear of unthreading. The compression saddle O-ring maintains constant force with minimal attention.
Vacuum to 1 mm Hg. Not recommended for use with ground-glass shafts.

조인트 정보

• Joint: ST/NS 45/50
• Fits shaft outer diameter: 19 mm

제조사 / 트레이드네임

• Manufacturer / Tradename: Ace Glass 806730

주요 특징

• Self-aligning, lubricant-free PTFE 구조
• 양방향 교반 가능
• 일정한 압력 유지 O-ring 설계
• 진공 1 mmHg까지 사용 가능
• SS 또는 유리 교반 샤프트와 호환

제품 사양
