Merck Stuart undergrad stirrer hotplate

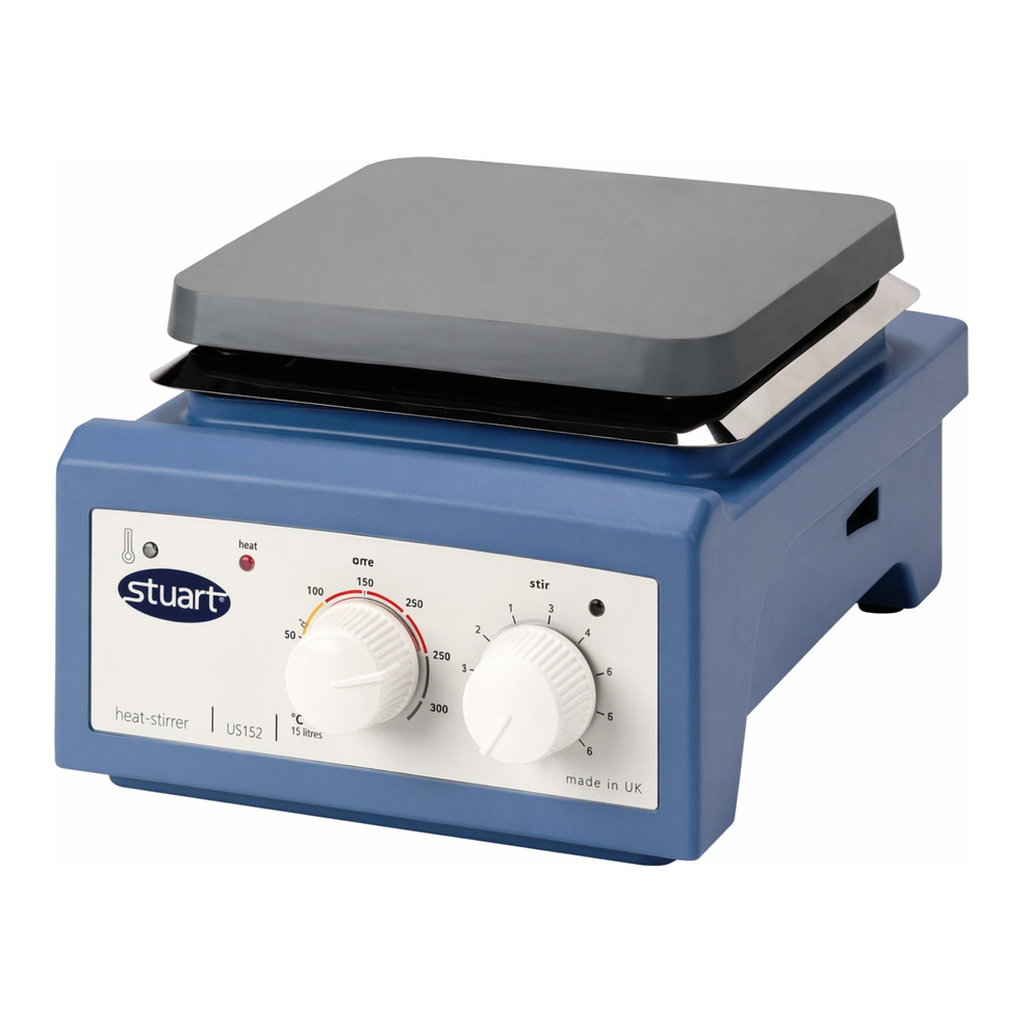

Stuart™ undergrad stirrer hotplate

coated metal top, analog, AC/DC input 230 V AC

electric hot plates, hot plates, stirring hot plates

material

ceramic plate

특징

capacity 15 L (stirring)

manufacturer/tradename

Stuart US152

파라미터

≤325 °C temp. range
100 to 2000 rpm speed (stirring)
100-2000 rpm speed

너비 × 깊이 × 높이

172 mm × 248 mm × 120 mm

플레이트 크기

150 x 150 mm

출력

700 watts

Stylish and economical general purpose hotplate stirrers designed with safety as well as performance in mind. The compact shape takes up less bench space and makes storage easier. The hotplate has an innovative LED temperature indicator scale and can also be used in conjunction with the SCT1 digital contact thermometer to accurately control sample temperature.

The Hot warning light will flash whenever the plate temperature is above 50°C even when the hotplate is turned off and unplugged from the mains. Powerful magnets and motor give stirring speeds up to 2000 rpm and is capable of mixing large volumes (up to 15 L).

Model UC152 has a glass ceramic top which has excellent chemical resistance. The surface is easy to clean and the thermal properties allow very high plate temperatures while ensuring the edges stay cooler, reducing the chance of accidental burns. The white surface ensures good visibility of colour changes.

Model US152 has a robust aluminium/silicon alloy top plate for excellent heat transmission. The top plate has a thin ceramic coating for added chemical resistance. A 700W element gives rapid heating and ensures even temperature distribution across the whole surface of the plate.

Both models have an integral fitting for a retort rod and are supplied with 2 x 25 mm PTFE coated stir bars.
