Merck Mini LabRoller rotator

Mini LabRoller™ rotator

AC/DC input 230 V AC, Schuko plug

manufacturer/tradename

Labnet H5500-230V-EU

파라미터

24 rpm speed

너비 × 깊이 × 높이

8.4 in. (21.3 cm) × 4 in. (10.2 cm) × 5 in. (12.6 cm)

Simple, yet versatile, the Mini LabRoller Rotator is designed for mixing samples in both a horizontal and vertical plane. The Mini LabRoller Rotator is supplied with a rotisserie for 36 x 1.5 or 2.0 mL tubes. Two additional rotisseries are available separately.

• Compact design conserves valuable bench
• Simple construction allows for easy cleaning and decontamination
• Wide selection of motions from gentle rolling, tumbling, to end over end mixing
• Cold room and incubator compatible

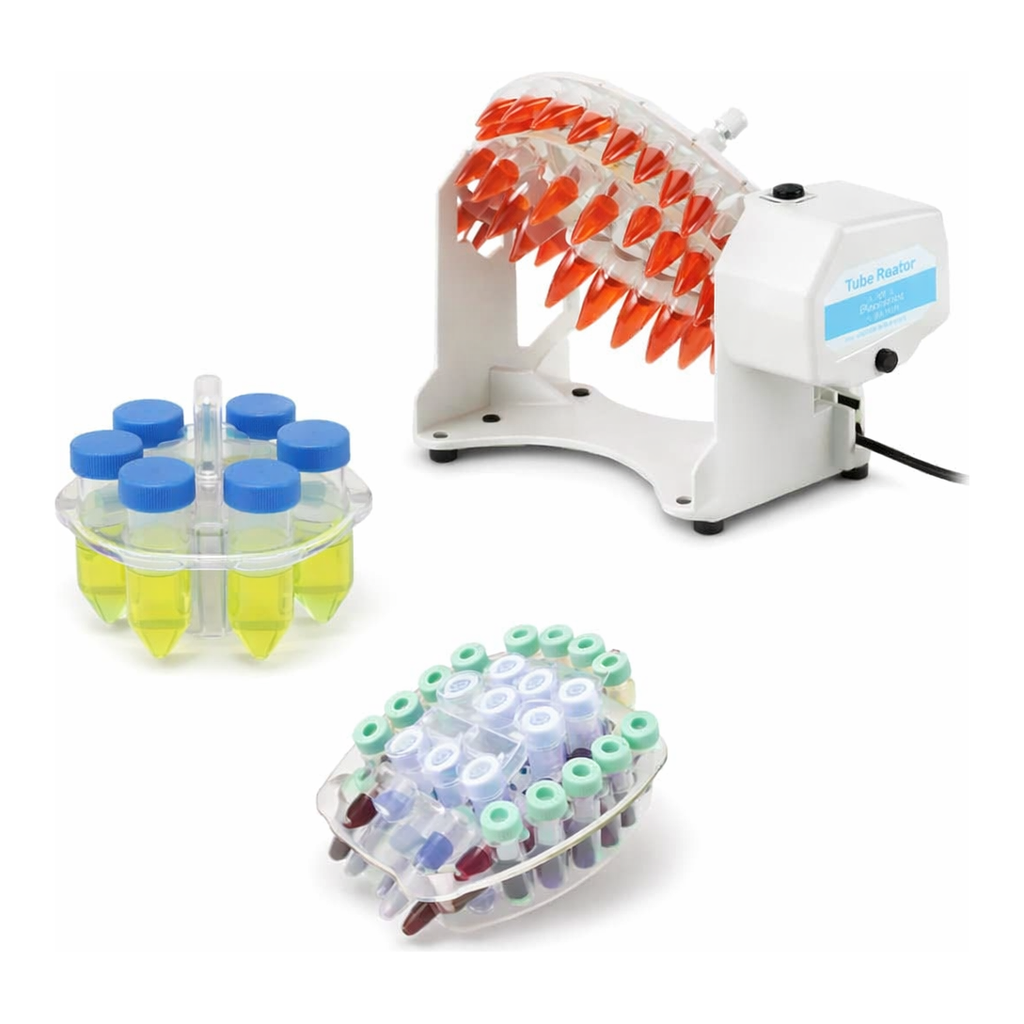

• Three easily interchangeable rotisseries to hold various size tubes and plates
• Operating conditions: +4 °C - 65 °C, up to 85% RRH non-condensing

When a rotisserie is inserted horizontally (tubes held vertically), an end over end motion is produced. The unit can then be used for simple rotating, or rested on either end to create a tumbling motion. Placing the Mini LabRoller on the end with the power switch will create a more vigorous tumbling motion than resting it on the opposite end.

A rocking motion is achieved by simply inserting pegs to limit the movement of the rotisserie to 20°, 45°, or 60°. Any of the three available rotisseries can be used as a rocking platform.

Using the supplied rod, the rotisseries may be mounted vertically (tubes held horizontally). In all configurations, the speed of the rotisserie is fixed at 24 rpm.
