Merck Ace pressure tubes with plunger valves and thermowells

Ace pressure tubes with plunger valves and thermowells

capacity ~15 mL

material

PTFE cap
borosilicate glass tube
cap (Front-Seal Plunger Valve)
clear tube
glass
round bottom
screw top cap (plugseal)
white cap

무균

non-sterile

특징

graduations: no
internal thread

포장

pack of 1 ea

manufacturer/tradename

Ace Glass 8648-164

길이 × O.D.

10.2 cm × 25.4 mm

용량

~15 mL

직경

25.4 mm

binding type

non-treated surface

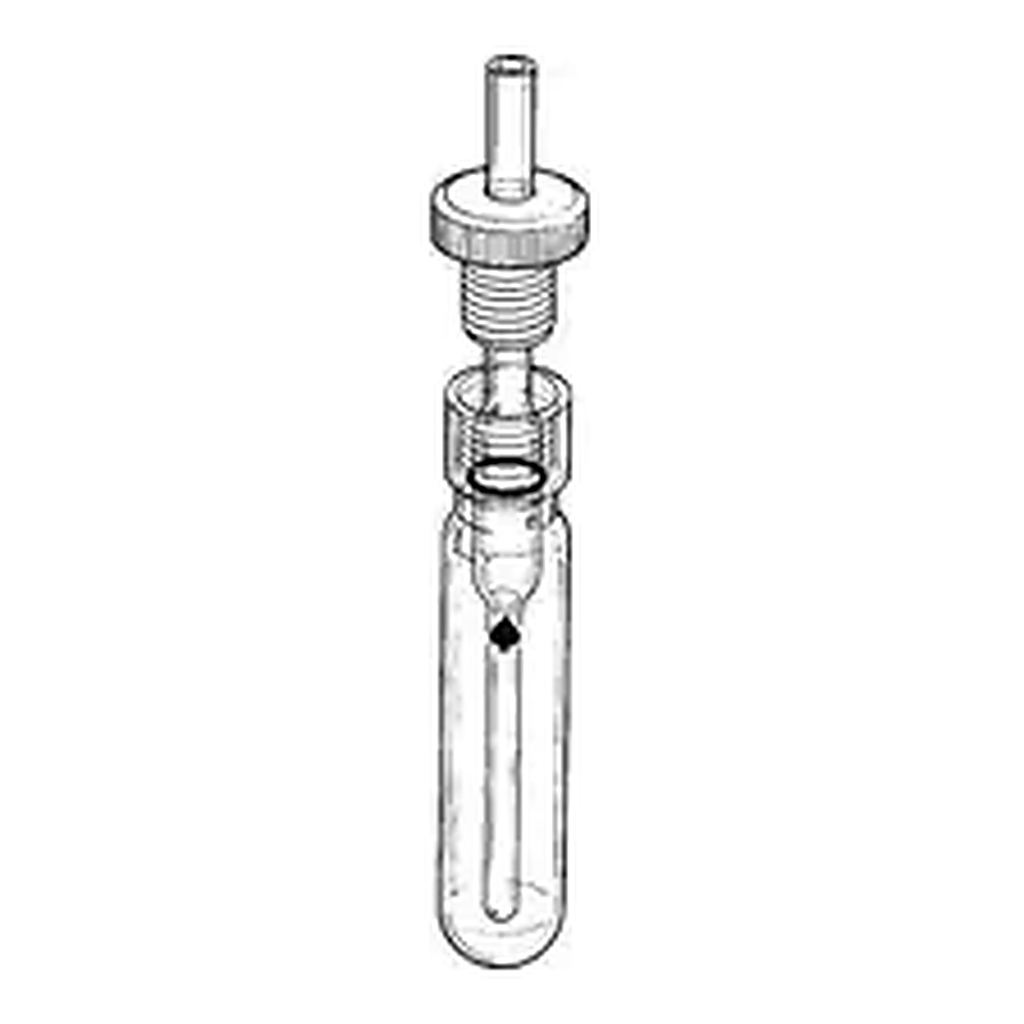

Glass plunger valve has a 5 mm I.D. thermowell for a thermocouple wire or sheathed probe up to 1/8 in. (3.2 mm) diam. Overall length of plunger valve is 190 mm. The thermowell length is 70 mm. Plunger has a hole on the side that, when positioned in relation to the O-ring seal, allows tube to be open or closed to the atmosphere (i.e. pull to close, push to open).

Complete item consists of tube with #15 Ace-Thred, PTFE bushing with FETFE® O-ring, and plunger valve with thermowell.

Replacement FETFE O-rings:

Ace-Thred #**Front SealBack Seal**
7 Z504661 Z504742
15 Z504858 Z505021
25 Z505056 Z505110

CAUTION: This glassware is not guaranteed against breakage caused by pressure or vacuum. These tubes should never be used if scratched or otherwise damaged.
