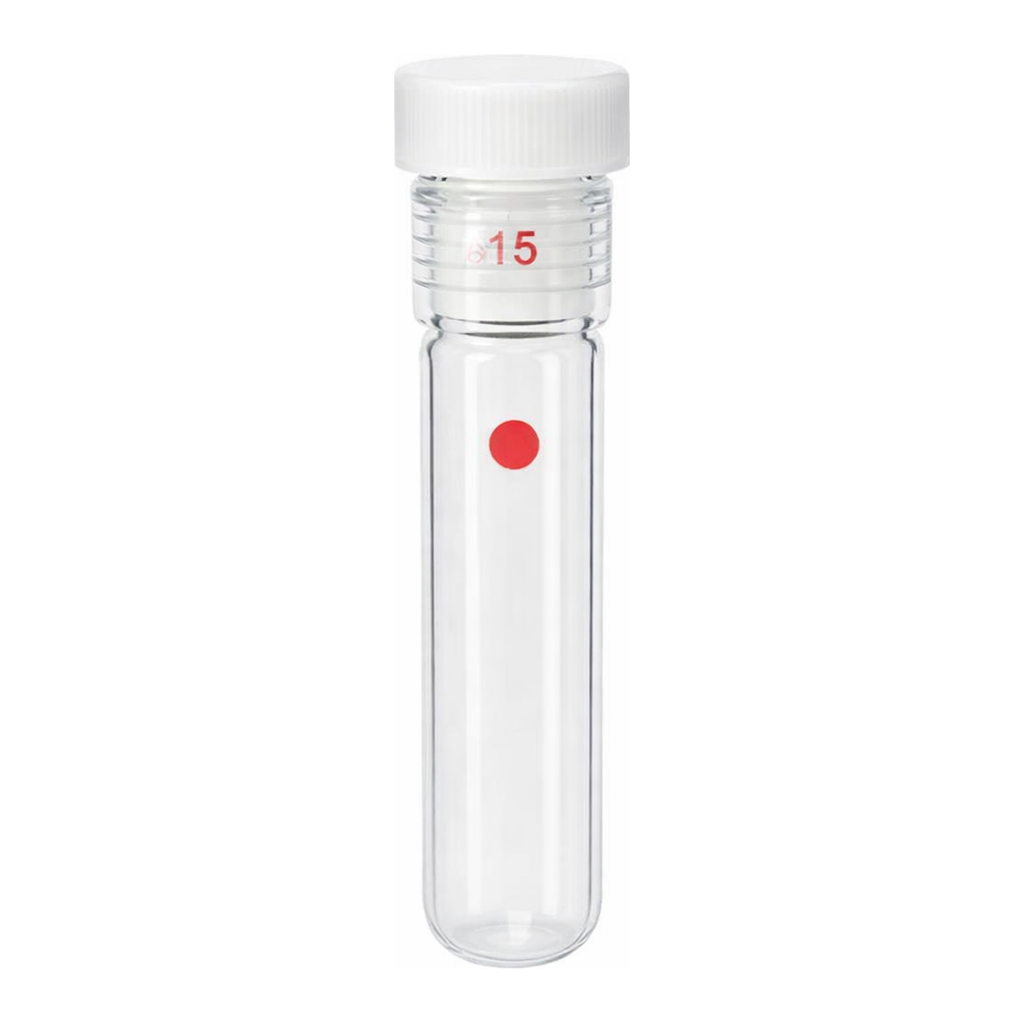

Merck Ace pressure tube

Ace pressure tube

bushing type, Front seal, capacity ~35 mL, L × O.D. 17.8 cm × 25.4 mm

material

PTFE cap
borosilicate glass tube
colorless tube
round bottom
screw top cap (plugseal)
white cap

무균

non-sterile

특징

bushing type Front seal
graduations: no
internal thread

manufacturer/tradename

Ace Glass 8648-07

길이 × O.D.

17.8 cm × 25.4 mm

용량

~35 mL

직경

25.4 mm

피팅

Ace-Thred for #15

binding type

non-treated surface

Heavy-wall borosilicate glass tubes are pressure rated to 150 psig. Useful for the polymerization and analysis of halogens by thermal decomposition in the presence of lime. Tubes are supplied complete with Ace-Thred PTFE bushing and FETFE® O-ring.

For pressure work, the Front seal bushing is recommended (allows O-ring to sit at narrow neck of tube, below the threads). Back seal bushing can also be used, if preferred (allows O-ring to sit on top of the tube against cap).

Replacement FETFE O-rings:

Front Seal:
Z504661 (Ace-Thred #7)
Z504858 (Ace-Thred #15)
Z505056 (Ace-Thred #25)

Back Seal:
Z504742 (Ace-Thred #7)
Z505021 (Ace-Thred #15)
Z505110 (Ace-Thred #25)

CAUTION: This glassware is not guaranteed against breakage caused by pressure or vacuum. These tubes should never be used if scratched or otherwise damaged.
