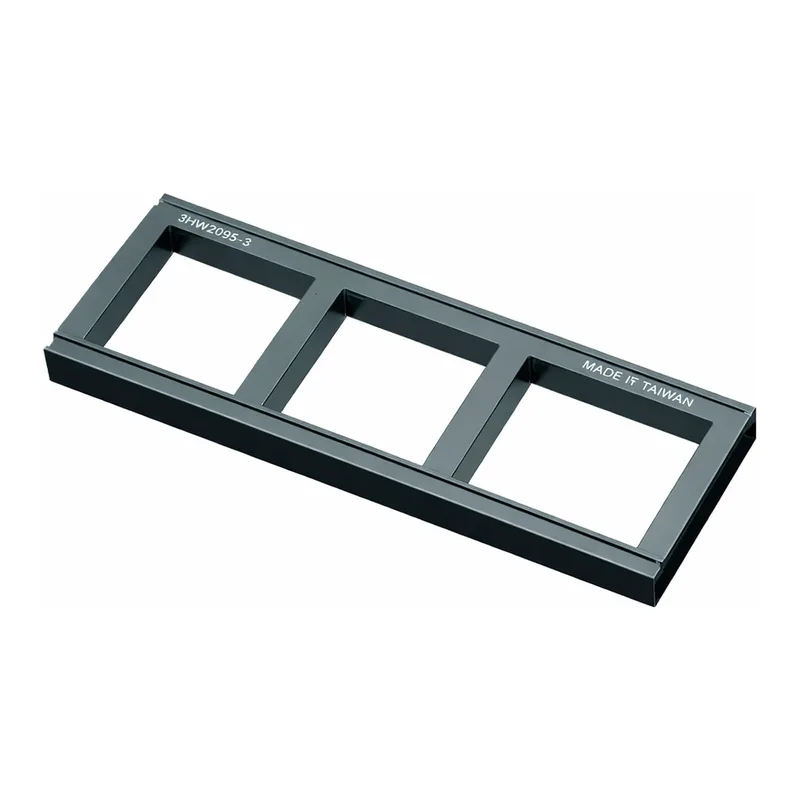

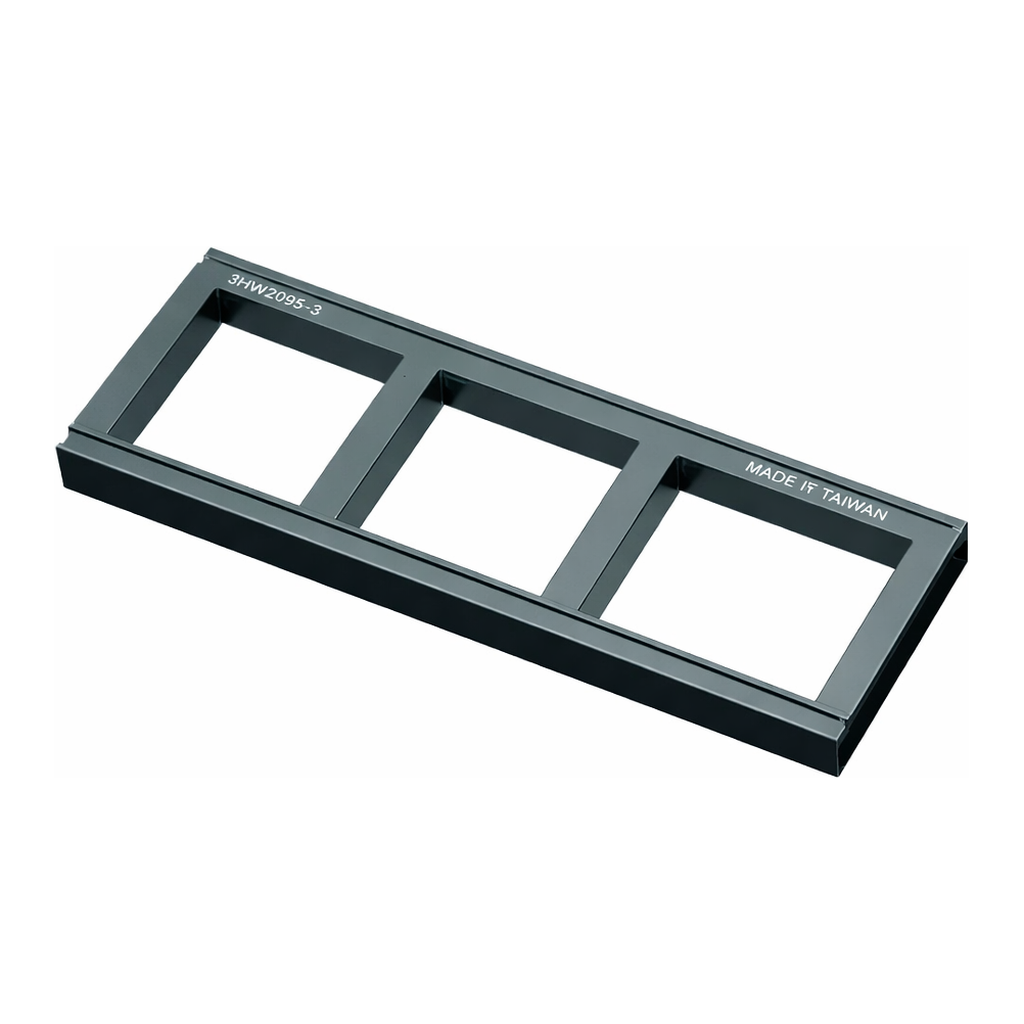

Merck Grace Bio-Labs ProPlate microarray system, slide module only

Grace Bio-Labs ProPlate® microarray system, slide module only

well size 3, L × W × depth 20 mm × 20 mm × 7.6 mm, without clips

material

black silicone (on Delrin)

특징

without clips

포장

pack of 10 ea

길이 × 너비 × 깊이

20 mm × 20 mm × 7.6 mm

웰 크기

3

Grace Bio-Labs ProPlate® multi-array chambers (microarray systems) are designed to be used with ONCYTE® nitrocellulose-coated slides. These multi-array chambers integrate microscope slide based microarray technology with high-throughput (HTS applications) microtiter plate processing. Up to 64 individual arrays can be assayed per slide.

Three or four slides fit into a tray (depending on clip choice). The resulting multi-array chamber tray set produces a modular plate with a standard microtiter plate footprint and well spacing allowing high-throughput robotic processing of up to 256 arrays.

Features:

• Up to 64 leak-proof wells on any slide surface without the use of adhesive
• Microtiter plate well spacing facilitates use with multichannel pipettes
• 7 x 7 mm square wells are ideal for high content arrays 5-350 ul well volumes accommodate small reagent and large wash volumes
