Ion Torrent™

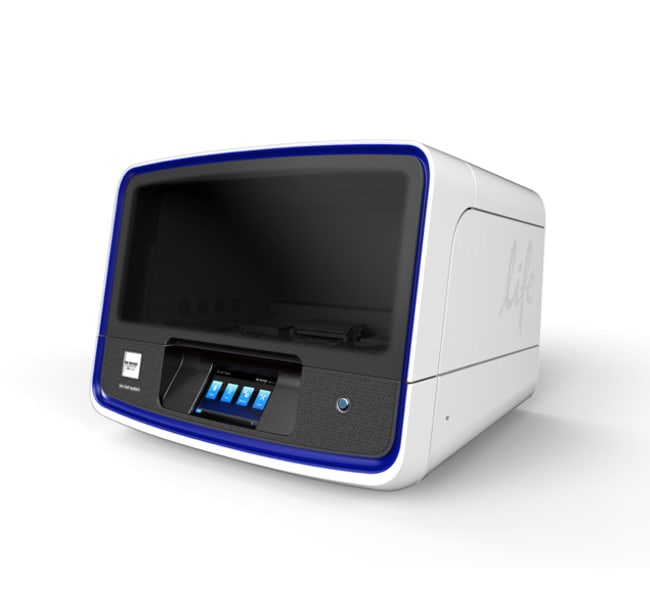

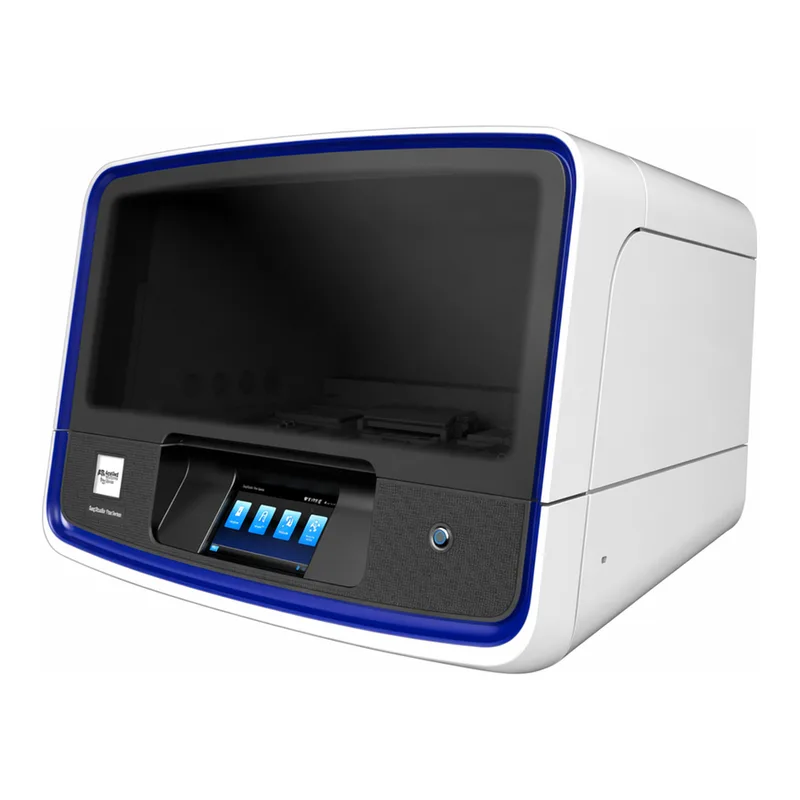

Ion Chef™ Instrument

The Ion Chef System is the next generation of workflow simplification products for the Ion GeneStudio S5 Systems.

The Ion Chef System provides automated library preparation, template preparation, and chip loading for users at any experience level. In less than 15 minutes of up-front hands-on time and with the use of pre-packaged library preparation reagent kits, the Ion Chef System provides a convenient walk-away workflow resulting in equalized, pooled libraries ready for templating. The automated workflow supports Ion AmpliSeq one- and two-pool designs. Visit www.AmpliSeq.com to design your own custom panels. After library preparation, less than 15 minutes of hands-on time is required to set up the Ion Chef System to perform fully automated template preparation, producing one or two chips ready for sequencing. Automating your sample preparation workflows on the Ion Chef System results in significantly higher productivity.

사양

고처리량 호환성High-throughput Compatible, Automated Protocols

용도(장비)Ion GeneStudio S5 System, Ion GeneStudio™ S5 System, Ion PGM™ System, Ion Proton™ System, Ion S5™ XL System

실행 시간Varies with Chip Type and Read Length Selected

치수28 x 22 x 28 in (71 x 55 x 71 cm)

전압100/240 V

전기 요구사항1350 W

제품라인Ion Chef™

운영 체제Ion GeneStudio™ S5 System, Ion Personal Genome Machine (PGM™) System, Ion Proton™ System

작동 환경20°C to 25°C

주파수50/60 Hz

칩 호환성Ion PI™ Chip v3, Ion 314™ Chip v2 BC, Ion 316™ Chip v2 BC, Ion 318™ Chip v2 BC, Ion 510™ Chip, Ion 550™ Chip, Ion 530™ Chip, Ion 520™ Chip, Ion 540™ Chip

전류14 A (Max.)

수량1 system

Unit SizeEach
