WIGGENS Rotary Evaporator – Strike 185
정밀한 온도 및 진공 제어를 갖춘 고성능 로터리 증발기. 대형 터치스크린으로 직관적 조작 가능. 자동 증류 프로그램으로 작업 효율 향상. 안전 기능 및 다양한 유리세트 옵션 제공. 연구소의 분리, 농축, 정제 작업에 최적.
- 카탈로그번호
- 4개 옵션
- 브랜드
- WIGGENS
- 판매단위
- set, ea
카탈로그
4개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다WIGGENS · WIGGENS Rotary Evaporator – Strike 185

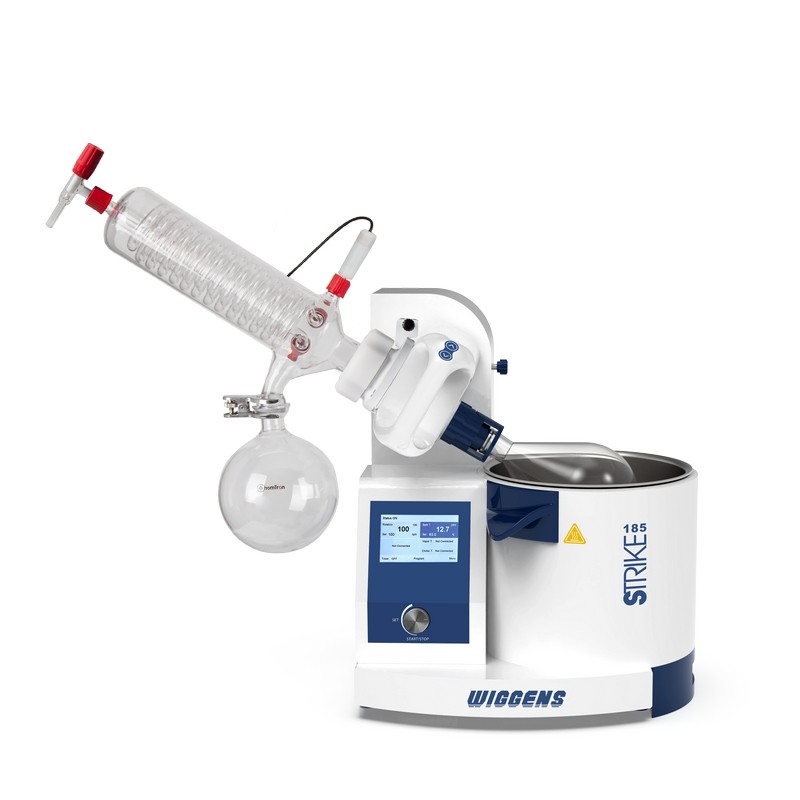

WIGGENS Rotary Evaporator – Strike 185
The Strike 185 Rotary Evaporator by Wiggens is an essential laboratory instrument designed for efficient solvent separation, concentration, and purification. This high-performance Rotavap offers precise control, reliable operation, and ergonomic design that enhances user comfort and workflow efficiency.
User-Friendly Interface
The Strike 185 features a large 4.3″ LCD touch screen for easy monitoring and control of all functions. Parameters can be adjusted via the touch screen or rotary knob, allowing quick modifications. Automated distillation programs integrate temperature and vacuum control to reduce process time.
Efficient Design and Versatile Features
The evaporation flask connects to the vapor tube via a coupling ring, enabling simple attachment and removal. The flask ejector design allows easy removal of stuck flasks.
- Sealing System: Vacuum-tight and corrosion-resistant PTFE and carbon graphite seals
- Mechanical Structure: Electric lifting device with adjustable stroke; rotation speeds up to 300 rpm
- Glassware Set: Includes 1000 ml evaporating and receiving flasks; optional accessories available
Safety and Customization
Safety is prioritized with built-in overheating and dry-running protection. In case of power failure, the electric lift automatically removes the flask from the heating bath.
- Heating Options: Water or oil bath, up to 185°C
- Programmable Conditions: Up to 9 programmable distillation settings

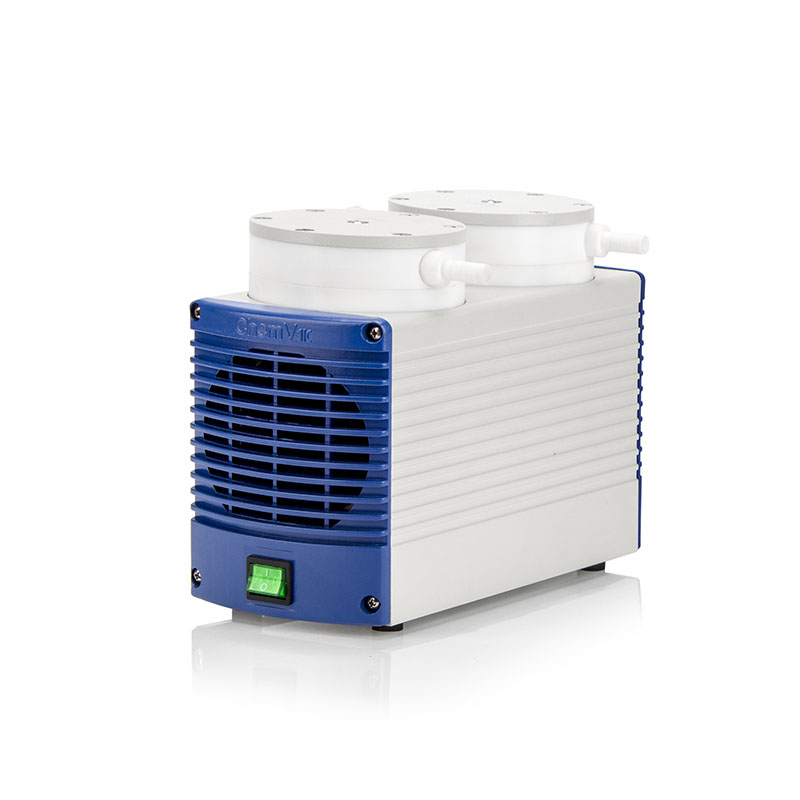

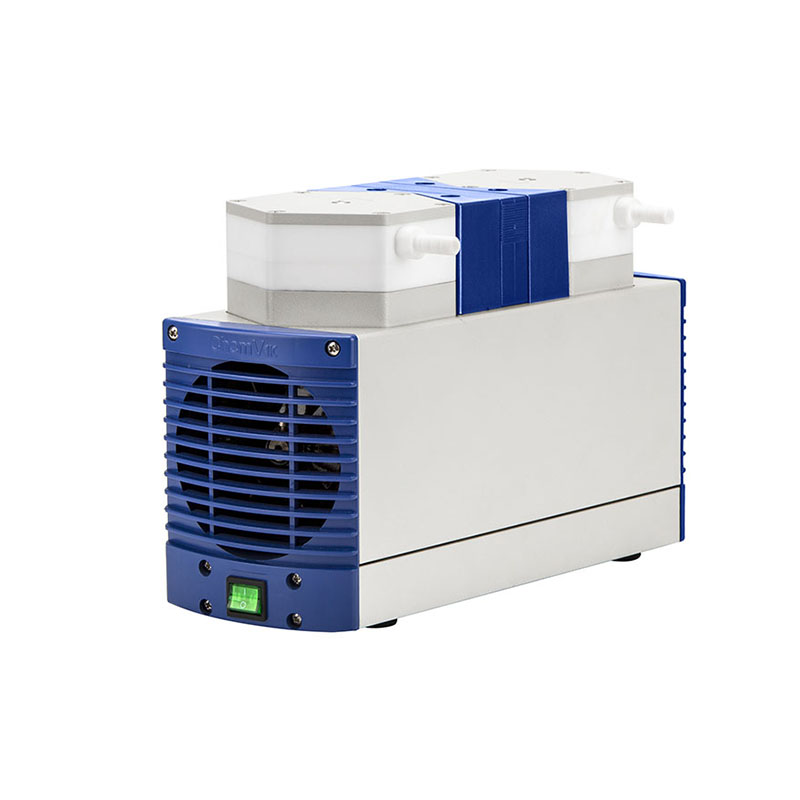

Vacuum Pump Options
Technical Specifications
| Specification | STRIKE 185 |
|---|---|

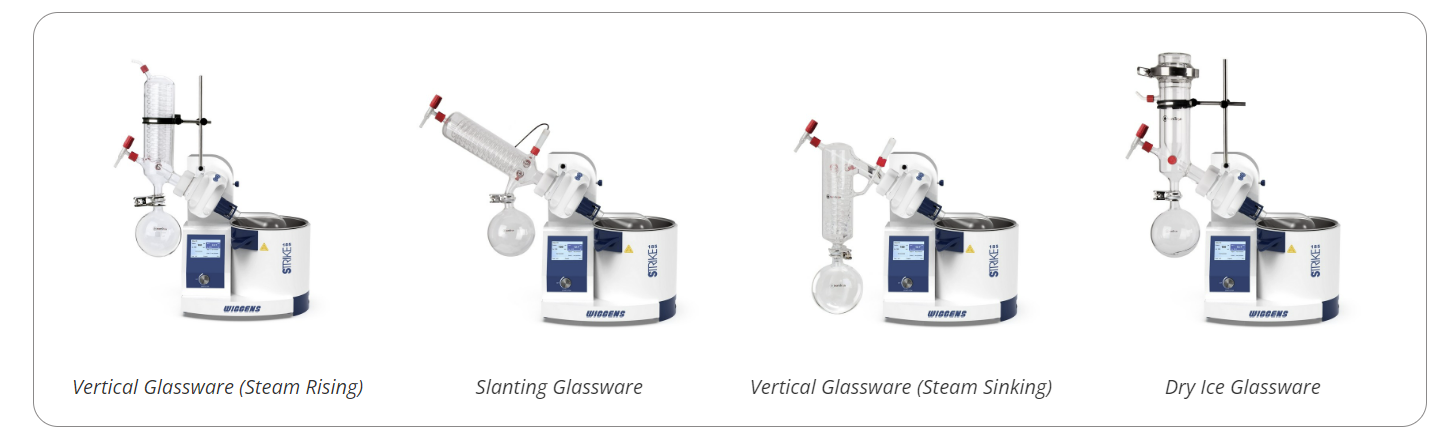

| Glassware | Slanting, vertical (vapor sinking/rising), dry ice condensation type |
| Glassware Material | Standard or plastic-coated |
| Rotation Speed | 20–300 rpm (DC motor) |
| Screen | 4.3″ monochromatic LCD touch screen |
| Sealing | PTFE and carbon graphite seals |
| Connection | Coupling ring and ejector |
| Bath Temperature | Up to 180°C (water or oil) |
| Bath Heater | 1400 W |
| Bath Capacity | 5 L |
| Temperature Stability | ±2°C |
| Bath Material | PTFE-coated molded aluminum tank |
| Horizontal Movement | 90 mm |
| Draining | Removable bath for emptying |
| Stroke Displacement | 13 cm, adjustable |
| Head Angle | 0–15° |
| Cooling Surface | 1500 cm² |
| Evaporating Flask | 1000 ml (optional 50–2000 ml) |
| Collecting Flask | 1000 ml (optional 250–2000 ml) |
| Weight | 26.5 kg (vertical), 26 kg (slanting) |
| Dimensions (H×D×L) | 650×410×890 mm (vertical), 790×410×700 mm (slanting) |
| Voltage | 230 V AC, 50 Hz |
| Options | Vapor temp probe, condenser cooling probe, vacuum pump, chiller |
| Protective Shield | Operation possible with or without shield |
| Other Features | Powered lift with safety release, quick start/stop control |
