Spotsee Tilt Indicator TiltWatch RFID
상품 옵션 정보 | |||||||
---|---|---|---|---|---|---|---|
카탈로그 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
24101RF | Spotsee 24101RF TiltWatch RFID cs | 재고문의 | cs | 0원 | - | 0원 |

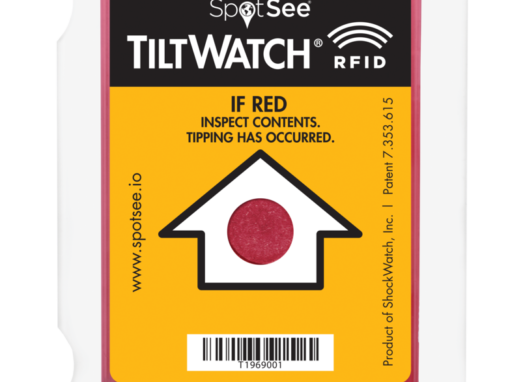

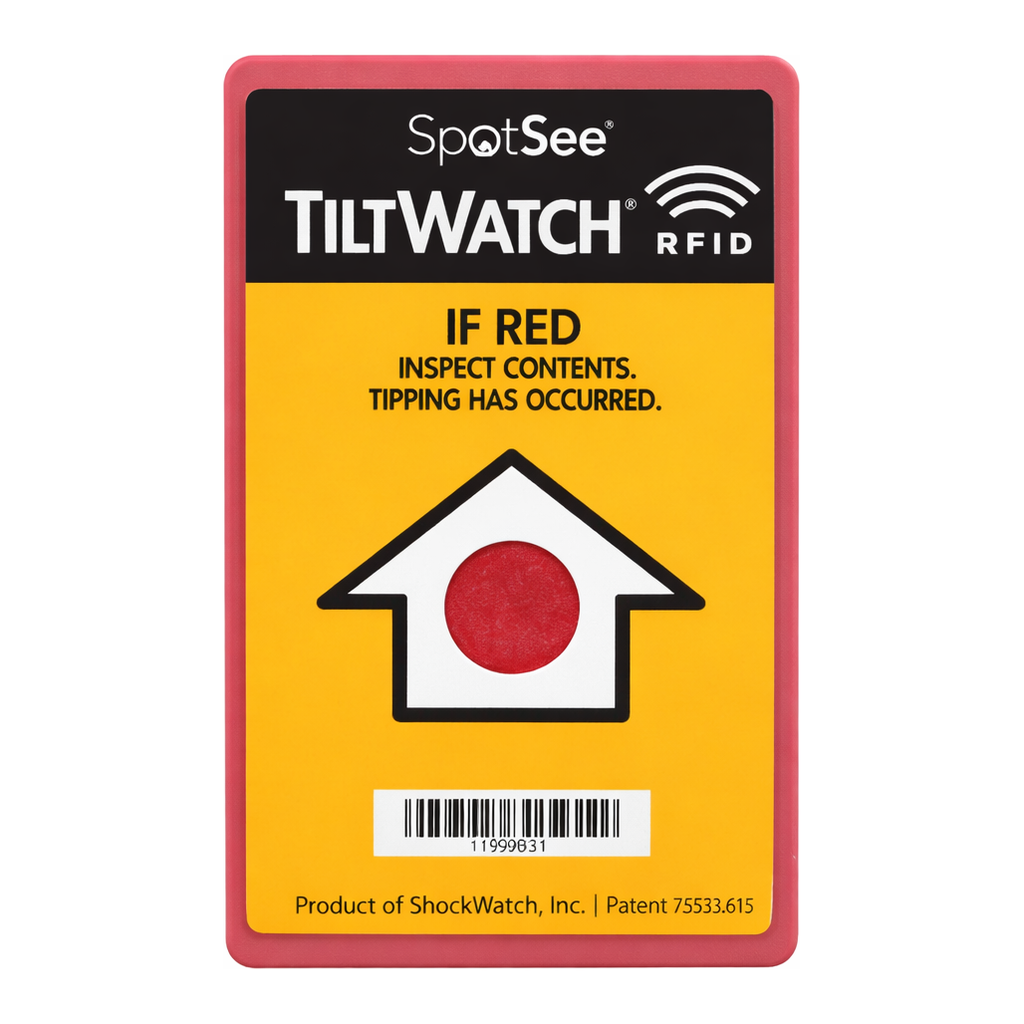

TiltWatch RFID
A tilt indicator holds handlers accountable for keeping goods positioned correctly. The SpotSee TiltWatch® RFID Indicator typically reduces damage resulting from mishandling by 40 – 60%. With the addition of RFID technology, the TiltWatch RFID alerts you if your product has been tipped and allows you to capture that data in your warehouse or shipping management systems. TiltWatch RFID delivers the benefits of a SpotSee monitoring program- damage reduction, supply chain process refinement, and cost reductions. TiltWatch RFID indicators are battery free devices that can be read with any standard UHF reader. Remove adhesive backing and apply to packaging.
TILTWATCH RFID FEATURES
- Acts as a visual deterrent to mishandling
- Expands the utility of RFID with damage monitoring
- Reduces receiving times and isolates items that need inspection
- Helps identify trouble spots in the supply chain – from production to transportation to storage
Specifications
Temperature Range | -40°C to 60°C |
Monitoring Range | Single plane |
Size | 74.27 mm x 60.31 mm x 5.29 mm |
Weight | 13.94 g |
Shelf Life | 2 years |
Installation | Pressure-sensitive adhesive or holes to accommodate screws, nails or staples |
Activation Angle | 80° ±5° from vertical |
Adhesive | 2 mil high tack acrylic |
Humidity Tolerance | 5% to 99% noncondensing |
Temperature Tolerance | -40°C to 60°C |
Composition | Rigid polystyrene housing with non-magnetic steel indicator |
Arming | Arms coincident with removal of adhesive liner |
Adhesive Shelf Life | 2 years |
