The innovative Cooled Carousel 6 Plus allows chemists to perform sub-ambient reactions in a range of flasks from 5 ml to 250 ml with the option of an inert, moisture-free atmosphere.

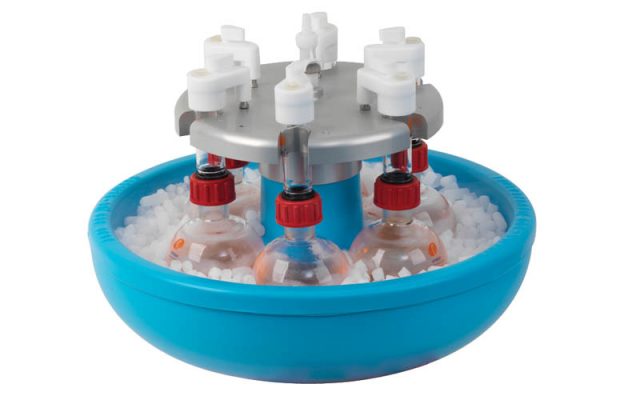

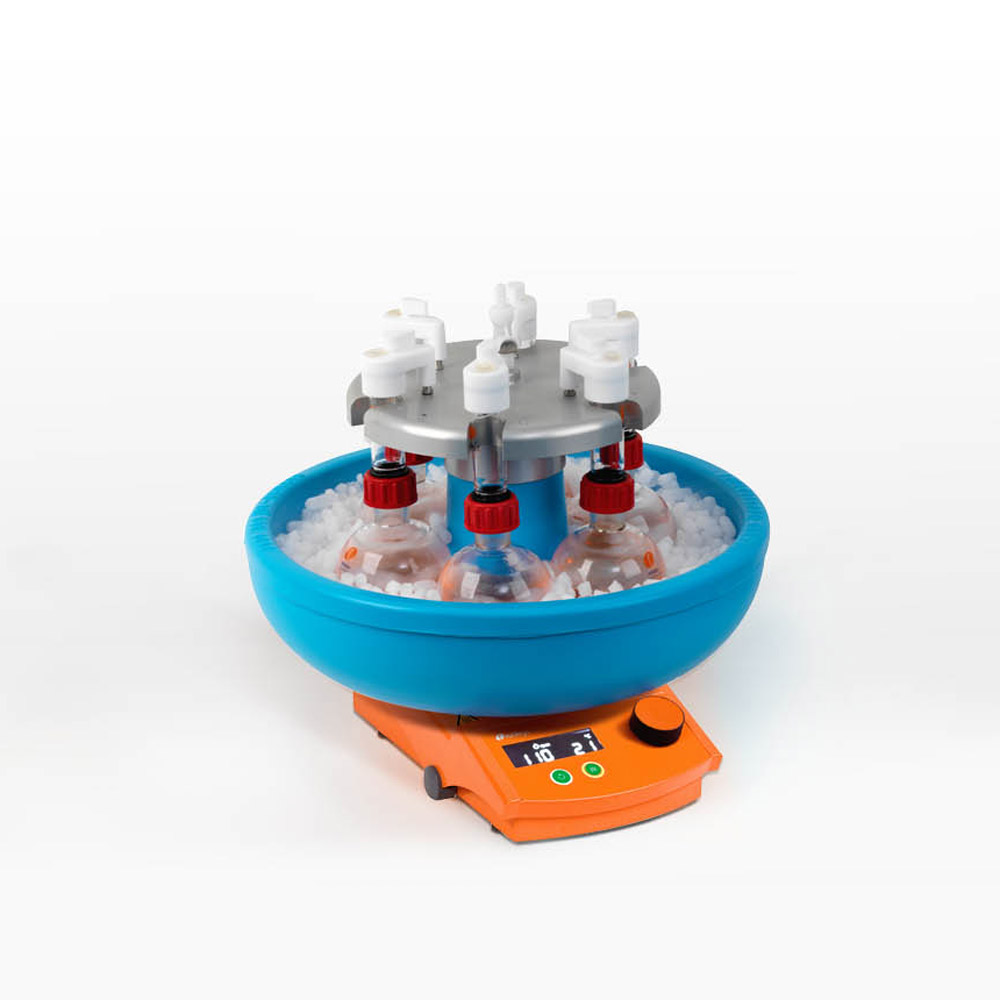

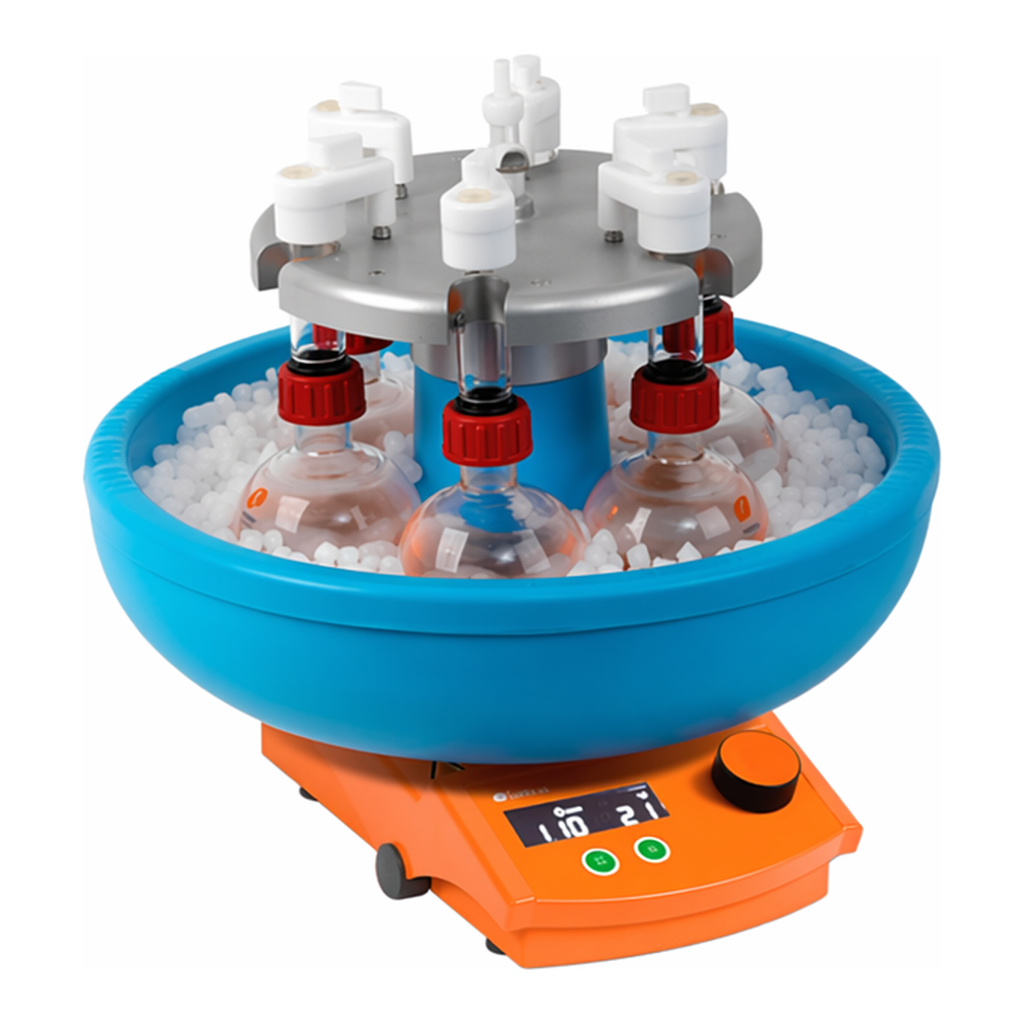

Cooled Carousel 6 Plus Reaction Station

  • Simultaneously performs up to six cooled and stirred reactions to -78 ˚C
  • Powerful, even stirring – reservoir fits on to a Carousel stirring hotplate
  • Robust HDPE cooling reservoir is compatible with a wide range of cooling mixtures, including dry-ice/acetone for manually controlled cooling from ambient down to -78 ˚C
  • Round design makes all reaction flasks visible and allows easy addition of reagents and solvents, with no need to lean into the fumehood

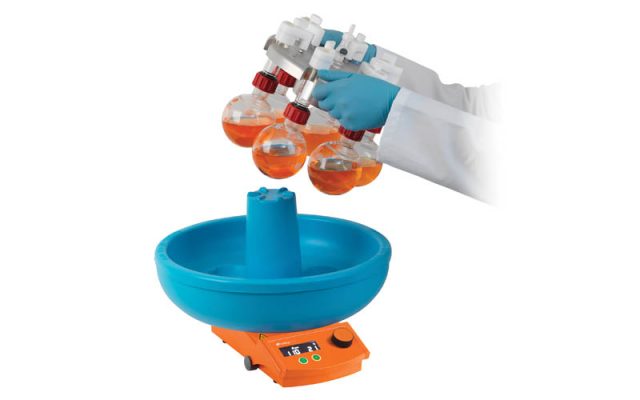

Cooled Carousel 6 Plus Reaction Station

  • Insulated foam core maintains low temperatures for long periods, whilst protecting the stirrer from freezing. Also reduces condensation and ice formation on outer surfaces
  • HDPE lid keeps your reaction cooler for longer, minimises ice formation on your flasks (maintaining visibility of the contents) and prevents spitting from the cooling mixture
  • The robust HDPE reservoir is virtually unbreakable

The Cooled Carousel 6 met its requirements well. The outer of the plastic bath remained at a hand-touchable temperature throughout all experiments.Sutherland Research Group, Aston University

  • Robust HDPE cooling reservoir is compatible with a wide range of freezing mixtures including dry-ice/acetone for manually controlled cooling from ambient to -78 ˚C
  • Utilises the single rotating magnetic field of the hotplate stirrer to stir all the positions evenly and powerful
  • Insulated foam core maintains low temperature for long periods, whilst protecting the stirrer from freezing. Also reduces condensation and ice formation on outer surfaces
  • Chemically-resistant Easy-On PTFE caps feature a quick-thread for fast attachment to the glass tubes and push-on connections to the stainless steel gas outlets
  • No electrical or moving parts ensures maintenance free operation. Easy to set up with minimal training time
  • Carousel Tech Stirring Hotplate - powerful stirring with digital control
  • Compact size has a small benchtop footprint and is easy to store
  • Fits on all Carousel Stirring Hotplates
  • Round design makes all reaction flasks visible; with no need to lean into the fume cupboard
  • Central inlet/outlet for vacuum and gas, combined with a radial gas distribution system and gas-tight PTFE caps allow reactions under an inert atmosphere
  • Rare earth elliptical PTFE stirring bars provide powerful stirring and a deep vortex

RR99947 Cooled Carousel 6 Plus (Reservoir, Head, Stand + Cover)

RR99501 Cooled Carousel 6 Plus Cooling Reservoir
RR99948 Cooled Carousel 6 Plus Head
RR99503 Cooled Carousel 6 Plus Stand
RR99515 Cooled Carousel 6 Plus Cover (with gas connectors)

RR99905 Digital Thermometer (-250 °C to +400 °C) and 200 mm Probe
RR99906 Digital Thermometer (-250 °C to +400 °C)
RR99907 200 mm Temperature Probe
RR99908 Dry Ice Scoop
RR99909 Cold Temp. Apron 1060 mm long Waterproof
RR99910 Protective Faceshield
RR98024 Protective Cold Temperature Gloves

RR71505 Cooling Protection Kit
Comprising of the following:
1 x RR99909 Cold Temp. Apron 1060 mm long Waterproof
1 x RR99910 Protective Faceshield
1 x RR98024 Protective Cold Temperature Gloves

Click to download these resources

[

Carousel 6 Reaction Station

](https://www.radleys.com/resources/carousel-6-plus-and-cooled-reaction-station/)[Read more](https://www.radleys.com/resources/carousel-6-plus-and-cooled-reaction-station/)

[

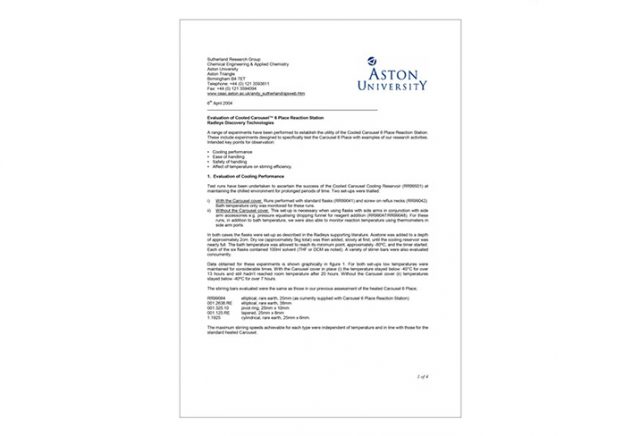

Cooled-Carousel-6-Elveluation

](https://www.radleys.com/resources/evaluation-of-cooled-carousel-6-reaction-station-2/)[Read more](https://www.radleys.com/resources/evaluation-of-cooled-carousel-6-reaction-station-2/)

Carousel-and-cooled-Carousel-Plus-System

](https://www.radleys.com/resources/carousel-and-cooled-carousel-6-plus-system-guide/)[Read more](https://www.radleys.com/resources/carousel-and-cooled-carousel-6-plus-system-guide/)

[

Cooled Carousel 6 Plus Instructions

](https://www.radleys.com/resources/cooled-carousel-6-plus-instructions/)[Read more](https://www.radleys.com/resources/cooled-carousel-6-plus-instructions/)

[

International Product Guide

Radleys International Product Guide

](https://www.radleys.com/resources/radleys-international-product-guide/)[Read more](https://www.radleys.com/resources/radleys-international-product-guide/)

[

Carousel 6 Plus Instructions

](https://www.radleys.com/resources/carousel-6-plus-instructions/)[Read more](https://www.radleys.com/resources/carousel-6-plus-instructions/)

Lundbeck Carousel 6 and 12

University of Sussex Carousel 6

ABAChem Carousel 12

Fat Duck Restaurant Carousel 6

Shanghai Institute of Pharmaceutical Industry C6 Tornado.jpg

Huazhong University of Science and Technology C6

Institute of Petrochemistry Tornado

Henan Carousel 6 and 12

Achieving the most efficient and convenient experiments

Parallel Reaction Stations Carousel 6 and 12 Plus

Read more

Boosting reproducibility in the lab

Boosting reproducibility in the lab

Read more

How do you increase the productivity of your chemistry?

How do you increase the productivity of your chemistry?

Read more

Choosing the right stirring bar

Tips for choosing the right stirring bar for your experiment

Read more

Easy-On PTFE reaction caps

Easy-On PTFE caps

The PTFE caps are an essential component of the Carousel 6 Plus. Manufactured from a chemically-resistant PTFE the caps are attached to the reflux tube/flask using a quick-thread and feature an Easy-On push connection to the radial gas system. The caps include an on/off valve for isolation and removal from the inert gas system. A replaceable silicone Suba-Seal septum allows the addition or removal of reagents or samples using a suitable syringe.
More info

Carousel 6 Plus Glassware

Wide range of flask sizes

Standard Flasks

  • Choice of sizes: 5 ml, 10 ml, 25 ml, 50 ml, 100 ml, 170 ml and 250 ml
  • Flasks feature a B24/B29 Rodaviss joint for connection to the detachable Reflux Tube
  • Reflux Tubes feature a quick-thread for an excellent gas tight seal up to 1 psi
  • Optional single piece 250 ml Long Neck design
    More info

[

](https://www.radleys.com/range/carousel-6-plus-reaction-station/)[

Carousel 6 Plus Accessories

](https://www.radleys.com/range/carousel-6-plus-glassware-and-accessories/)[

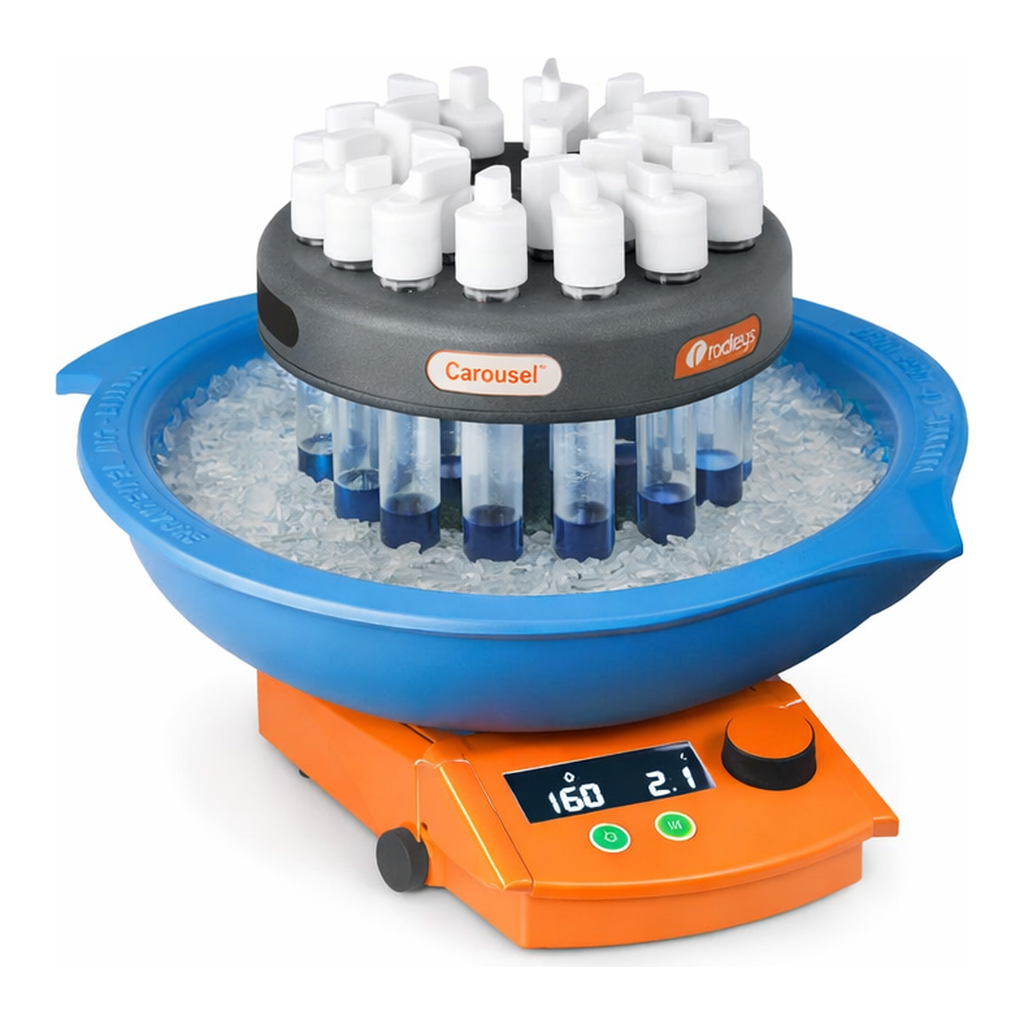

Cooled Carousel 12
