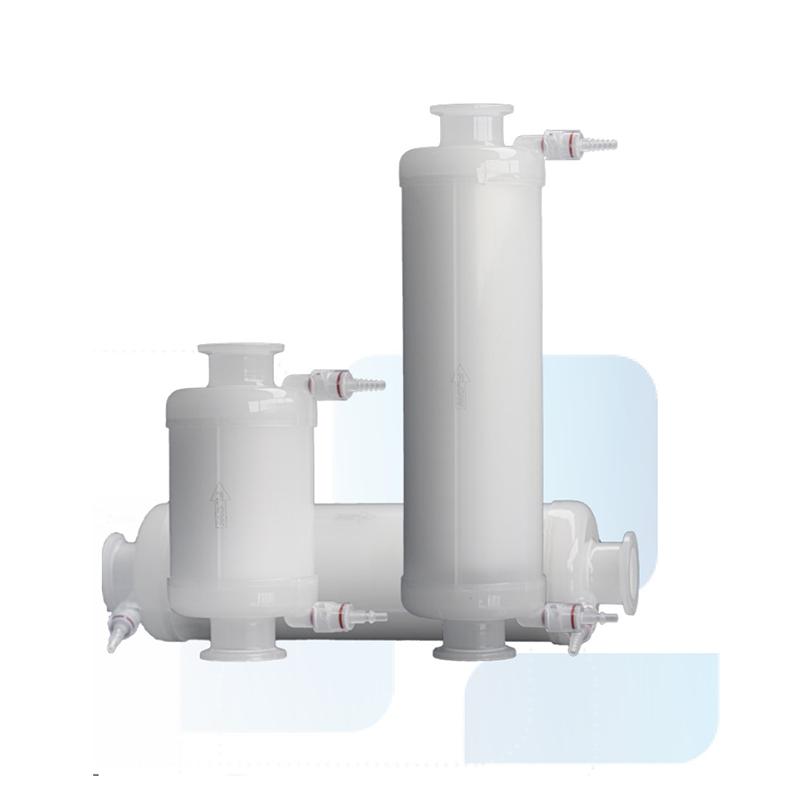

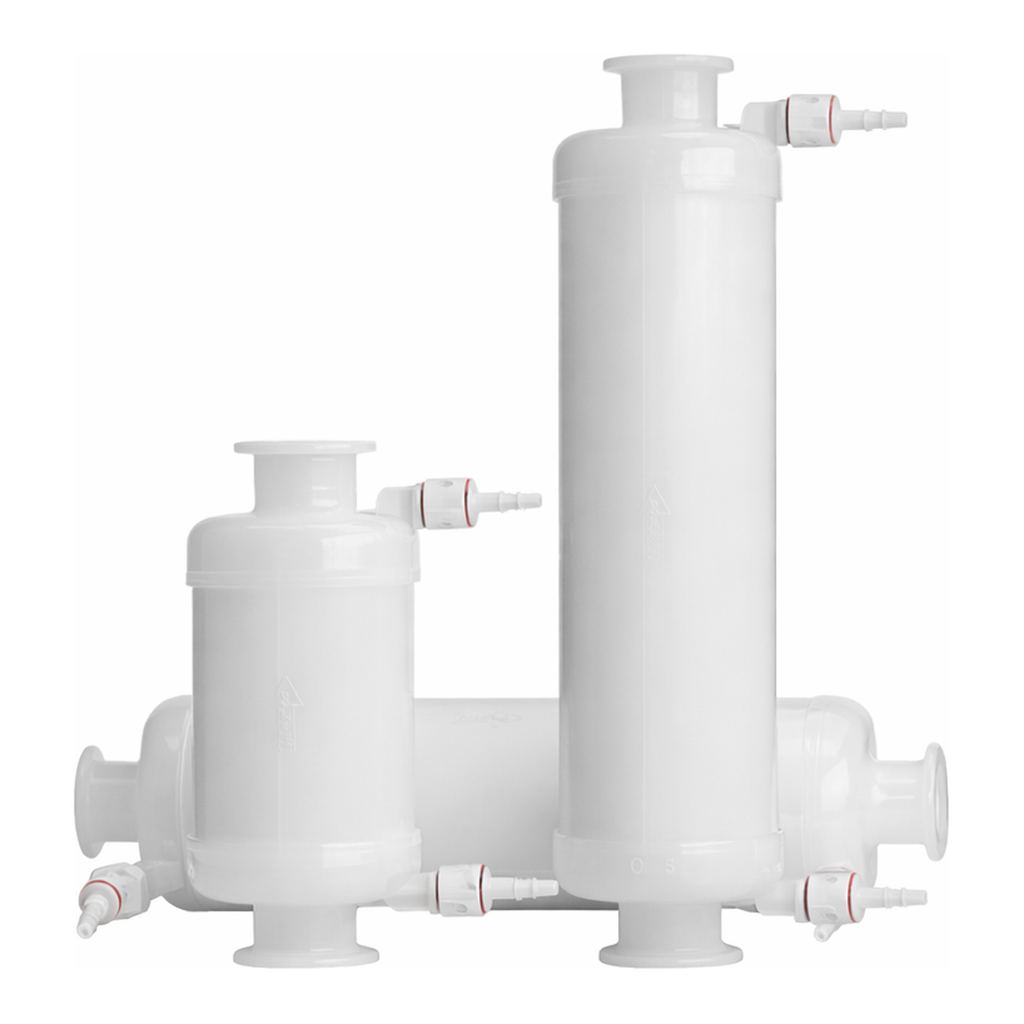

GVS Capsflow PES CIK Series

CIK series - Asymmetrical PES membrane General Application Capsule Filters

Capsflow CIK series is family of full size capsule filters with Staubli connection at the vent, which enables in-line integrity test.
The PES membrane capsule utilizes single layer hydrophilic polyethersulfone membrane. lt offers broad chemical compatibility, high flow rate and low extractable.
Polyethersulfone is particularly suited for the filtration of products that contain substances that adsorb to the media. The lower binding characteristics of polyethersulfone make it a good choice for filtration of valuable protein solutions such as vaccines and biologicals

Typical Applications

• Cell Culture Media
• Large Volume Parenterals (LVP’s)
• Pharmaceutical Bulk Chemical Solutions
• Diagnostics
• Blood and Serum Fractions
• Purified Water
• Beer, Wine and Spirits
• Juice & Soft Drinks
• Bottled Water

Vent/Drain Option

• Staubli
• Stepped hose barb

Fitting Option

• 1.5”TC
• 1/2” Hose Barb
• 3/4” Hose Barb

Maximum Operating Conditions

• Maximum opereting pressure
=> Liquid: 5 bar (80psi) at 77°F/25°C
=> Gas: 3.5 bar (60psi) at 77°F/25°C
• Maximum Operating Temperature: 80 °C
• Autoclave at 125 °C, 30 minutes and 25 cycles
• Autoclave at 135 °C, 30 minutes and 15 cycles

Toxicity

All materials meet the specifications far biological safety per USP Class VI -121C° far plastics.

Filter Area

• 2.5’’ = 1400 cm2
• 5’’ = 2500 cm2
• 10’’ = 6000 cm2
• 20’’ = 12000 cm2
• 30’’ = 18000 cm2
• 40’’ = 24000 cm2

Construction of Materials

• Filter Media: Polyethersulfone
• Media Support: Polypropylene
• End Caps: Polypropylene
• Inner Core: Polypropylene
• Outer Cage: Polypropylene
• Sealing Method: Thermal Bonding

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR. Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011.

Cartridge Integrity Test Specifications

Water wetted membrane

Ordering Information
