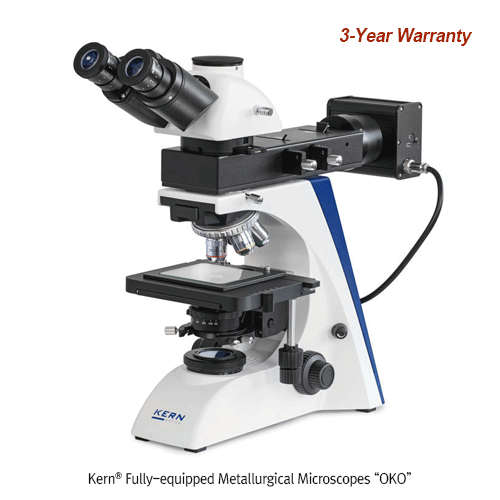

Kern® Fully-equipped Metallurgical Microscopes “OKO”, for Testing Metals and Analyzing Surface (50× ~ 500×)
고성능 금속 현미경
With refracted and transmitted LED illumination, height-adjustable 1.25 Abbe condenser.
Supplied by Kern® in Germany
NEW
3-Year Warranty
PROFESSIONAL LINE MET
The fully-equipped refracted and transmitted light microscope for numerous applications in metallurgy.
Features
- Professional, versatile metallurgical microscope for testing metals and analyzing surfaces
- KERN OKO 178 combines LED incident and LED transmitted illumination
- Height-adjustable 1.25 Abbe condenser (centrable) and field diaphragm for complete professional Köhler illumination
- Integrated open mechanical angle table
- Simple polarising unit (analyser and polariser) included
- Wide range of accessories (eyepieces, objectives for longer working distances) available
- Protective dust cover, eye cups, and multi-lingual user manual included
- C-Mount adapter required for camera connection (see model outfit list for details)
Technical Data & Applications
| 항목 | 내용 |
|---|---|
| Optical System | Infinity Optical System |
| Nosepiece | Quintuple |
| Viewing Head | Siedentopf 30° Inclined / 360° Rotatable |
| Diopter Adjustment | Both-sided |
| Dimensions | 550 × 200 × h460 mm |
| Net Weight | Approx. 14.5 kg |
| Scope of Application | Metallurgy, Material Testing, Quality Assurance |
| Sample Types | Opaque and thick samples, workpieces (surfaces, fold lines, coatings) |
STANDARD SPECIFICATIONS
| Cat. No. | Tube | Eyepiece | Objectives Quality | Objectives | Illumination | Price (₩) |
|---|---|---|---|---|---|---|
| KE.OKO.178 | Trinocular | HWF 10×/Ø22mm | Infinity Plan | 5× / 10× / 20× / 50× | 5W LED (Incident + Transmitted) |
Symbols:
360° | TRINO | ABBE | HWF | PLAN | INFINITY | SCALE | POLAR | 230V
