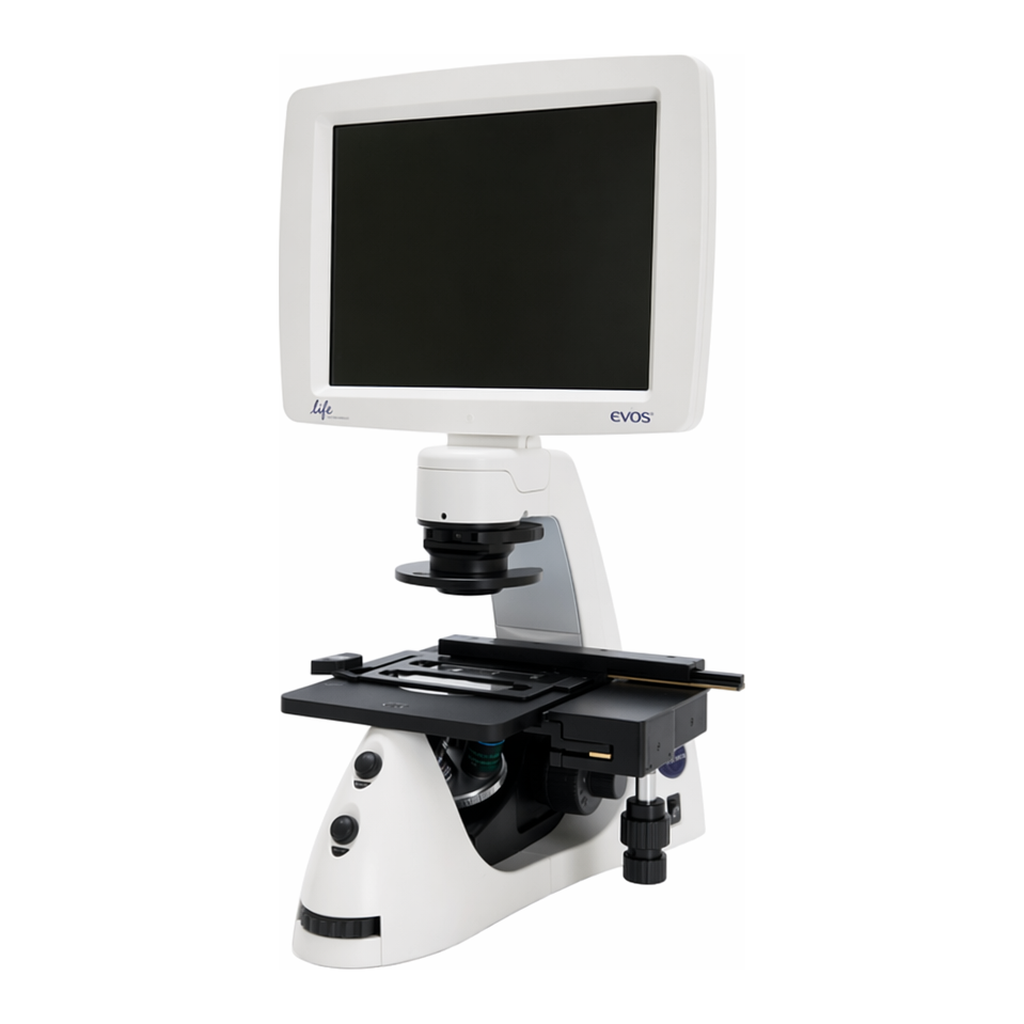

EVOS™ FL Imaging System

The EVOS FL Imaging System is a fully integrated, digital, inverted imaging system for four-color fluorescence and transmitted-light applications. It is powerful, yet easy-to-use and delivers high-definition images with exceptional convenience. The unique light cubes, sensitive camera, and precision-engineered optical system make the EVOS FL system ideal for both demanding and routine fluorescence imaging applications.

The EVOS FL Imaging System offers you these important advantages:

• Easy installation; no maintenance, assembly, alignment, or calibration
• For four-color fluorescence and transmitted light applications
• Five-position objective turret with front controls
• On-board software
• All-in-one design: digital camera, precision optics, LCD display, and USB storage

Fully Integrated Imaging System
The EVOS FL system represents a new concept in transmitted light inverted microscopy. It is a fully integrated imaging system that combines precision optics, a 15` high-resolution LCD display, and a highly sensitive Sony ICX445 monochrome CCD camera (1280 x 960 pixel resolution, 1.3 Megapixels). Images are seamlessly acquired through the intuitive user interface using a mouse for easy control. Monochrome cameras are commonly used for high-performance fluorescence applications and provide the best sensitivity for detection of faint fluorescence signals. Color cameras, as on the EVOS FL Color System, have lower fluorescence sensitivity but have the advantage of being able to differentiate structures by color in transmitted light (e.g., imaging stained tissue samples).

Compare cell imaging systems >

Versatile and Highly Configurable
The EVOS FL system features an easily accessible 5-position objective turret and a 3-position condenser turret. The 4 fluorescence light cubes are lever-actioned for rapid and easy selection. The optical system can be configured to best meet your needs using our full range of high-quality objectives from 2x to 100x magnification. Lighting settings are automatically adjusted to match the objective magnification. The EVOS FL system features a mechanical stage with X/Y-axis fine-positioning using control knobs conveniently located on the left side and the front of the stage. The stage accommodates EVOS vessel holders that provide a perfect fit for most vessel types and sizes. Interchangeable stage plates accommodate most vessel types and sizes, including flasks, Petri dishes, multi-well plates, and slides.

Smart LED Illumination Technology
All EVOS fluorescence imaging systems utilize our unique, proprietary LED light cubes. This world-leading light engine outputs remarkable intensity over a short light-path that delivers superior fluorophore excitation. Each light cube contains a precisely matched set of optical components to optimize the position, evenness, and intensity of the light beam. Digitally controlled LED light sources allow adjustment of illumination levels, dramatically improving control over photobleaching. Hard-coated filters give sharper edges and significantly higher transmission efficiencies than traditional soft-coated filters.

Integrated Software
The on-board computer makes the EVOS FL system easy to run and use, and the intuitive, comprehensive software facilitates both image acquisition and analysis. Modules include time-lapse acquisition, manual-assist cell counting, and image review. Saved user settings work in conju

사양

ColorTransmitted Light

Data OutputBMP Files,JPG Files,PNG Files,TIFF Files

Detection MethodFluorescent

Dimensions36 cm (14 in) (W) x 58 cm (23 in) (H) x 47 cm (19 in) (D)

Display Interface15-inch color monitor,Adjustable tilt

For Use With (Equipment)Fluorescence Microscope

FormatSpecific Holder Attachments

Frequency50⁄60 Hz

Input Voltage100-240 VAC

Objectives5 Objective Turret

Product LineEVOS®

Product Size1 each

StageMechanical stage with X-Y axis fine-positioning controls

Weight15.3 kg (33.7 lbs)

Unit Size1 each
