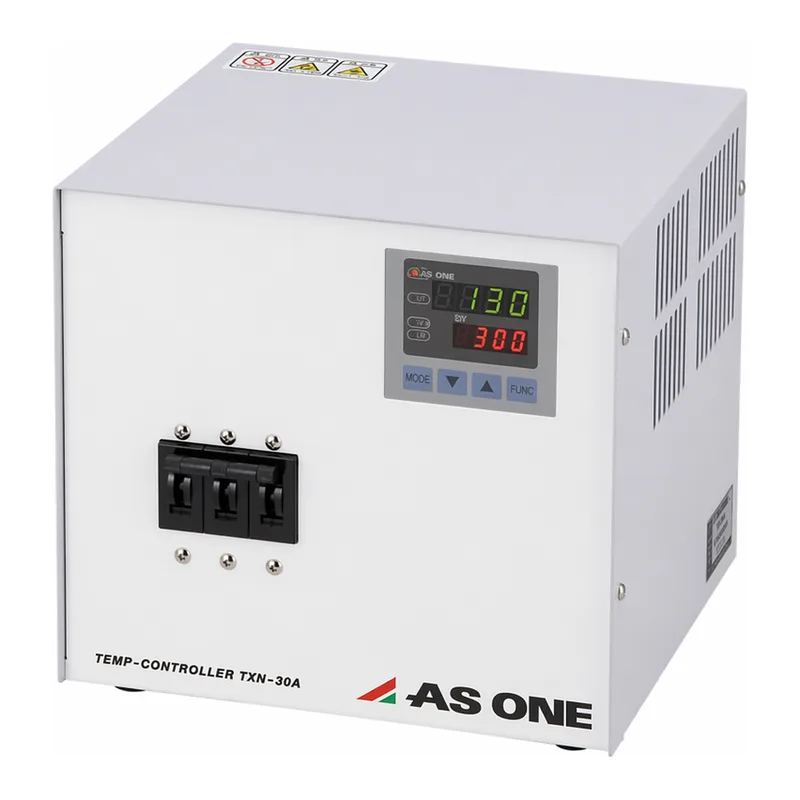

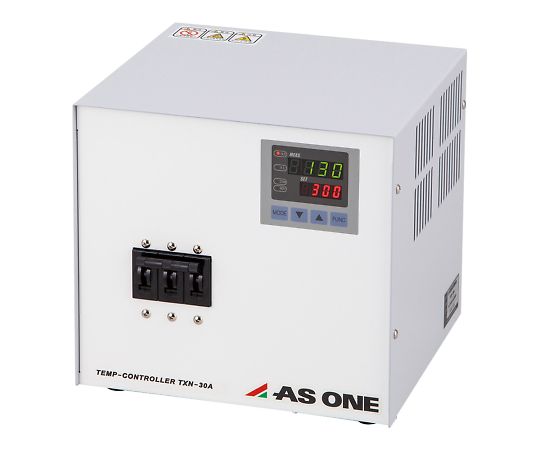

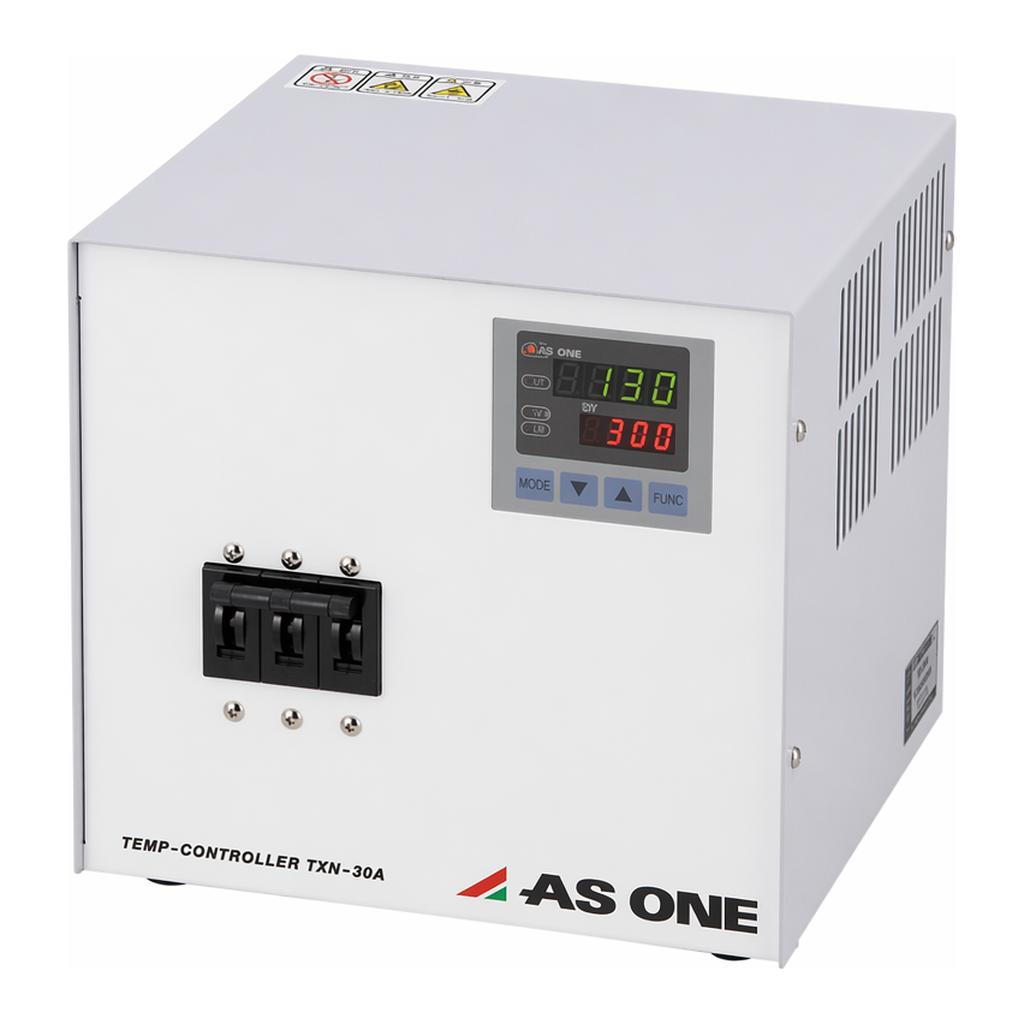

AS ONE three-phase 200 V temperature controller　TXN-30A

AS ONE three-phase 200 V temperature controller　TXN-30A

Spec

• temperature settings range (degrees C) : Pt 100 Ω/0.0 to 200.0 , K class thermocouple/0 to 500
• Temperature Control Method: PID Control, SSR Output
• Input Voltage: AC100V/200 VAC/three-phase 200 V
• Output capacity: AC100V/AC 200 V/three-phase 200 V 30 A (50/60 Hz)
• Alarm Output: Contact Output AC100V/200 VAC 2.4 A MAX
• Compatible Sensor: K class thermocouple, Pt 100 Ω
• Timers: Type/Auto start/Auto stop/SV start, Configurable time/1 minute, to 99 hours 59 minutes
• Temperature Display Accuracy: ± 2 ° C or ± 0.3% + 1 digit, whichever is larger (Time in K class thermocouple)
• power cord : None (Connect to the power supply terminal of the rear terminal block)
• Connection Terminal Block: Sensor/M3, power supply Output/Alarm/M5
• safety device: circuit breaker (40 A)
• main unit size : 230 x 215 x 211 mm
• Weight: about 4.1 kg
• environment used : Temperature/0 to 35 ° C , Humidity/35 to 85 %RH (noncondensing)
• *Sensor is not included. Please choose the shape and Type according to the application (Connector type is not allowed).
• *power cord is not included. Adjust the voltage according to your power supply voltage.
