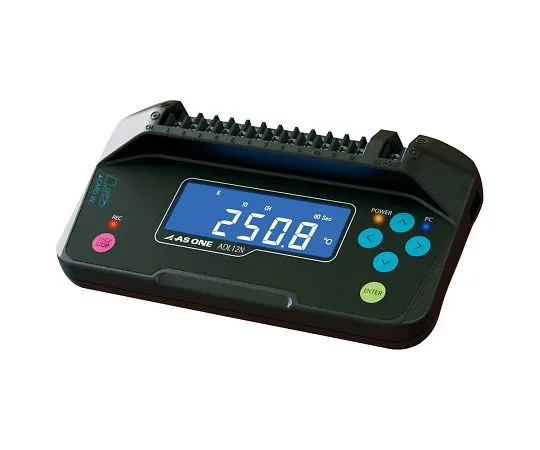

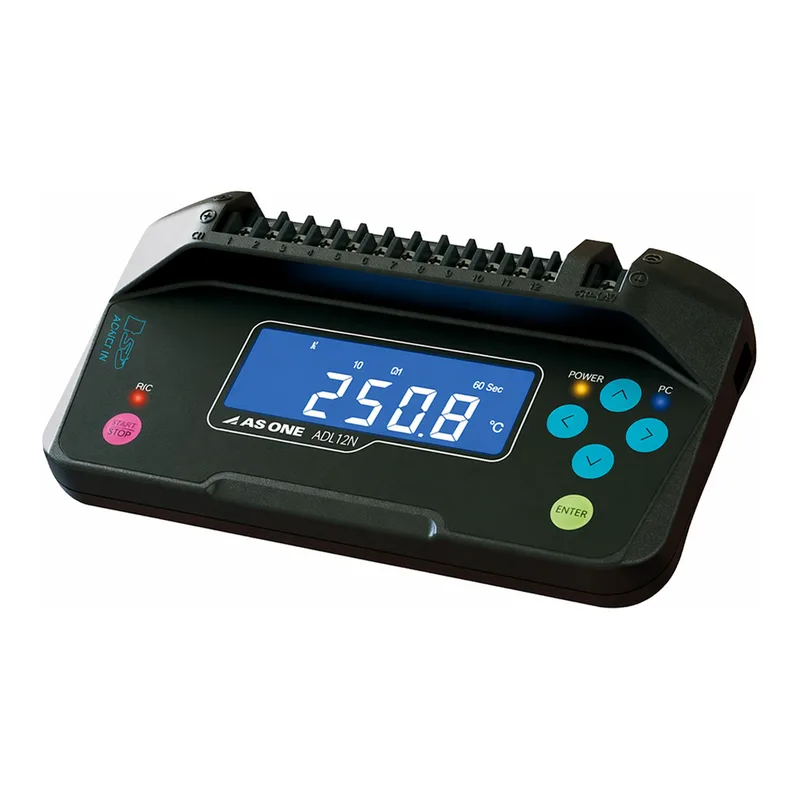

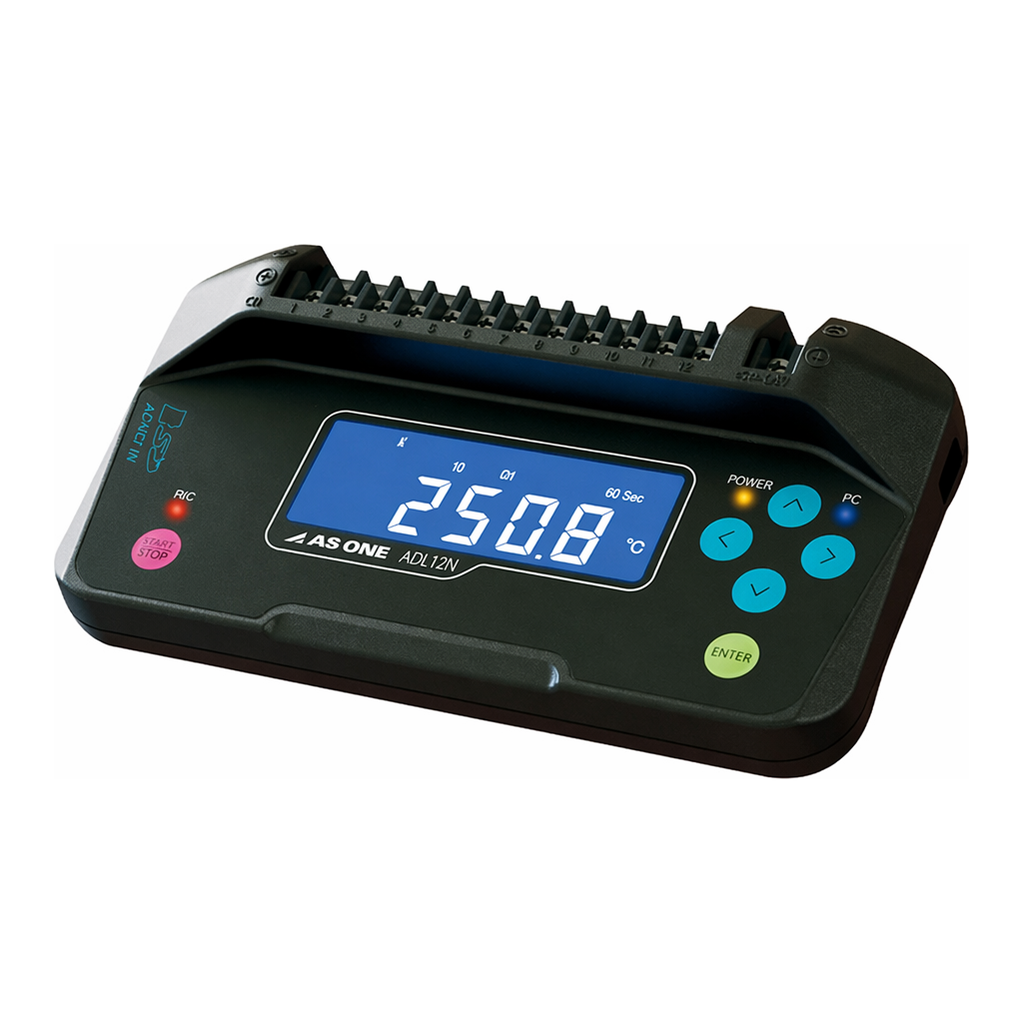

AS ONE 12 CH Data Logger　ADL12N

AS ONE 12 CH Data Logger　ADL12N

Spec

• Size (mm): 167 x 91 x 35.8

• Specifications (main body)

• Thermocouple Measurement: B, R, S, N, K, E, J, T (Select one)

• measurement temperature range : -200 to + 1370 ° C (When using K class thermocouple)

• Temperature Measurement Precision: ± 0.05% of rdg + 1.0 ° C (K: -100 to + 1370 degrees C at 25 degrees C)

• DC Voltage Measurement: 100, 500 mV, 1, 5, 10, 50 V

• DC voltage measurement accuracy: ± 0.1% of F.S.

• Humidity Measurements: 0 to 100 %RH

• Humidity Measurement Precision: ± 5 %RH (TYP) (10 to 95 %RH at 23 deg.)

• Input Channel: Analog/12 CH/+ 5 V-OUT/1 CH for Humidity Measurement

• Input Terminal Shape: Screw Type Terminal M3/* M3.5 (External Dimensions 6.2 mm or Less/inner diameter 3.2 mm or More)

• Sampling Period: 5, 10, 30, 60 sec, 5, 10, 30, 60 min

• PC I/F: USB 2.0 (full speed) Mini B Type

• 1 card slot, SDHC capable, 64 GB usable memory, to 32 GB (No SDXC)

• Memory: PC storage using SD card application

• recording format: CSV save to one file from start

• Number of times recorded: 5 million (For 2 GB)

• Accessories: Simplified manual, AC adapter, USB cable approx. 1M (For power supply and communication)

• Specifications (Application)

• OS support: Windows ® 8/8. 1/10 (32/64 bit)

• Functions: Real-time measurement on the application, recording start/end, data storage, body setting, SD card data reading and display

• Display method: Graph display (With overlay display function), list display, maximum/minimum/average value/comparison value display function of measurement data

• *Thermoelectric equivalent connection wire material is not included in the body. Please prepare according to the purpose.

• *We have rental machines.

• Download the application (v 120) from here
  * OS support: Windows ® 7/8/8.1/10 (32/64 bit)* If you need a driver for USB connection , click here
