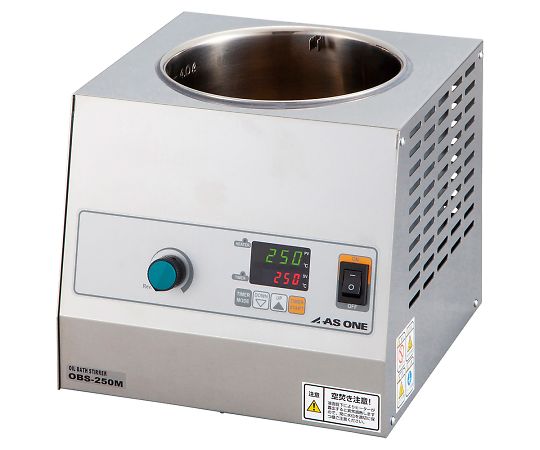

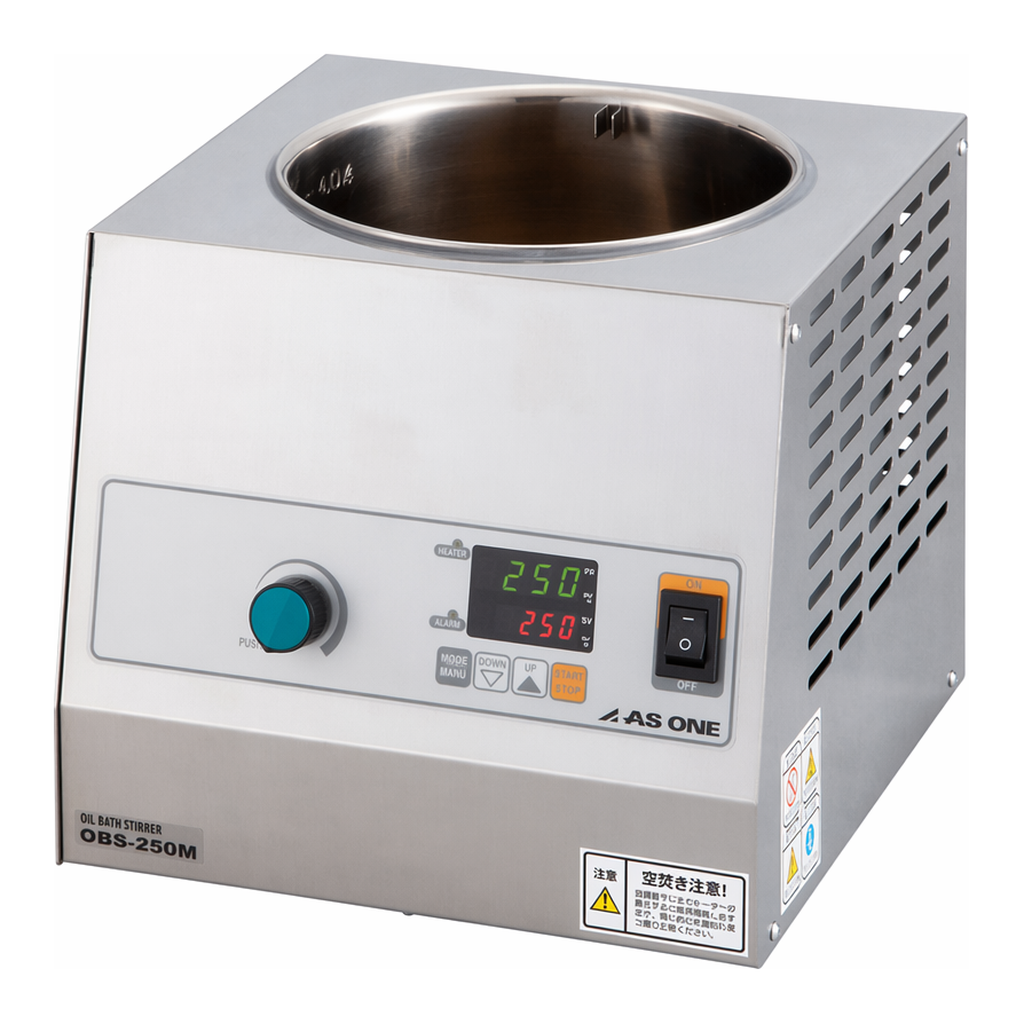

AS ONE Oil Bath Stirrer　OBS-250M

AS ONE Oil Bath Stirrer　OBS-250M

Spec

• external dimension (mm) : 260 x 266 (290) * 1 x 241
• tank inner size (mm) : Φ 180 x 180
• temperature settings range: R.T. + 5 to 250 ° C
• Temperature Adjustment Accuracy: ± 2 ° C
• Heater capacity: Sheath Heater 750 W
• temperature sensors: K class thermocouple
• Temperature Control Method: Microcomputer PID Control
• rotation speed : 100 to 1200 rpm
• Timer setting range: 0 to 99 hours 59 minutes
• Safety Device: Excess Temperature Rise Prevention Device, Overcurrent Prevention Fuse
• material: Body/duckboard/SUS430, Tank/SUS304, Stirring duckboard/Stainless Steel (SUS304 430) and Others
• power supply: AC100V 50/60 Hz 800 W
• power cord length : 2.5 m (3P Plug)
• water tank capacity: 4L
• Mountable thermometer size: Φ7 to Φ 10 mm
• Body Weight: Approx. 5.5 kg
• Accessories: Stirrer (φ8 mm x 30 mm) x 1 piece
• *duckboard is not included.
• *When directly stirring the sample, do not use an duckboard but use a container smaller than Φ 100 mm.
• *1 () Including protrusion
