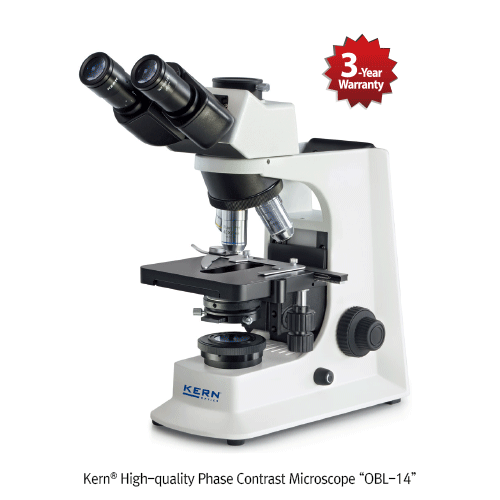

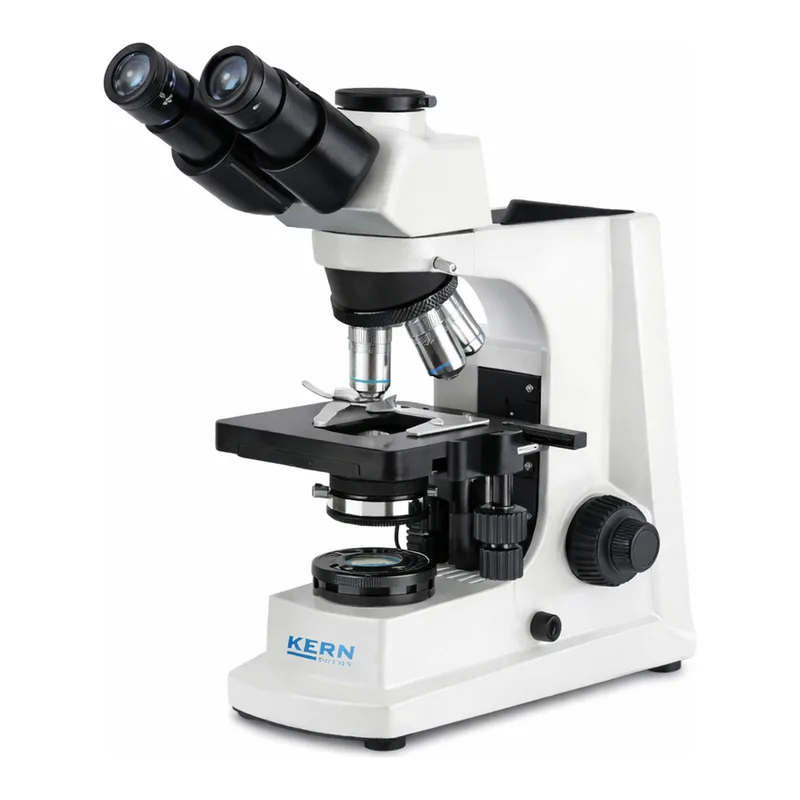

Kern® High-quality Phase Contrast Microscope “OBL-14”

Pre-centred Phase Contrast Condenser with Aperture Diaphragm, 40× ~ 1000×

With 3W LED or 20W Halogen illumination, PH10× / PH40× Objectives, 1.25 Abbe Condenser, Large Mechanical Stage.
위상차 생물 현미경으로, Supplied by Kern® in Germany
3 Year Warranty

• Mounted Phase Contrast Condenser
• Simple PH Condenser with 40× PH Slide

LAB LINE

High-quality Phase Contrast Microscope – Specially Pre-configured with a Series of Options for Flexible Expansion

Features

• General applications using the phase contrast method.
• Stable, modular construction system with 3W LED or 20W Halogen illumination (Philips).
• Fixed, pre-centred phase contrast condenser with aperture diaphragm and field diaphragm for simplified Koehler illumination.
• Large mechanical stage holds up to two samples; coaxial coarse and fine focusing knobs on both sides.
• Wide selection of eyepieces, objectives, color filters, polarising unit, and additional phase contrast units available.
• Includes protective dust cover, eye cups, and multi-lingual user instructions.

Technical Data & Applications

• Applicable fields: Haematology, Urology, Gynaecology, Dermatology, Pathology, Microbiology, Parasitology, Immunology, Sewage Treatment, Oncology, Entomology, Veterinary, Water Analysis, Breweries.
• Suitable for translucent, thin, low-contrast samples (e.g. living mammal cells, bacteria, tissue) with phase contrast.
• Infinity Optical System.
• Illumination: 3W LED or 20W Halogen (Transmitted).
• Quadruple nosepiece.
• Siedentopf head: 30° inclined / 360° rotatable.
• Diopter adjustment: One-sided.
• Dimensions: 395 × 200 × 380 mm.
• Net weight: approx. 6.7 kg.

STANDARD / OPTION ICONS

• 360°
• Binocular / Trinocular
• Abbe
• Halogen / LED
• PH (Phase Contrast)
• Infinity
• 230V
• POL (Polarisation)
• DF (Dark Field)
• SCALE

Specifications

Optional Accessories

• KE.OBB.A1549 — Trinocular Tube
