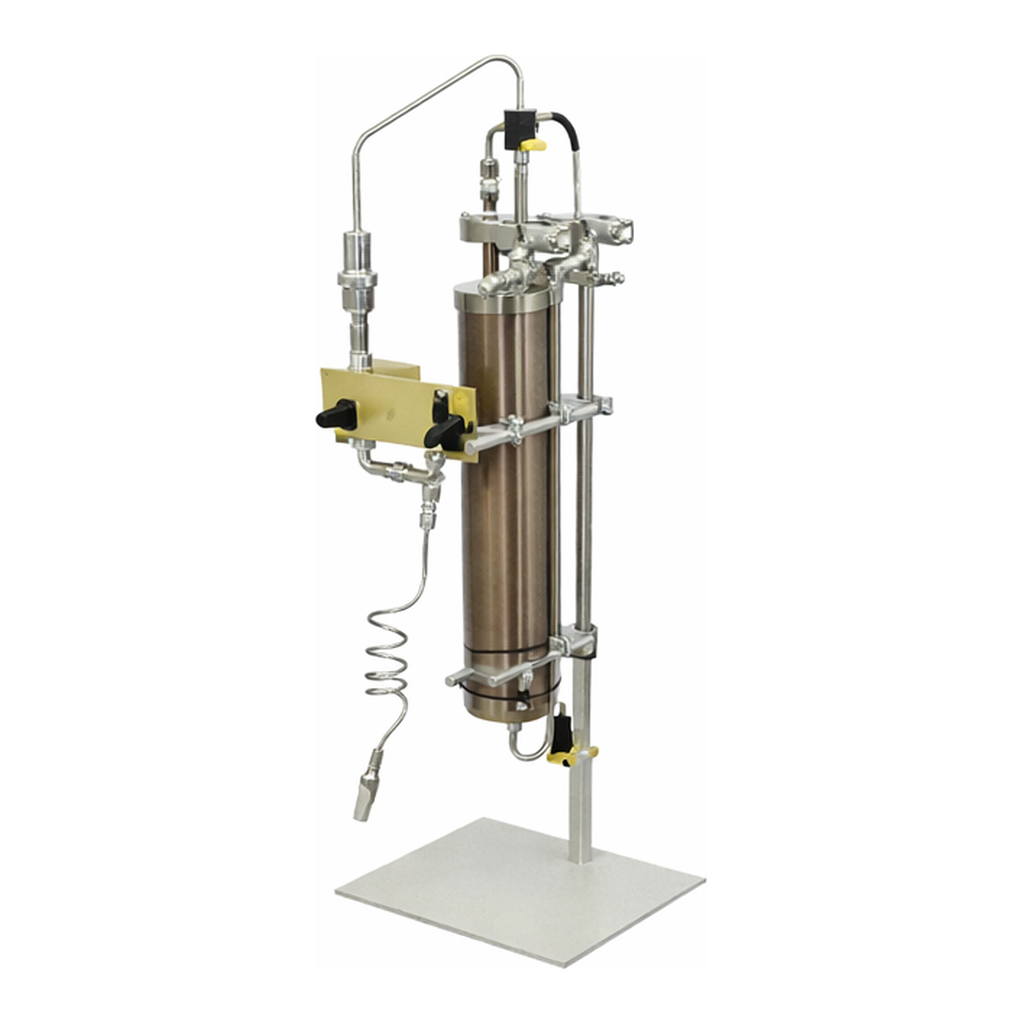

AS ONE 4-3089-13 Organic Solvent Purifier (GlassContour MINI)　GCMINI

* Flat Rate Shipping

• Assembly Required

Features

• It`s a small tabletop model.
• The outlet is a luer lock exclusive model.
• It can be used in a total of 11 solvents (Please contact us for details.).
• Accessories can be selected from the 10LSUS keg or coupler (Kanto/Wako) connection kit.
• Because it is purified by column rather than distillation, it requires no heat source and greatly reduces the risk of solvent ignition and explosion.
• With a simple operation on the control panel, you can collect the necessary amount of dehydrated and deoxygenated organic solvents when you need them.
• 80~100 L can be purified with HPLC-grade solvents.

Spec

• Column size: phi 50 x 395 mm
• Gas supply pressure: Adjust to within 0.03 ~ 0.04 MPa
• Size: 220 x 240 x 600 mm
• Weight: approximately 6.6 kg (excluding gas connection hose)
• Solvent Outlet: Luer Rock (Male)
• Material: Stainless steel (SUS 304)
• Accessories: 10 LSUS keg or coupler (Kanto/Wako) connection kit, flexible hose for gas connection (2 * m *)
• Common set contents: Main unit (Column 1 formula, containing 2), hose for gas connection, tube for column rinse, 10 LSUS keg or coupler kit (select from Kanto Chemical or Wako Pure Medicine)
• *Shipping, carrying-in, installation and assembly costs are required separately. Please inquire.
• *Prepare high purity argon gas (G3 grade or higher) or nitrogen gas (99.999%), regulator for gas pressure adjustment and solvent.
• *Choose anhydrous solvent canister cans for each reagent manufacturer and 10 L tanks for all others.
• *No power supply is required, but provide 1 3 P 100 V power supply for grounding.
• *Installation costs are required separately.

*This product might require extra fees.
