Applied Biosystems™

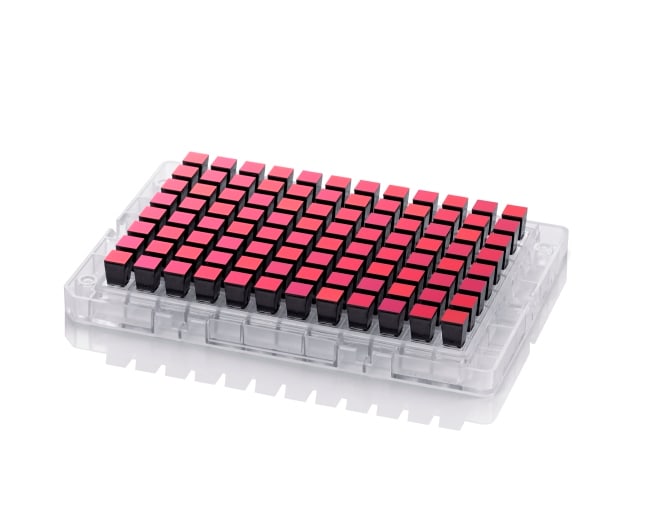

Axiom™ Exome 319 Array Plate

Streamline your causal variant studies by enriching genome-wide association studies (GWAS) datasets with an extensive set of novel, rare, putative자세히 알아보기

Streamline your causal variant studies by enriching genome-wide association studies (GWAS) datasets with an extensive set of novel, rare, putative functional variants. The content was discovered in 16 major exome sequencing projects spanning a total of 12,000 samples.

With the Axiom Exome 319 Array Plate, you get:
• Comprehensive content for highest discovery power

• More than 300,000 coding SNPs including non-synonymous and synonymous SNPs as well as variants in splice and stop codons.
• Approximately 30,000 single-base and complex indels from the draft Phase 1 1000 Genomes Project exome calls.
  • Informative markers to enable integrated data analysis
• AIMs: Ancestry informative markers to measure Latino and African American ancestry. All markers have low linkage disequilibrium (LD) and span all autosomes and chromosome X.

• GWAS tags: Includes over 5,000 SNPs reported in the NHGRI Catalog of Published Associations (August 2011) and additional unpublished hits from scientific collaborations.

• High value: Contains other markers of interest, including DNA fingerprinting SNPs, human leukocyte antigen (HLA) genes, chromosome Y, mitochondrial DNA, and microRNA sequences.
  • Customization to include your candidate genes
• Include an additional 100,000 SNPs from your own candidate genes to meet your research needs. Choose from the Axiom Genomic Database of 11M genotype-tested markers, or include variants of your own choosing.
  • Proven performance
• The panel has been fully genotype-tested against stringent QC criteria to ensure high-quality data.
• Every marker has been tested against approximately 1,200 samples to ensure high sample pass, call rate, and reproducibility.

Axiom Exome Genotyping Array Plates include:

• Axiom 2.0 Reagent Kit for automated or manual processing of up to 96 samples per array plate.
• A fully automated workflow with validated robotics methods for target preparation and array processing, based on the Beckman Biomek™ FXP Target Prep Express System and the GeneTitan™ MC Instrument.
• A manual target preparation protocol for lower-throughput users.
• Axiom Analysis Suite for automated allele calling and easier quality assessment of called genotypes.

Required Products
Axiom Analysis Suite
GeneChip Command Console Software
GeneTitan Multi-Channel Instrument

사양

어레이Genotyping

어레이 수96 arrays

형식96-array Plate

종Human

용도(애플리케이션)Microarray Analysis

수량1 plate

Unit Size1 plate
