Thermo Scientific™

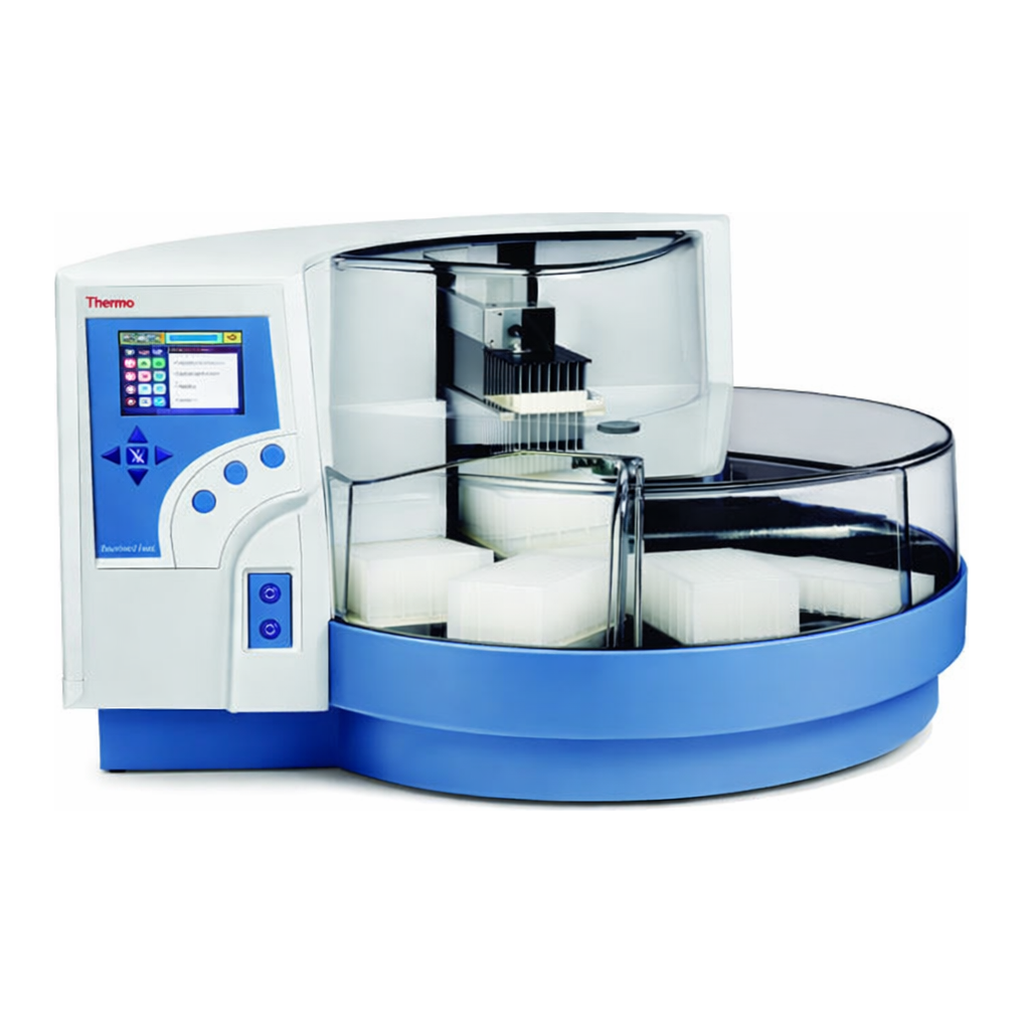

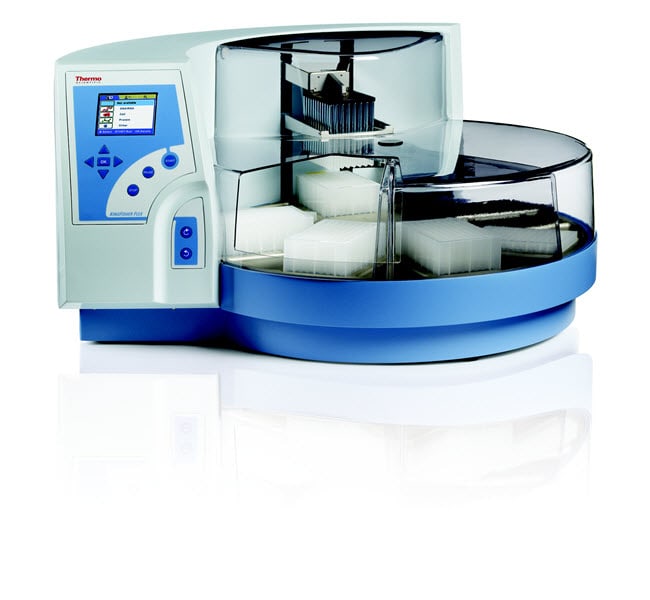

KingFisher™ Flex Purification System, KingFisher with 96 Deep-well Head

Prepare samples efficiently from a variety of materials with Thermo Scientific™ KingFisher™ Flex Magnetic Particle Processors.

Prepare samples efficiently from a variety of materials with the Thermo Scientific™ KingFisher™ Flex Purification System, which offers highly versatile, automated magnetic-particle processing for DNA/RNA, protein or cell purification from virtually any source. Using revolutionary magnetic particle separation technology, this system provides excellent reproduciblity and quality.

사양

부피(미터법) 프로세싱50 to 1000 μL

데크 당 플레이트24 or 96

용량96 Samples

설명KingFisher 96 Plate, KingFisher 96 DW plate

Collection Efficiency of Particles> 95%

디스플레이START / PAUSE / STOP / OK / TURNTABLE ROTATING CLOCKWISE / TURNTABLE ROTATING COUNTERCLOCKWISE / four cursor keys / LCD

용도(애플리케이션)Genomics and proteomics, target identification, veterinary assays, biomarker discovery, quality control, forensics

가열 온도From +5°C above ambient temperature to +115°C

자기봉96 in one frame; Interchangeable magnet heads

입자 크기(미터법)ca. >1 μm

수량Each

플레이트 유형24 or 96-well plates: KingFisher 24 Deep Well plate (200 to 5000 μL), Microtiter 96 Deep Well plate (50 to 1000 μL), KingFisher 96 plate (20 to 200 μL), PCR plate (20 to 100 μL)

깊이(영국식 단위)23.6 in.

깊이(미터법)60 cm

높이(영국식 단위)15 in.

높이(미터법)38 cm

중량(영국식 단위)62 lb.

중량(미터법)28 kg

폭(영국식 단위)26.8 in.

폭(미터법)68 cm

Unit SizeEach
