Thermo Scientific™

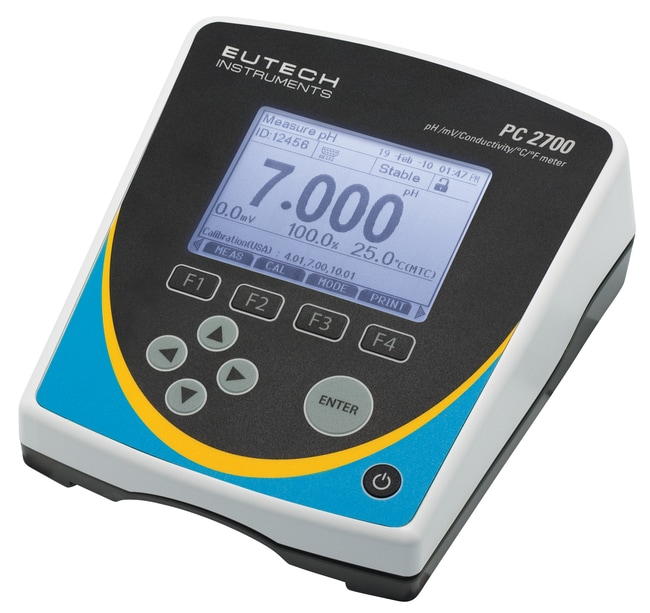

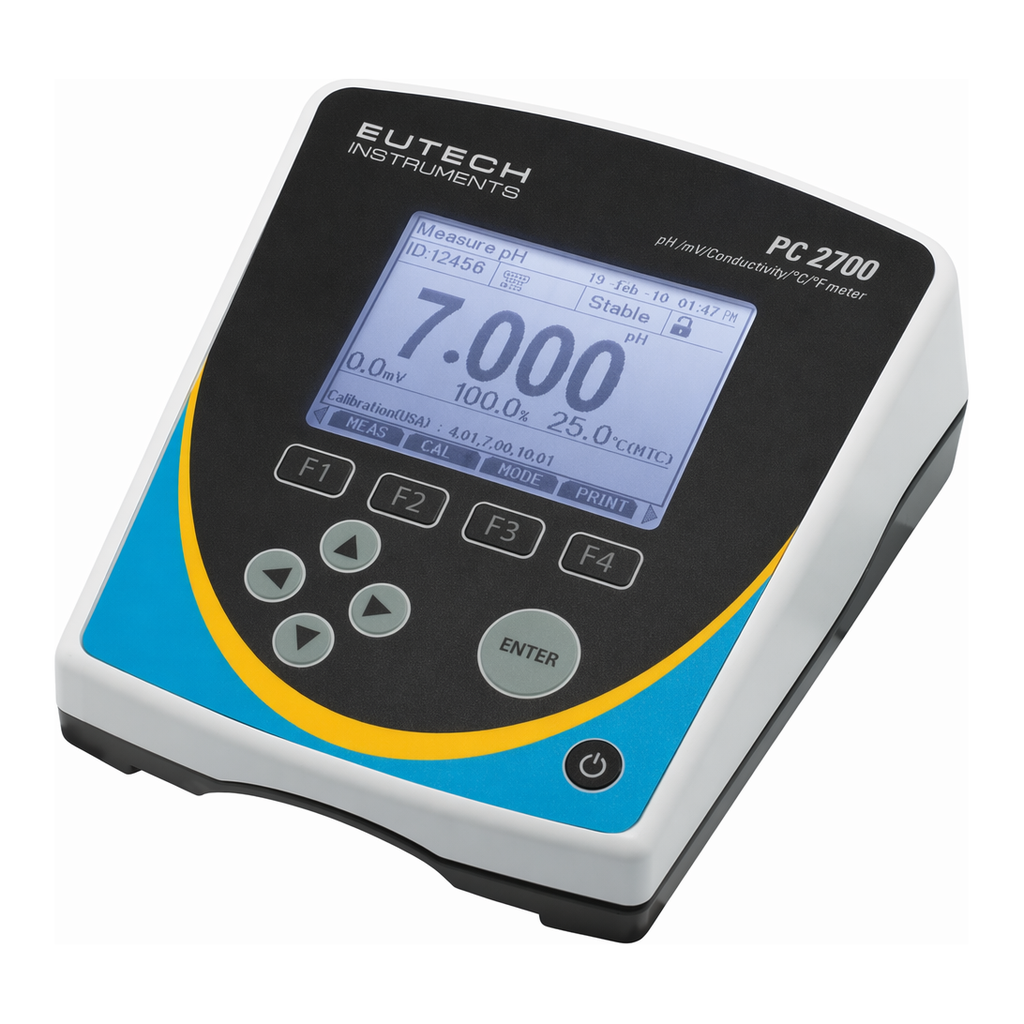

Eutech™ PC 2700 Multi-parameter Meter

Measure multiple parameters in a cost-effective and convenient way by using only one Eutech™ multi-parameter meter.

Your all-in-one solution for multi-parameter research work in the lab. The Eutech™ PC 2700 Multi-parameter Meter is accurate, reliable and intuitive with user-friendly functions. Meter comes with a multi-data screen that includes temperature, electrode status, calibration points, date and time along with your desired measurement parameter. PC 2700 measures pH, ORP, ION, Conductivity, TDS, Salinity, or Resistivity. Configuration include 30X427301 RS232 cable, 100/240 VAC power adapter and an integral electrode holder.

사양

출력RS232

정확도(전도도)± 1% full scale

정확도(ISE)0.5% full scale (monovalent ion), 1% full scale (divalent ion)

정확도(ORP)±0.2 mV

정확도(pH)±0.002 + 1 LSD

정확도(저항성)± 1% full scale

정확도(염도)± 1% full scale

정확도(TDS)± 1% full scale

알람 출력Calibration Due Alarm, Limit (out of range reading) Alarm

보정 지점Up to 5 (TDS)

보정 지점(전도도)Up to 5

보정 지점(ISE)2 to 8

보정 지점(pH)Up to 6 preset or 5 custom

세포 상수0.010 to 10.000

설명Eutech PC 2700 Meter only - With Integral Electrode Holder & 100/240 VAC Adapter, RS232 cable

Measurement ModespH, ORP, Ion, Conductivity, TDS, Salinity, Resistivity

범위(전도도)0.050 μS to 500.0 mS

범위(pH)-2.000 to 20.000

범위(저항)2.000 Ohm to 20.0 MOhm

범위(염도)0.0 to 80.0 ppt

범위(TDS)0.050 ppm to 500 ppt (@ TDS factor 1.00)

분해능(ISE)2 or 3 digits

분해능(pH)0.1/0.01/0.001

온도 범위(미터법)0.0°C to 100.0°C

전원 공급 장치9 V DC adapter, 1.3 A (100/240 VAC, SMPS)

범위(농도)0.001 to 19999 ppm (±2000 mV)

범위(ORP)±2000.0 mV

범위(상대 mV)±2000.0 mV

분해능(전도도)0.01 / 0.1 μS ; 0.001 / 0.01 / 0.1 mS

분해능(ORP)0.1 mV

분해능(저항성)0.01 / 0.1 Ohm ; 0.001 / 0.1 kOhm ; 0.01 MOhm

분해능(염도)0.01 / 0.1 ppm ; 0.001 / 0.01 / 0.1 ppt

분해능(TDS)0.01 / 0.1 ppm ; 0.001 / 0.01 / 0.1 ppt

온도 정확도±0.3°C, ±0.5°F

온도 보상ATC / MTC

온도 범위(영국식 단위)32.0°F to 212.0°F

온도 분해능0.1 °C / 0.1 °F

Unit SizeEach
