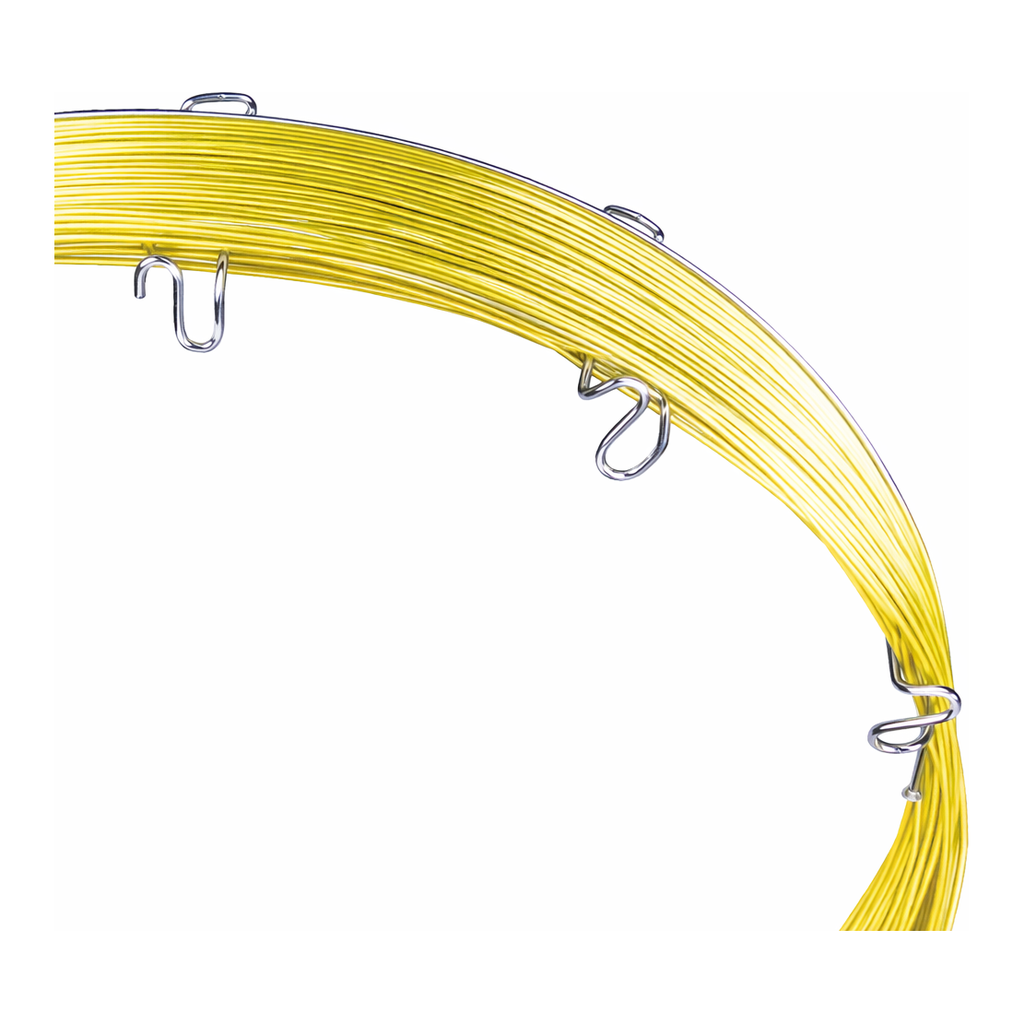

Restek Rt-QS-BOND PLOT Column, 30m, 0.25mm ID, 8um

Overview

Features & Benefits

• Intermediate polarity porous polymer PLOT column incorporating low 4-vinylpyridine
• Separates ethane, ethylene, and acetylene to baseline
• Temperature range: -60 to 250 °C

A GC column phase cross-reference is also available.
Model your PLOT column using our Pro EZ_GC Chromatogram Modeler.

Description

Porous polymers are unique, highly retentive stationary phases with a wide application range that can elute both polar and nonpolar compounds.
They are very hydrophobic, so water has no impact on retention times and even elutes as a good chromatographic peak.

The Q-BOND is the most nonpolar and widely used porous polymer column; functional groups can be added to increase polarity (i.e., QS-, S-, and U-BOND).
The manufacturing process ensures that porous polymer particles adhere strongly to the tubing walls, minimizing particle generation.

This results in reproducible performance from column to column, including selectivity and flow.
Recoiling PLOT columns is not recommended, as this may cause particles to dislodge from the tubing walls.

Specifications
