Daihan Science Wheaton Fully Automatic Peristaltic Pump/Dispenser, Dispense & Flow Mode, OmniS

상품 한눈에 보기

정밀한 액체 디스펜싱을 위한 Wheaton OmniSpense ELITE® 완전 자동 페리스탈틱 펌프. 0.5~400RPM 속도 조절, 5” LCD 디스플레이, ±1% 정확도. 다양한 튜빙 크기(Φ2~8mm)와 스택형 펌프헤드 지원. 연구, 제약, 식품, 환경 등 다용도 적용.

브랜드: Daihan Science
카테고리: Peristaltic Pumps
판매단위: ea

#Daihan Science

카탈로그

1개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Daihan Science WH-W375022-EA Stackable Pumphead, for 2.3mm tubing, 1/Ea ea WH.W375022판매 단위 ea ·

재고 확인 필요재고 확인 필요

1,454,400원VAT 포함 1,599,840원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science Wheaton Fully Automatic Peristaltic Pump/Dispenser, Dispense & Flow Mode, OmniS

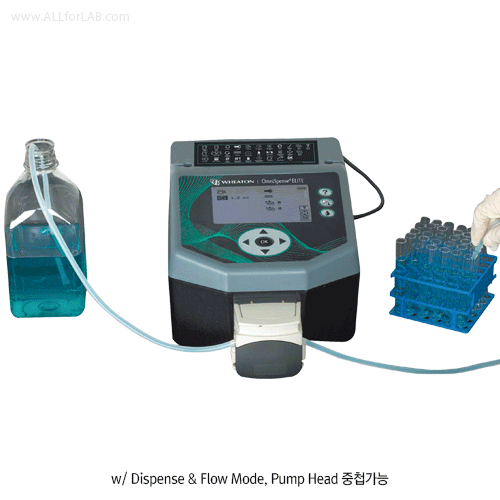

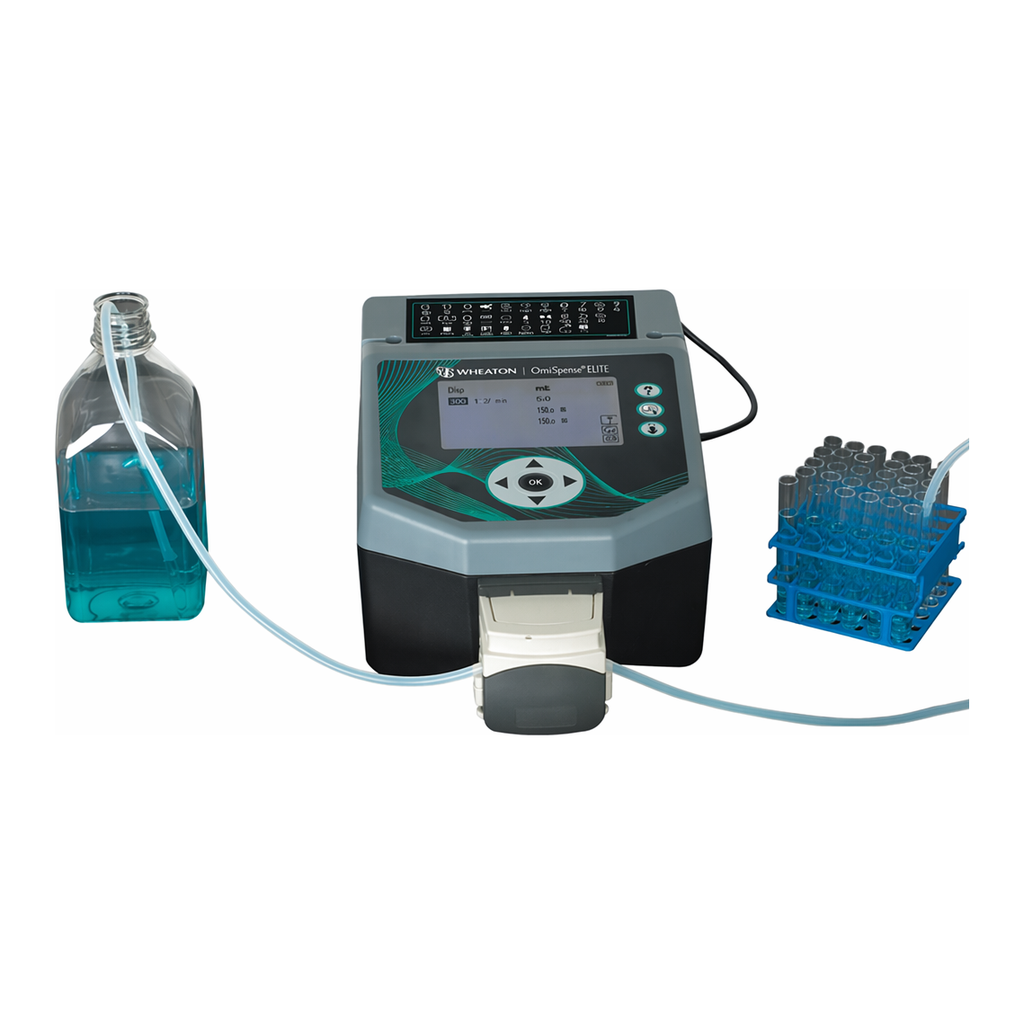

Wheaton® Fully Automatic Peristaltic Pump/Dispenser, Dispense & Flow Mode, OmniSpense ELITE®

With variable operating speed 0.5~400 RPM, stackable pump head, and large 5” LCD backlit display.
For tubing ID Φ2 · 3 · 6 · 8mm, dispensing range 0.01~9999.9ml.
다기능 전자식 디스펜서.

Supplied by Wheaton® (USA)

Multiple stacking pump heads allow for higher volumes and multiple fill applications with one pump.
Microcassette head ideal for precision micro-dispensing in well plates, micro-tubes, or centrifuge tubes.
Different ramping profiles to avoid splashing or foaming.
Icon-driven user interface for easy setup and operation.
Large 5” LCD display viewable from distance or angle.
Durable front overlay resistant to chemicals and wear.
Polarized and angled screen for glare-free viewing.
“Trouble-Free” calibration screen for accurate and quick calibration.
Ultra-high precision stepper motor ensures repeatability and accuracy.

Features

Compact design with large 5” LCD backlit display
Compatible with tubing ID 2, 3, 6, and 8mm
Adjustable speed and reverse-flow option for dispensing & aspirating operations
Memory stores up to 100 setups
Multi-language help screens (EN, CN, FR, JP, KR, ES)
Applications: research, development, QC, pharmaceutical, biotech, food/beverage, wastewater, sample collection

Specifications

항목	내용
Model	OmniSpense ELITE®
Operating Voltage / Power Consumption	230 VAC 50/60 Hz, 37W max
Operating Speed	0.5 ~ 400 RPM
Available Tubing Size (ID)	Φ2 / 3 / 6 / 8mm
Dispense Range	0.01 ~ 9999.9ml
Approx. Flow Rate Range	2mm ID: 40.2~174ml/min 3mm ID: 420.2~354ml/min 6mm ID: 131~1176ml/min 8mm ID: 200~1746ml/min
Accuracy	±1%
Delay Time	0.5–60 sec (Automatic Mode)
Dimensions / Weight	22.3 × 33.0 × 17.8cm / 5.4kg
Optional Pump Head Support	Stack up to 2 pump heads / 5-channel pump head for small-bore tubing

Product Codes & Accessories

Code	Description	Ea.	Price, ₩
WH.W375030.C	OmniSpense ELITE®, 230V, 50~60Hz
Optional Accessories
WH.W375023	Pumphead for tubing ID 1.5/1.6mm
WH.W375024	Stackable pumphead for tubing ID 1.5/1.6mm
WH.W375022	Optional pumphead for tubing ID 2.3mm
WH.W375025N	5-channel cassette pumphead for tubing ID 1.5/1.6mm
WH.374310	Silicone tubing assembly, wall 2.3mm, ID 2mm × L1.5m
WH.374311	Silicone tubing assembly, ID 3mm × L1.5m
WH.374313	Silicone tubing assembly, ID 6mm × L1.5m
WH.374314	Silicone tubing assembly, ID 8mm × L1.5m
WH.374340	Silicone tubing assembly, wall 2.3mm, ID 2mm × L7.5m
WH.374341	Silicone tubing assembly, ID 3mm × L7.5m
WH.374343	Silicone tubing assembly, ID 6mm × L7.5m
WH.374308	Silicone tubing assembly, ID 8mm × L7.5m
WH.374315	Viton tubing assembly, wall 2.3mm, ID 2mm × L1.5m
WH.374316	Viton tubing assembly, ID 3mm × L1.5m
WH.374318	Viton tubing assembly, ID 6mm × L1.5m
WH.374319	Viton tubing assembly, ID 8mm × L1.5m
WH.851830	Manifold, straight, 4 position, 24 well
WH.851831	Manifold, straight, 8 position, 96 well
WH.851832	Manifold, angular, 4 position, 24 well
WH.851833	Manifold, angular, 8 position, 96 well
WH.I050694	Foot switch
