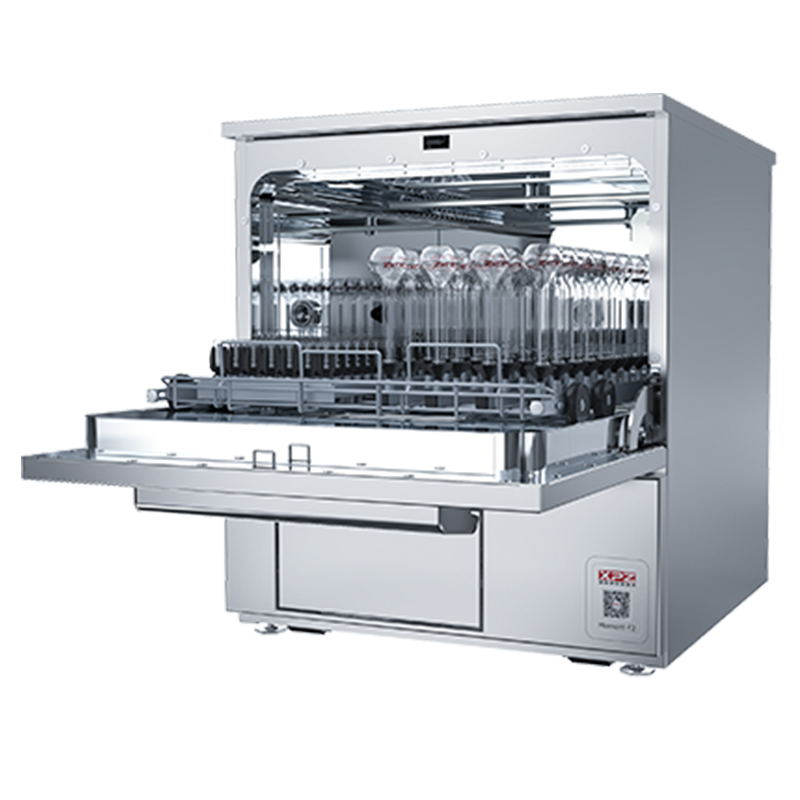

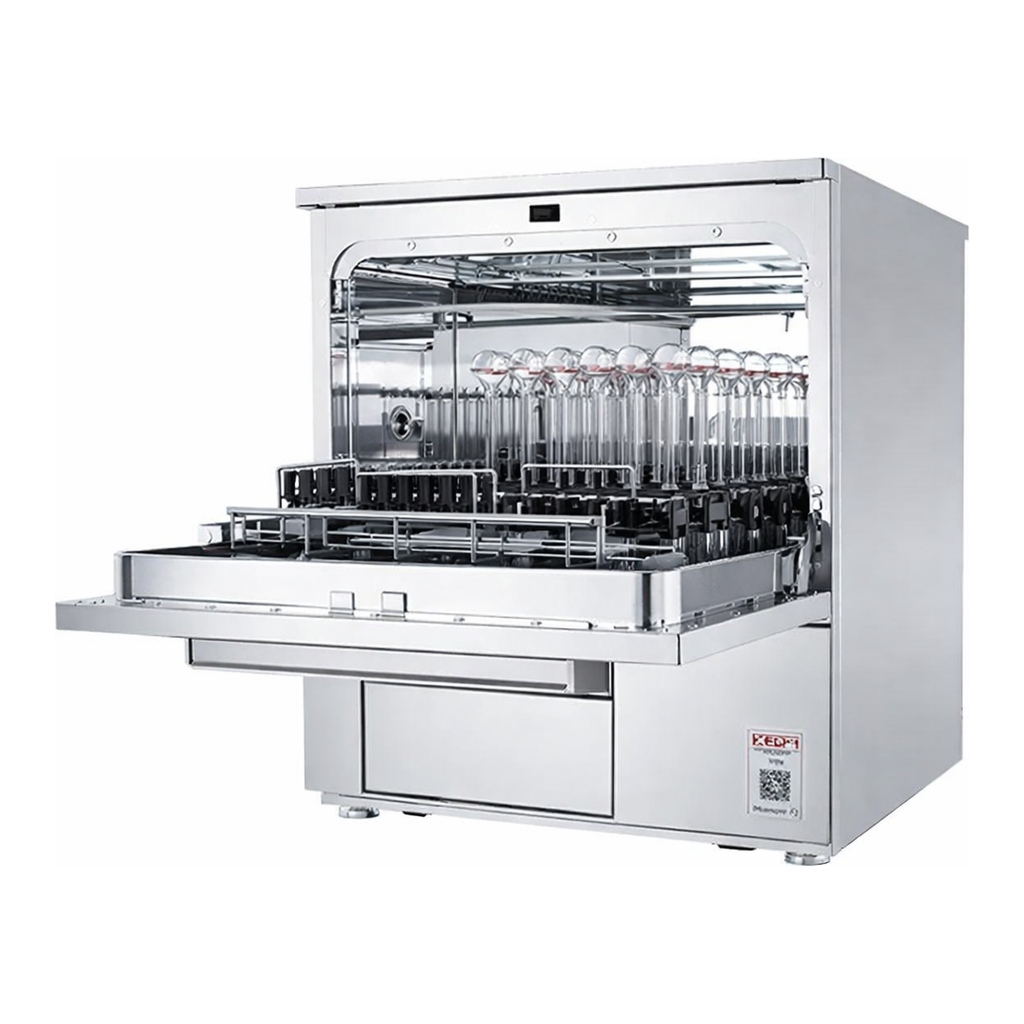

Moment-2/F2 laboratory fully automatic bottle washing machine, which can be installed on the test bench separately, can be connected to two kinds of water sources, tap water and pure water. The normal cleaning process is to use tap water to heat and detergent for main washing, and then use pure water Rinse the cleaning items, it will bring you a convenient and quick cleaning effect, when you have drying requirements for the cleaning utensils, please choose Moment-F2.

Product parameters

Moment-2/F2

Moment-2 / F2 laboratory glassware washer,can be installed under the laboratory table-board or separately. It can be connected with tap water & pure water. The standard process is to use tap water & detergent to do mainly wash, then use Pure water rinsing. It will bring you a convenient and fast cleaning effect, when you have drying requirements for cleaned utensils, please choose Glory-F2.

structure

The inner cavity is made of 316L stainless steel, and the outer shell is made of 304 stainless steel, which has super corrosion resistance.

Control System

The control system has 35 standard programs and 100 custom setting programs.

Work requirements

• Power supply: 220-230V single-phase 50HZ or 380-400V three-phase five-wire
• Inlet water: municipal tap water and laboratory pure water for rinsing
• Power: 4KW/9KW total approved power 5KW/10KW

Quadruple filter system

Inlet coarse filtration prevents particles in the water from entering the cavity, double sewage circulation filtration helps to prevent particles and debris from recirculating in the water, and reverse flow filtration of the circulation pump protects the service life of components.

Circulatory system

500L/min cycle speed, with cycle speed detection system and overheat protection device.

Drying system

High-efficiency HEPA filter compressed air drying system can thoroughly dry the inner and outer surfaces of glassware, and start the drying system with one button;

The drying temperature is adjustable and the drying time is adjustable. You can choose Moment-F2 if you need to dry

Specifications

Series	Item	Moment-2	Moment-F2
Gloey series	Diemsion	W612*D750*H685mm	W612*D750*H685mm
	Chamber volume	126L(Built-in light control)	126L(Built-in light control)
	Number of cleaning layers	1-2	1-2
	Circulation pump flow rate	320L/min	320L/min
	Heating Power	4kw/9kw	4kw/9kw
	Electricity	220v/380v	220v/380v
	Drying way	Ecodry	Hot air heating
	Instllation method	Table top	Table top
	Opening method	Front load door	Front load door

Features description

Series	Item	Moment-2/F2
Moment series	Operation interface	Microcomputer intelligent control.OLED display, water proof Stainless steel metal buttons with 3 shortcut program keys Support Chinese/ Russian/ English three languages
	Programs	35 Detault, 100 user-defined
	Password	Multi- level password protection
	Door	Automatic opening door with viewing window
	Baskets	Modularity basket, one layer can put 2 baskets
	Detection& tracking system	Conductivity detection function (Optional); Printingfunction (Optional); Data storage function
	Wash start delay	Wash start delay function & Delay shutdown function
	Basket identitication function	Can save water, save electricity, save detergent
	Spray system	The speed sensing system of the spray arm can adjust the speed according to the type of utensils to be cleaned according to the user's needs, and carry out real-time monitoring to ensure that the speed is within the set range

CLEANING MODULE

MGAF Series Module

Upper middle layer module basket FA-Z01	Lower module basket FA-Z02	Upper middle module basket FA-Z03
Upper middle layer module basket FA-Z04	Upper middle layer module basket FA-Z05	Lower module basket FA-Z06

Rising Series Module

Basket FA-K91	FA-K90	FA-K90
FA-K32-50ml	FA-K30	FA-K21-21
FA-K21	FA-K20	FA-K20
FA-K11	K10-10	FA-K10-8
FA-K10-8	FA-K10	FA-K91
20ml headspace bottle injection cleaning basket rack 84-position cross rest	Injection cleaning module 8/10 position FA-K10	Injection cleaning module 8/10 position FA-K11
Injection cleaning module 18/21 FA-K20	Injection cleaning module 18/21 FA-K21	Injection cleaning module 32/36 FA-K30
Injection cleaning module 32/36 FA-K31	Injection cleaning module 112/119 FA-K90	Injection cleaning module 112/119 FA-K91

Light Series Module

Basket TSXF-401	Basket TSXF-401	Basket TSXF-101
Baskst G-301	Basket G-201	Half basket TSXF-101
Quarter cover G-301	Quarter basket TSXF-401	Full frame TSXF-204 half frame TXF-105
Half net cover G-201	Half basket TXF-203	Full frame TXF-101
Full frame TXF-102	Half insert TXF-202	Lower full frame TXF-103
Lower full frame TXF-104	Lower full frame TXF-201	Lower full frame TXF-202
