Daihan Science Flexible Coupling, for Safety Stirring of Φ6~16mm Shafts of Overhead StirrersFor
AI 생성AI가 생성·보정한 이미지예요. AI는 실수할 수 있으니 실제 제품과 다를 수 있어요.
1 / 2
Daihan Science

Daihan Science Flexible Coupling, for Safety Stirring of Φ6~16mm Shafts of Overhead StirrersFor

상품 한눈에 보기

오버헤드 교반기의 모터와 샤프트 간 진동을 흡수하는 유연 커플링. 듀랄루민 재질로 내구성이 높으며, 다양한 샤프트 직경(Φ6~16mm)에 대응. 고점도 및 저점도 교반 모두에 적합. 스테인리스 교환형 척 로드 포함.

카탈로그번호
SL-StiC0xxxxx (9개 옵션)
브랜드
Daihan Science
카테고리
Daihan Science
판매단위
ea
#Daihan Science

카탈로그

9개 옵션
회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.
Daihan Science SL-StiC018-EA (Acc.)Stir-Coupling, Hi-flex, Φ12mm Chuck-rod, for-Φ12mm Stir-Shaft, Φ32×h60mm, 1/Ea ea SL.StiC018판매 단위 ea ·
재고 확인 필요
75,000원VAT 포함 82,500원
Daihan Science SL-StiC019-EA (Acc.)Stir-Coupling, Hi-flex, Φ12mm Chuck-rod, for-Φ14mm Stir-Shaft, Φ32×h60mm, 1/Ea ea SL.StiC019판매 단위 ea ·
재고 확인 필요
75,000원VAT 포함 82,500원
Daihan Science SL-StiC020-EA (Acc.)Stir-Coupling, Hi-flex, Φ12mm Chuck-rod, for-Φ16mm Stir-Shaft, Φ32×h60mm, 1/Ea ea SL.StiC020판매 단위 ea ·
재고 확인 필요
75,000원VAT 포함 82,500원
Daihan Science SL-StiC017-EA (Acc.)Stir-Coupling, Hi-flex, Φ12mm Chuck-rod, for-Φ10mm Stir-Shaft, Φ25×h44mm, 1/Ea ea SL.StiC017판매 단위 ea ·
재고 확인 필요
62,500원VAT 포함 68,750원
Daihan Science SL-StiC025-EA (Acc.)Stir-Coupling, Low-flex, Φ12mm Chuck rod, for-Φ12mm Stir-Shafts, Φ32×h38mm, 1/Ea ea SL.StiC025판매 단위 ea ·
재고 확인 필요
42,000원VAT 포함 46,200원
Daihan Science SL-StiC026-EA (Acc.)Stir-Coupling, Low-flex, Φ12mm Chuck rod, for-Φ14mm Stir-Shafts, Φ32×h38mm, 1/Ea ea SL.StiC026판매 단위 ea ·
재고 확인 필요
42,000원VAT 포함 46,200원
Daihan Science SL-StiC027-EA (Acc.)Stir-Coupling, Low-flex, Φ12mm Chuck rod, for-Φ16mm Stir-Shafts, Φ32×h38mm, 1/Ea ea SL.StiC027판매 단위 ea ·
재고 확인 필요
42,000원VAT 포함 46,200원
Daihan Science SL-StiC023-EA (Acc.)Stir-Coupling, Low-flex, Φ10mm Chuck rod, for-Φ10mm Stir-Shafts, Φ25×h30mm, 1/Ea ea SL.StiC023판매 단위 ea ·
재고 확인 필요
31,500원VAT 포함 34,650원
Daihan Science SL-StiC024-EA (Acc.)Stir-Coupling, Low-flex, Φ10mm Chuck rod, for-Φ12mm Stir-Shafts, Φ25×h30mm, 1/Ea ea SL.StiC024판매 단위 ea ·
재고 확인 필요
31,500원VAT 포함 34,650원
재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science Flexible Coupling, for Safety Stirring of Φ6~16mm Shafts of Overhead StirrersFor

Flexible Coupling, for Safety Stirring of Φ6~16mm Shafts of Overhead Stirrers

For Stirrers between Stirring Motor and Shaft
안전교반용 유연성 커플링

■ Used to compensate any vibrations between the motor and stirring shafts

  • Shaft fastening by screw clamp band
  • Made of Duralumin
  • Made in Korea
  • With exchangeable stainless steel chucking rod Φ8 / 10 / 12mm, L40mm

(1) UTILITY High-Flex Metal Coupling (2× Flex-band) for Φ6~16mm Stir-Shafts

Ideal for low/high viscosity and high/low speed applications.

Model No. Description Ea. Price (₩)
SL.StiC011 Stir-Coupling, Hi-flex, Φ8mm Chuck-rod, for Φ6mm Stir-Shaft, 56g, Φ25×L44mm
SL.StiC012 Stir-Coupling, Hi-flex, Φ8mm Stir-Shaft, 53g, Φ25×L44mm
SL.StiC013 Stir-Coupling, Hi-flex, Φ10mm Stir-Shaft, 49g, Φ25×L44mm
SL.StiC014 Stir-Coupling, Hi-flex, Φ10mm Chuck-rod, for Φ8mm Stir-Shaft, 49g, Φ25×L44mm
SL.StiC015 Stir-Coupling, Hi-flex, Φ10mm Stir-Shaft, 43g, Φ25×L44mm
SL.StiC016 Stir-Coupling, Hi-flex, Φ12mm Stir-Shaft, 33g, Φ25×L44mm
SL.StiC017 Stir-Coupling, Hi-flex, Φ12mm Chuck-rod, for Φ10mm Stir-Shaft, 33g, Φ25×L44mm
SL.StiC018 Stir-Coupling, Hi-flex, Φ12mm Stir-Shaft, 123g, Φ32×L60mm
SL.StiC019 Stir-Coupling, Hi-flex, Φ14mm Stir-Shaft, 120g, Φ32×L60mm
SL.StiC020 Stir-Coupling, Hi-flex, Φ16mm Stir-Shaft, 118g, Φ32×L60mm

(2) Heavy-Duty Metal Coupling (Short Flex-band) for Φ10~16mm Stir-Shafts

Low-flexible type, ideal for high viscosity and middle/low speed.

Model No. Description Ea. Price (₩)
SL.StiC023 Stir-Coupling, Low-flex, Φ10mm Chuck-rod, for Φ10mm Stir-Shafts, 45g, Φ25×h30
SL.StiC024 Stir-Coupling, Low-flex, Φ12mm Stir-Shafts, Φ25×h30
SL.StiC025 Stir-Coupling, Low-flex, Φ12mm Chuck-rod, for Φ12mm Stir-Shafts, 105g, Φ32×h38
SL.StiC026 Stir-Coupling, Low-flex, Φ14mm Stir-Shafts, Φ32×h38
SL.StiC027 Stir-Coupling, Low-flex, Φ16mm Stir-Shafts, Φ32×h38

(3) Very Flexible Rubber-Based Coupling for Φ7~10mm Shafts

Especially ideal for glass shafts and low/middle viscosity & high-speed stirring.

  • Made in Germany
  • Shaft fastening by screw compression rubber ring pad
  • With Φ10×L40mm exchangeable stainless steel chucking rod
Model No. Description Ea. Price (₩)
WI.1445000 Stir-Coupling, Rubber Based, for Φ7~Φ10mm Shafts, 72.5g, Body Φ46×h80mm

추가 설명

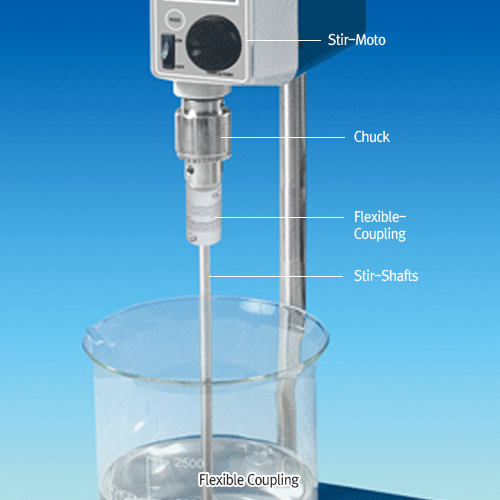

  • (1) Hi-flex Metal for Φ6~16 Shafts
  • (2) Heavy-duty Metal for Φ10~16 Shafts
  • (3) Rubber Based for Φ7~10 Shafts
  • Chuck-Rod Exchangeable
  • Flexible-Coupling
  • Stir-Motor
  • Chuck
  • Stir-Shafts

제품 이미지

Flexible Coupling

Daihan Science 상품 둘러보기

전체보기
Daihan ScienceDaihan Science Ansell Solvex Nitile Chemical Resistant Glove, Nitrile Fully Coated, 2 types of3,500원VAT별도
Daihan ScienceDaihan Science 9Pcs 엑스트라 롱볼렌치 세트, Extra Long Ball end Hex L-Key Wrench Set / 9Pcs, 1.5~10mm16,100원VAT별도

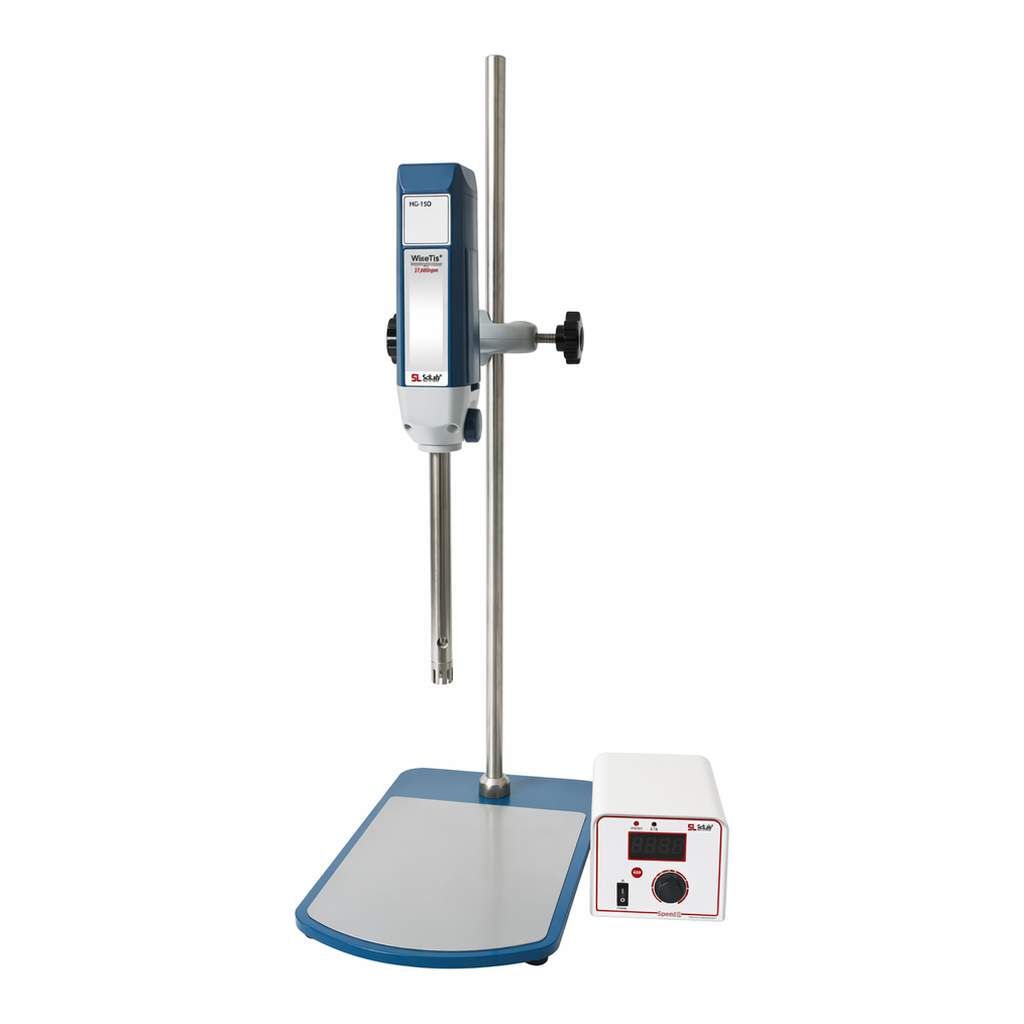

Daihan ScienceDaihan Science SciLab Homogenizer with Remote Digital Controller “WiseTis SHG-15D”, 2,000~27,568,800원VAT별도

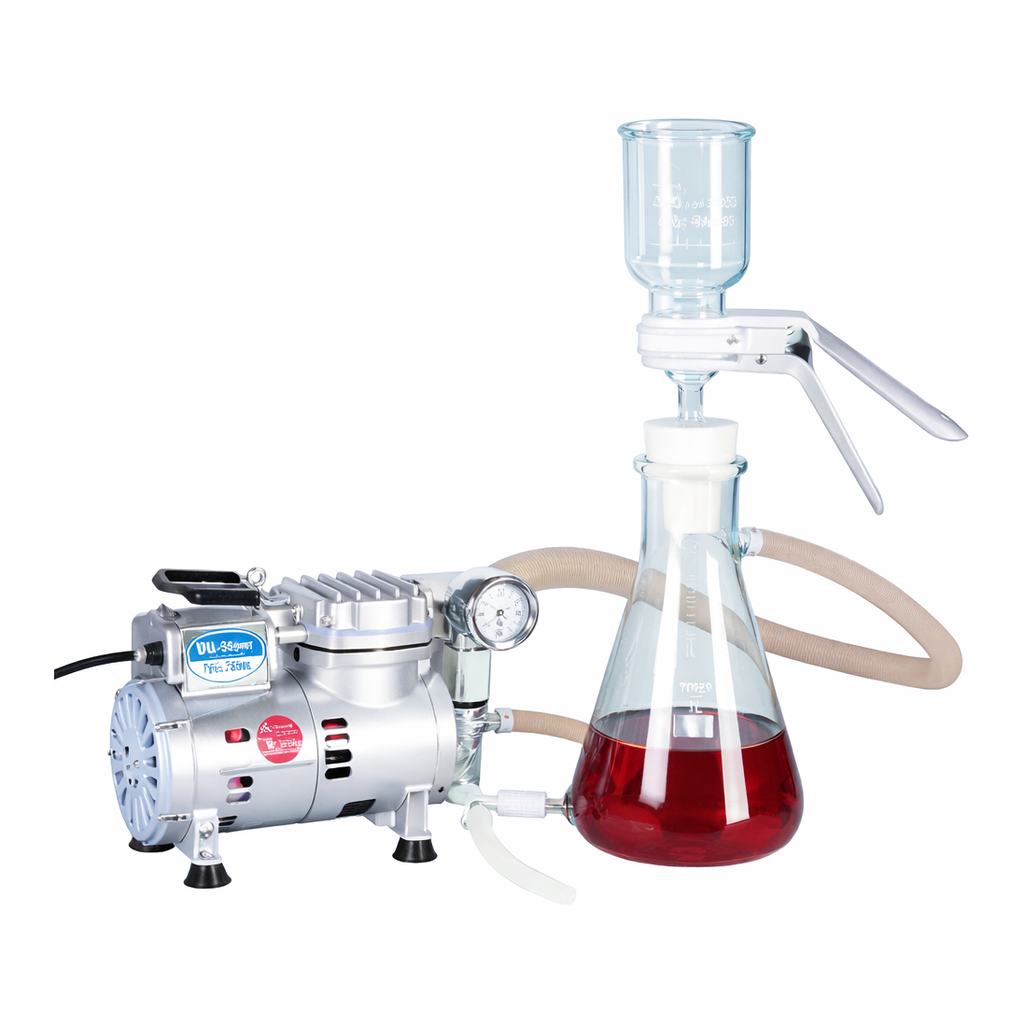

Daihan ScienceDaihan Science 300㎖/47mm Vacuum Filtration Apparatus Complete Set with Vacuum Pump(105mbar, Oil917,500원VAT별도
