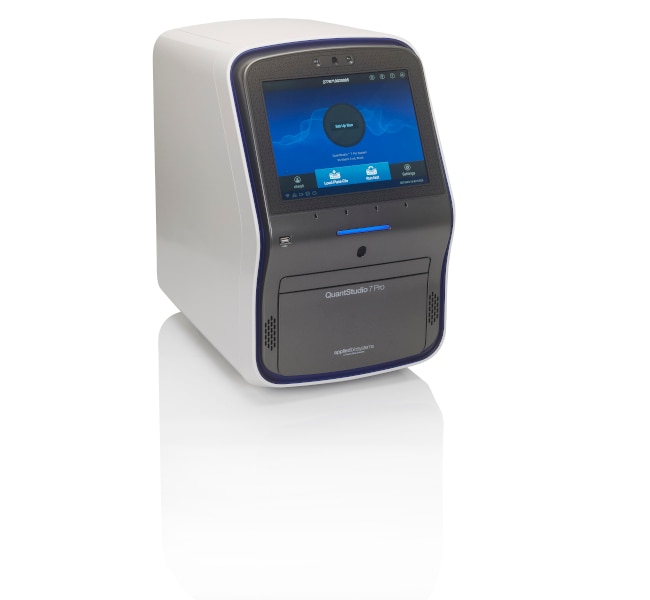

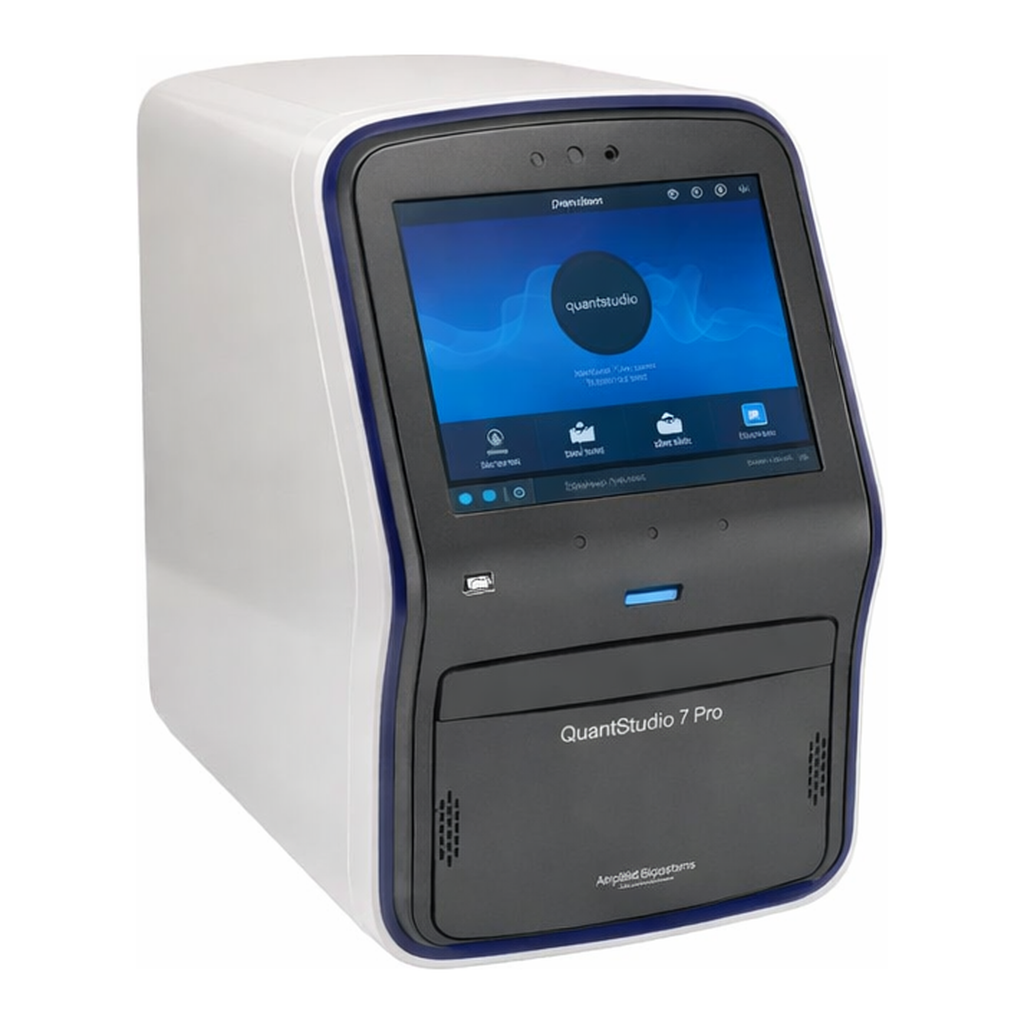

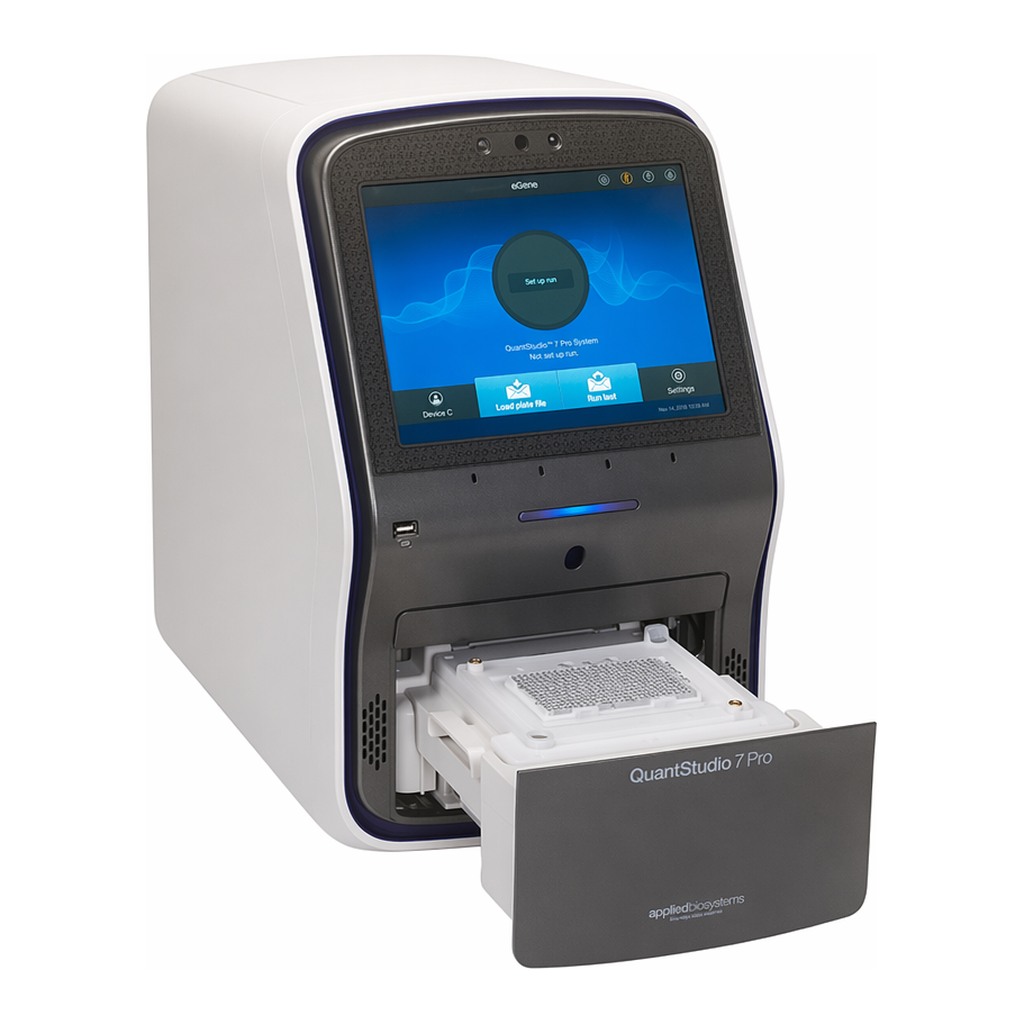

Thermo Fisher Scientific QuantStudio 7 Pro Real-Time PCR System, TaqMan Array Card, laptop

Applied Biosystems™ QuantStudio™ 7 Pro Real-Time PCR System, TaqMan™ Array Card, laptop

The Applied Biosystems QuantStudio 7 Pro Real-Time PCR System adds innovative smart features to the real-time PCR (qPCR) workflow, all in a compact footprint. With facial authentication, voice commands, Smart Help, multiplex capability, motorized interchangeable blocks, simplified workflow, intuitive software, automation capabilities, and a large capacitive touchscreen interface, the QuantStudio 7 Pro system offers exceptional reproducibility with minimal well-to-well and instrument-to-instrument variation. Designed for ultimate ease of use, it delivers high quality, high throughput, and excellent reliability for researchers seeking smarter lab operations.

주요 특징

• 얼굴 인식 및 음성 명령을 통한 핸즈프리 조작
• RFID 기반 TaqMan Array Plates로 오류 및 수동 입력 최소화
• 터치스크린에서 직접 설정, 실행, 모니터링, 분석 가능
• Smart Help 및 Smart Remote Support로 신속한 기술 지원
• 다양한 블록 형식 교체 가능 (96-well, 384-well, TaqMan Array Card 등)
• 자동화 호환성으로 24/7 운영 가능
• Connect 클라우드 플랫폼을 통한 데이터 접근, 분석, 공유
• Instrument Connect 앱을 통한 원격 모니터링
• PC 및 Mac 호환 Design and Analysis 소프트웨어
• 800만 개 이상의 TaqMan Assay와 호환

Easy and Convenient Hands-Free Operation

Hands-free operation with facial authentication and voice commands allows quick access to personal profiles and settings without removing gloves.

Smart qPCR for Ultimate Ease of Use

Embedded RFID readers enable automatic recognition of TaqMan Array Plates with RFID tags, simplifying data tracking and eliminating manual data entry.

Learn more about the TaqMan Array Plates with RFID ›

Peace of Mind with Smart Service

Smart Help allows direct contact with Technical Support from the touchscreen.
Smart Remote Support enables real-time troubleshooting with Technical Support to minimize downtime.

Connect Platform

The Connect platform provides secure cloud-based storage, analysis, and sharing of qPCR data. Compatible with Mac and PC, supporting analyses such as relative quantitation, standard curve, HRM, genotyping, and presence/absence.

Format Flexibility

Supports interchangeable blocks: 96-well (0.2 mL), 96-well (0.1 mL), 384-well, and TaqMan Array Card (TAC).
Automation available with the Orbitor Microplate Mover for high-throughput workflows.

Accomplish More, Faster

Run hundreds of real-time PCR reactions using TaqMan Array 384-well microfluidic cards. Integration with automation maximizes throughput.

High Application Versatility

Applicable to gene expression, genetic variation, and gene regulation studies with reliable assays and intuitive software.

Results You Can Trust

The OptiFlex system features six decoupled excitation and emission filter channels with 21 filter combinations for maximum multiplexing and chemistry flexibility.

Sensitive Data Analysis

Detect target quantity changes as small as 1.5-fold in single-plex reactions and achieve 10 logs of linear dynamic range.

Learn more about available financing options and programs ›

사양

제품 이미지
