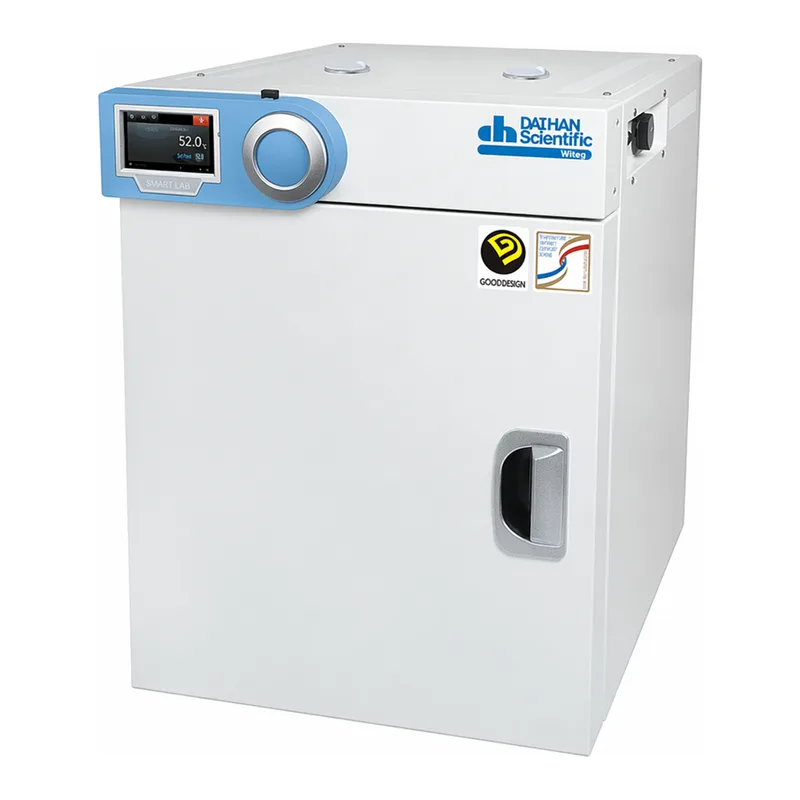

Daihan Science DAIHAN SMART Gravity-air Drying Oven “ThermoStable TM SON”, 3-Side Heating Zone

상품 한눈에 보기

3면 가열 존으로 우수한 온도 균일성과 정밀성을 제공하는 SMART 자연대류식 건조 오븐. Smart-Lab™ 컨트롤러와 4인치 터치스크린, WiRe™ 서비스 지원. 최대 230°C까지 정밀 제어 가능하며, 다양한 용량 모델과 IQ/OQ 검증 서비스 제공.

카탈로그번호: DH-SWON081xxxxx (2개 옵션)
브랜드: Daihan Science
카테고리: Daihan Science
판매단위: ea

#Daihan Science

카탈로그

2개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

장비

Daihan Science DH-SWON08155-EA SMART Oven, Gravity Convection, Window, SON-W155, 155Lit., 120V, 1/Ea ea DH.SWON08155판매 단위 ea ·

재고 확인 필요재고 확인 필요

2,998,800원VAT 포함 3,298,680원

소모품

Daihan Science DH-SWON08105-EA SMART Oven, Gravity Convection, Window, SON-W105, 105Lit., 120V, 1/Ea ea DH.SWON08105판매 단위 ea ·

재고 확인 필요재고 확인 필요

2,590,000원VAT 포함 2,849,000원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science DAIHAN SMART Gravity-air Drying Oven “ThermoStable TM SON”, 3-Side Heating Zone

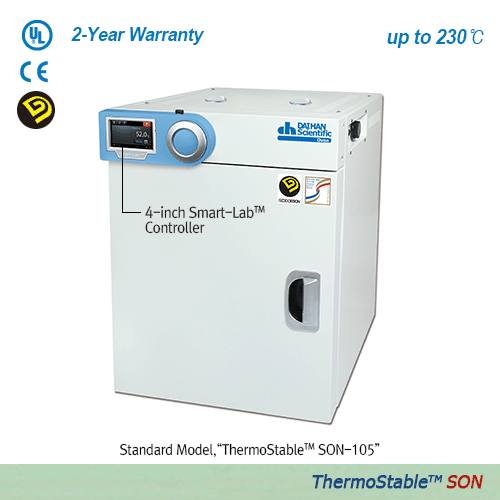

DAIHAN® SMART Gravity-air Drying Oven “SON”

3-Side Heating Zone, 32·50·105·155 Lit.
With Smart-Lab™ Controller, 4” Full Touch Screen, Fuzzy-PID Control, WiRe™ Service, with Certi. & Traceability, up to 230°C, ±0.5°C
스마트 자연 대류식 정열 건조기/오븐, 우수한 온도 정형성/균일성, WiRe™서비스, 4인치 풀터치스크린 조절기

Features

Made in Korea
UL, CUL, and CE Certified
GD(Good Design)-mark
With Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
3-Side Heating Zone: The Best Temp Uniformity & Accuracy by High Performance Heating Mechanism
Digital Fuzzy Control System Implementing Superior Temperature Accuracy
Optimized Air Flow by Gravity-air Mechanism
Smart-Lab™ Controller WiRe™ App Service
- Automatic Data Recording
- Self-Diagnosis Function
- Ergonomic Design 4” Full Touch Screen TFT LCD
- Variable Program Setting for Multiple Patterns with Multiple Segments
- Data transfer to PC via USB memory
- RS232C Interface for Monitoring and Control with PC
- Temperature up to 230°C, Fluctuation ±0.5°C at 100°C
- Suitable for Drying, Baking, Conditioning, Pre-Heating and Aging
- Locking Mode Supported for Experimental Safety
PL(Product Liability) Insurance
2-Year Warranty

3-Side Heating Zone

The Best Temp Uniformity & Accuracy by High Performance Heating Mechanism (Gravity-air Mechanism)

Perfect Door Lock by Double Latch

Specification

Spec.	SON-32	SON-50	SON-105	SON-155
Max. Capacity	32 L	50 L	105 L	155 L
Interior Dimensions (mm)	310×290×360	370×350×420	485×409×535	550×474×600
Exterior Dimensions (mm)	458×557×661	513×617×643	753×719×882	718×777×947
Heater Power	500 W	650 W	1.4 kW	1.6 kW
Temp Range	Room Temp +5°C to 230°C
Temp Fluctuation	±0.5°C at 100°C, ±0.6°C at 150°C	±0.5°C at 100°C, ±0.8°C at 150°C
Temp Variation	±1.2°C at 100°C, ±2.2°C at 150°C	±1.5°C at 100°C, ±2.5°C at 150°C
Sensor	PT 100
Control Resolution	±1°C
Heat-up Time	30 min to 100°C, 45 min to 150°C	35 min to 100°C, 50 min to 150°C
Recovery Time (Door open 30sec)	8 min to 100°C, 10 min to 150°C	12 min to 150°C
Controller	Smart-Lab™ Controller
RS232 Port	Available to connect with PC
Display	4” Full Touch Screen TFT LCD
Timer	99Hr 59 min (delay/continuous function)
Storage	Temperature and Timer setting values
Internal Material	Stainless-steel (#304), Corrosion Resistant
External Material	Powder Coated Steel
Insulation	Glass Wool
Shelf (included)	2 Stainless-steel Wire Shelf, Load per Shelf: 16 kg
Ventilation	Ventilation hole with Stainless-steel Cap, Hole Diameter 40mm
Circulation	Gravity-air Type
Safety Device	Over Temp and Over Current Protector, Sensor Error Detector
Alarm	Error Status and Timer-end
Net Weight (kg)	69	78
Packing Size (mm)	562×664×747	622×754×807	743×819×1068	808×824×1133
Shipping Weight (kg)	59	73	89	79
Power Consumption	502 W	674 W	1390 W	1566 W
Energy Consumption at 100°C	90 Wh	117 Wh	187 Wh	204 Wh
Energy Consumption at 150°C	181 Wh	270 Wh	337 Wh	398 Wh
Electric Requirements	120V, 60Hz or 230V, 50/60Hz

Other Specifications are available upon Customer’s Request.

Ordering Information

(1) SMART Model, Gravity-air, with Wire Shelf

Model No.	Description
DH.SWON05032	Oven, Standard, 230V, 32 Lit, SON-32
DH.SWON05050	Oven, Standard, 230V, 50 Lit, SON-50
DH.SWON05105	Oven, Standard, 230V, 105 Lit, SON-105
DH.SWON05155	Oven, Standard, 230V, 155 Lit, SON-155
DH.SWON06032	Oven, Standard, 120V, 32 Lit, SON-32
DH.SWON06050	Oven, Standard, 120V, 50 Lit, SON-50
DH.SWON06105	Oven, Standard, 120V, 105 Lit, SON-105
DH.SWON06155	Oven, Standard, 120V, 155 Lit, SON-155

(2) SMART Built in Viewing Window Model, Gravity-air, with Wire Shelf

Model No.	Description
DH.SWON07105	Oven, Window, 230V, 105 Lit, SON-W105
DH.SWON07155	Oven, Window, 230V, 155 Lit, SON-W155
DH.SWON08105	Oven, Window, 120V, 105 Lit, SON-W105
DH.SWON08155	Oven, Window, 120V, 155 Lit, SON-W155

Spare Stainless-steel Wire Shelf

Model No.	Description
DH.WON11032	Wire Shelf, for 32 Lit, SON032, w280×d280mm
DH.WON11050	Wire Shelf, for 50 Lit, SON050, w340×d310mm
DH.WON11105	Wire Shelf, for 105 Lit, SON105, w455×d375mm
DH.WON11155	Wire Shelf, for 155 Lit, SON155, w520×d440mm

Gravity-air Oven with Validation (IQ, OQ) Service

Model No.	Description
DH.SWON31032	Validation Service(IQ, OQ), with SON-32, SONV1032
DH.SWON31050	Validation Service(IQ, OQ), with SON-50, SONV1050
DH.SWON31105	Validation Service(IQ, OQ), with SON-105, SONV1105
DH.SWON31155	Validation Service(IQ, OQ), with SON-155, SONV1155
DH.SWON32105	Validation Service(IQ, OQ), with SON-W105, SONV2105
DH.SWON32155	Validation Service(IQ, OQ), with SON-W155, SONV2155
