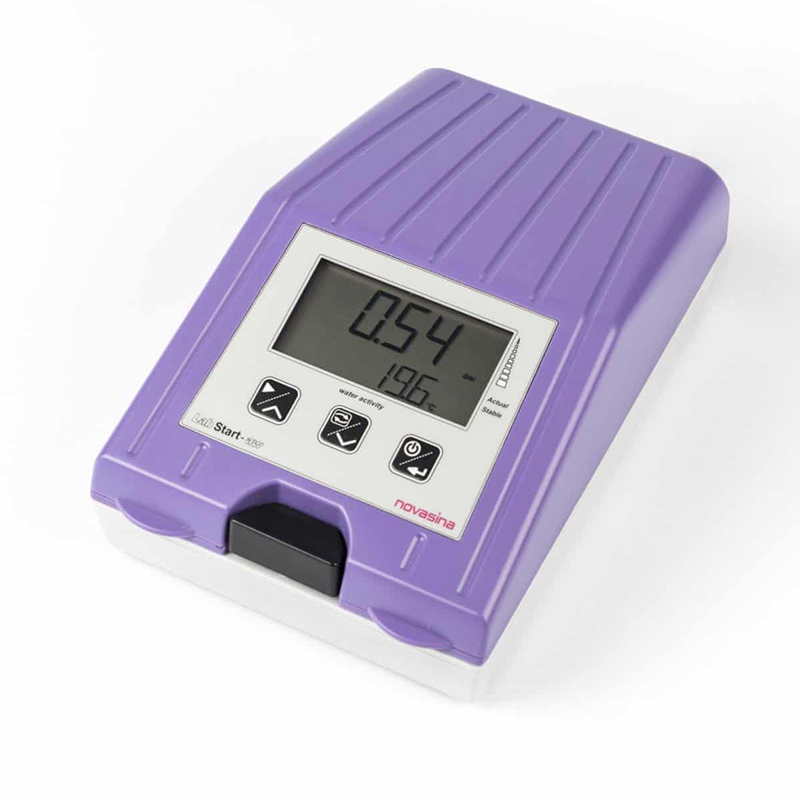

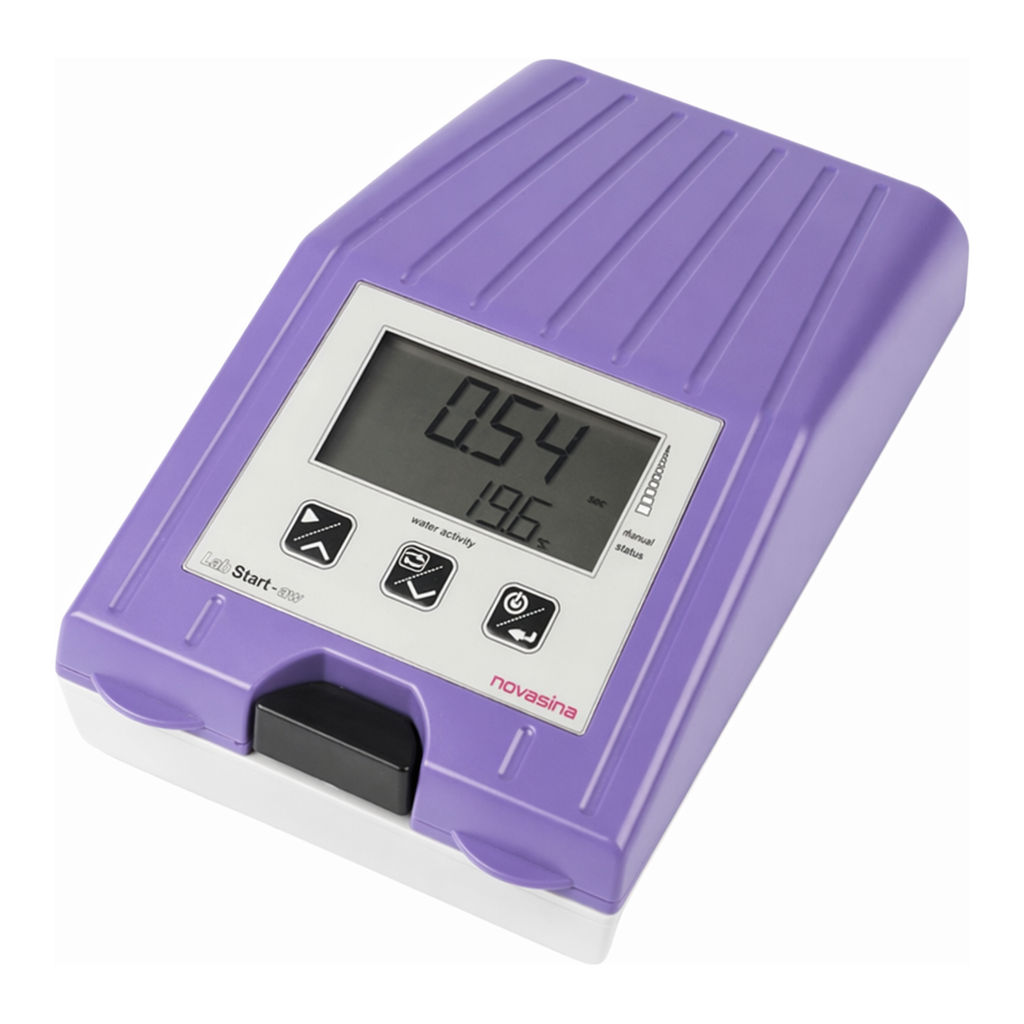

Inexpensive AW meter for measurements in the low to medium AW range, without already having high demands on accuracy and reproducibility.
Ideal for the first step:
designed as a „starter“, proven Novasina technology can be found inside, especially the resistive electrolytic sensor
covers a lower demand on accuracy and reproducibility
Tech Specs
| Meter Specifications | LabStart-aw | |
|---|---|---|
| Versions | N/A | |
| Measurement Specifications | parameter | |
| Water activity | Temperature | |
| Measuring principle | Electrolytic | NTC |
| Measuring range | 0.03…1.00aw | 0…30°C (59…86°F) |
| Adjustment range | 0.11…0.75aw | N/A |
| Resolution | 0.01aw | 0.1°C |
| Accuracy | +/-0.03aw within calibration range | +/-0.15°C |
| Precision | +/-0.01aw within the adjustment range | +/-0.1°C |
| Repeatability | +/-0.01aw within calibration range | N/A |
| Temperature control | no temperature control available | |
| Adjustment point (%rH) | 33%, 75% | |
| Mains connection | 5 VDC, +/-6%, max. Power consumption 10W | |
| Power supply | 90…264 VAC 50/60 Hz | |
| Display | LC-display, dimensions: 35 x 69mm | |
| Communication | N/A | |
| Housing | > Two-part PC/ABS housing, weight: 1.2kg > Dimensions (L x W x H) = 225x140x85mm |
|
| Measuring chamber volume | 15mL | |
| Dimensions sample container | Diameter 30mm x height 14mm | |
| Protection class | IP22 | |
| 21CFR 11 | not compliant | |
Scope of Supply
- Measuring instrument LabStart-aw
- Euro or US mains adapter
- 1 piece SAL-T 75% rH
- 20 Sample dishes ePW
- Replacement pre-filter white (5 Stk.)
- tension ring
- Factory calibration certificate
