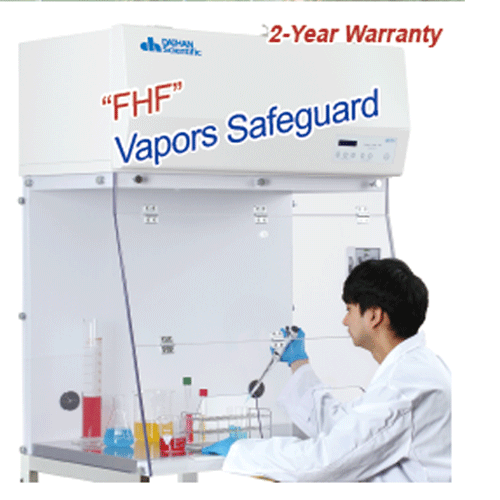

DAIHAN® Premium Filtering Multi-Fume Hood “FHF”

For Acids · Organics(VOCs) · Dust · Smell & Bacteria
Ductless, 5-Filters of 3μm Pre · 0.3μm HEPA · 2×Coated Active Carbon · Active Carbon
3-Side Clear Viewing (PVC Panel), 11” Slanted Front Sash Door (2-Step Opening)
2×Ø220mm Holes on Lower Door for Easy Hand Work
Compliance with ASHRAE 110-1995
필터식 복합 흄후드 / 안전작업대 - 산, 암모니아, 휘발성 유기화합물(VOCs), 포름알데히드, 미세먼지, 악취, 세균 등 정화, 무덕트 벤치탑형

---

주요 특징

• Made in Korea
• 2년 품질보증
• PL(Product Liability Insurance) 적용
• ASHRAE 110-1995 실험실 흄후드 표준 규격 준수
• 덕트 설치 없이 유해가스 정화 및 이동이 용이한 안전 작업공간
• 강력한 흡입력의 고성능 배기팬
• BLDC 팬 모터 기반 작동시간 모니터링 기능
• 8단계 풍량 제어 가능
• 3μm 프리필터 기본 장착, 5중 필터 완전형 선택 가능
• 디지털 PID 터치 컨트롤
• 2×29W LED 조명(6000K)
• 선택 옵션: 스탠드

---

Standard Specifications

Spec.	Model	“FHF-09” w900	“FHF-12” w1200	“FHF-15” w1500
Working Space (w×d×h, mm / Lit.)	884×580×800 / 410L	1184×580×800 / 550L	1484×580×800 / 688L
Air Velocity	0.5m/s, 8 Levels	0.5m/s, 8 Levels	0.5m/s, 8 Levels
Exhaust Fan	70W, BLDC Motor	70W, BLDC Motor	70W, BLDC Motor
5 Framed Filters	Optional 4-Filters (HEPA-H14, Acids, NH₃/CH₂O, VOCs, Active Carbon)	Optional 4-Filters	Optional 4-Filters
Material	Rigid PVC (Chemical Resistant)	Powder-coated Steel	Powder-coated Steel
Front Window	11” Slanted Sash Door (Clear PVC)	Optional Visibility	Optional Visibility
Working Plate	3-Side Viewing	3-Side Viewing	3-Side Viewing
Noise Level	<70dB	<70dB	<70dB
Internal Lighting	2×29W LED (6000K)	2×29W LED (6000K)	2×29W LED (6000K)
Control	Digital PID, Touch-button	Digital PID	Digital PID
Air Velocity Control	ON/OFF	ON/OFF	ON/OFF
Dimensions (w×d×h, mm)	884×580×800	1184×580×800	1484×580×800
Electrical Requirements	1 Phase, AC 230V, 50/60Hz	1 Phase, AC 230V	1 Phase, AC 230V

---

Optional Frame Stand (Powder Coated Steel)

Model	Description	Size (mm)
DH.FHF09S	Stand for w900 Model	910×610×730
DH.FHF12S	Stand for w1200 Model	1210×610×730
DH.FHF15S	Stand for w1500 Model	1510×610×730

---

I. Standard Hood Unit (Prefilter Only)

Model	Description
DH.FHF09	Fume Hood with Prefilter, w900 Model
DH.FHF12	Fume Hood with Prefilter, w1200 Model
DH.FHF15	Fume Hood with Prefilter, w1500 Model

---

II. Complete Hood (5 Filters Included)

5 Framed Filters 구성:

1. 3μm Pre-Filter (Polyester): 메인 필터 보호용
2. 0.3μm HEPA-H14 Filter: 미세먼지 99.995% 제거
3. Chemical Coated Active Carbon Filter
4. Acids/H₂ Fume/Vapors Adsorption Filter
5. Ammonia & Formaldehyde Fume/Vapors Adsorption Filter
6. Active Carbon Filter

Model	Description
DH.FHF09C	Fume Hood Complete with 5 Filters, w900 Model
DH.FHF12C	Fume Hood Complete with 5 Filters, w1200 Model
DH.FHF15C	Fume Hood Complete with 5 Filters, w1500 Model

---

Selection Guide of Framed Filters

Filter	Target	Material	Method
(1) Polyester Pre-Filter	Dust	Synthetic Micro Fiber	Physical (3μm)
(2) HEPA-H14 Filter	Fine Particles	Ultra Micro Fiber Glass	Physical (0.3μm)
(3) Acids Filter	Acidic Vapors	Chemical-coated Active Carbon	Chemical
(4) Ammonia NH₃/CH₂O Filter	Ammonia, Formaldehyde	Chemical-coated Active Carbon	Chemical
(5) VOCs/CH₂O Filter	VOCs	Chemical-coated Active Carbon	Chemical

---

Filter Dimensions

• Prefilter Thickness: 10mm
• HEPA-H14 Filter Thickness: 80mm
• For w900: 460×410×140mm
• For w1200: 760×410×140mm
• For w1500: 1060×410×140mm

---

Ordering Information for Framed Filters

Description	For w900	For w1200	For w1500
(1) 3μm Prefilter	DH.FHF09.F1	DH.FHF12.F1	DH.FHF15.F1
(2) HEPA-H14 Filter (0.3μm, 99.995%)	DH.FHF09.F2	DH.FHF12.F2	DH.FHF15.F2
(3) Acids Filter / Coated Active Carbon	DH.FHF09.F3	DH.FHF12.F3	DH.FHF15.F3
(4) Ammonia / CH₂O Filter / Coated Active Carbon	DH.FHF09.F4	DH.FHF12.F4	DH.FHF15.F4
(5) VOCs / CH₂O Filter / Coated Active Carbon	DH.FHF09.F5	DH.FHF12.F5	DH.FHF15.F5

---
