Thermo Scientific™

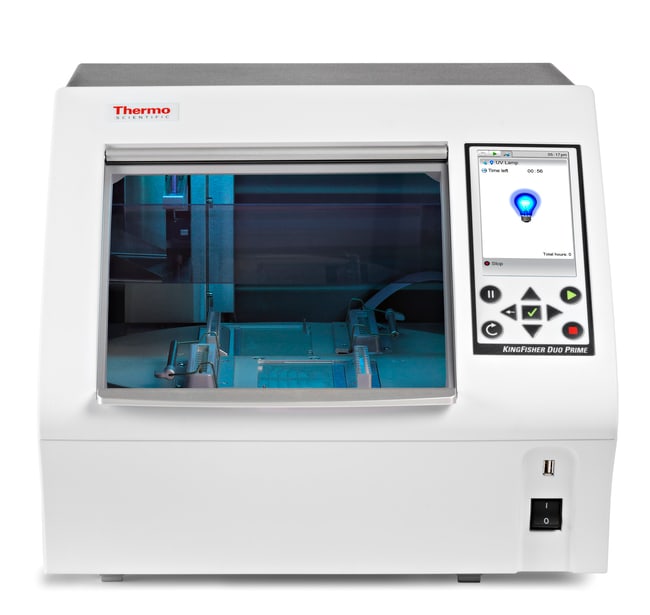

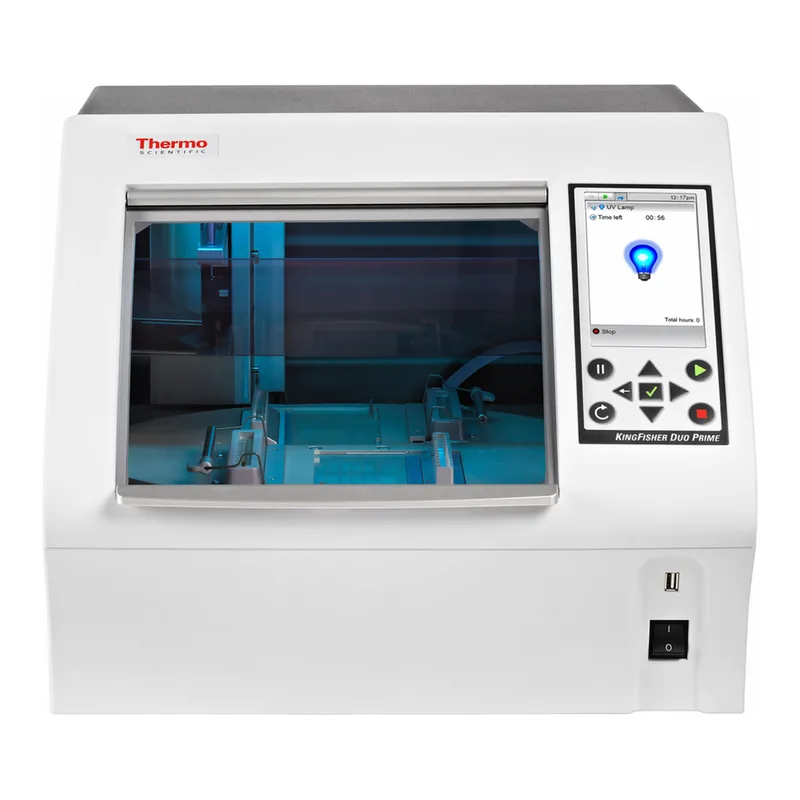

KingFisher™ Duo Prime Purification System

This compact purification instrument provides high quality yields of nucleic acids (DNA/RNA) and proteins with excellent reproducibility and minimal hands-on time.

Reap high yields of quality nucleic acids from a variety of starting materials with the Thermo Scientific™ KingFisher™ Duo Prime purification system. This compact instrument is ideal for laboratories requiring nucleic acid purification, and is easily modified for use in proteomics and cell isolation. It provides excellent reproducibility with minimal hands-on time, and has a small footprint in the lab. New features, including a UV lamp for easy decontamination and optional bar-code reader enhance functionality.

사양

부피(미터법) 프로세싱96 DW plate 50 to 1000 μL, 24 DW plate 200 to 5000 μL, Elution strip 30 to 130 μL

설명KingFisher Duo Prime

Collection Efficiency of Particles≥95%

냉각 온도4° to 75°C in RT (elution strip)

디스플레이LCD color display

용리 스트립Special design, 1 x 12 format

용도(애플리케이션)DNA and RNA isolation from various starting materials, proteomic applications, cell isolation

가열 온도10°C to 75°C in RT (plate row A)

입자 크기(미터법)ca. >1 μm

포트USB

수량Each

실행당 샘플Up to 12 (12-pin magnet head); Up to 6 (6-pin magnet head)

자석 헤드 유형12-pin or 6-pin

UV 노출 시간Up to 16 hr.

UV 램프8W

메모리Space for ca. 200 protocols

플레이트 유형Microtiter 96 Deepwell plate (95040450); KingFisher Flex 24 Deepwell plate (95040470)

프로토콜 가져오기Using PC or USB memory device

깊이(영국식 단위)18.1 in.

깊이(미터법)46 cm

높이(영국식 단위)13.4 in.

높이(미터법)34 cm

중량(영국식 단위)37.5 lb.

중량(미터법)17 kg

폭(영국식 단위)15.7 in.

폭(미터법)40 cm

Unit SizeEach
