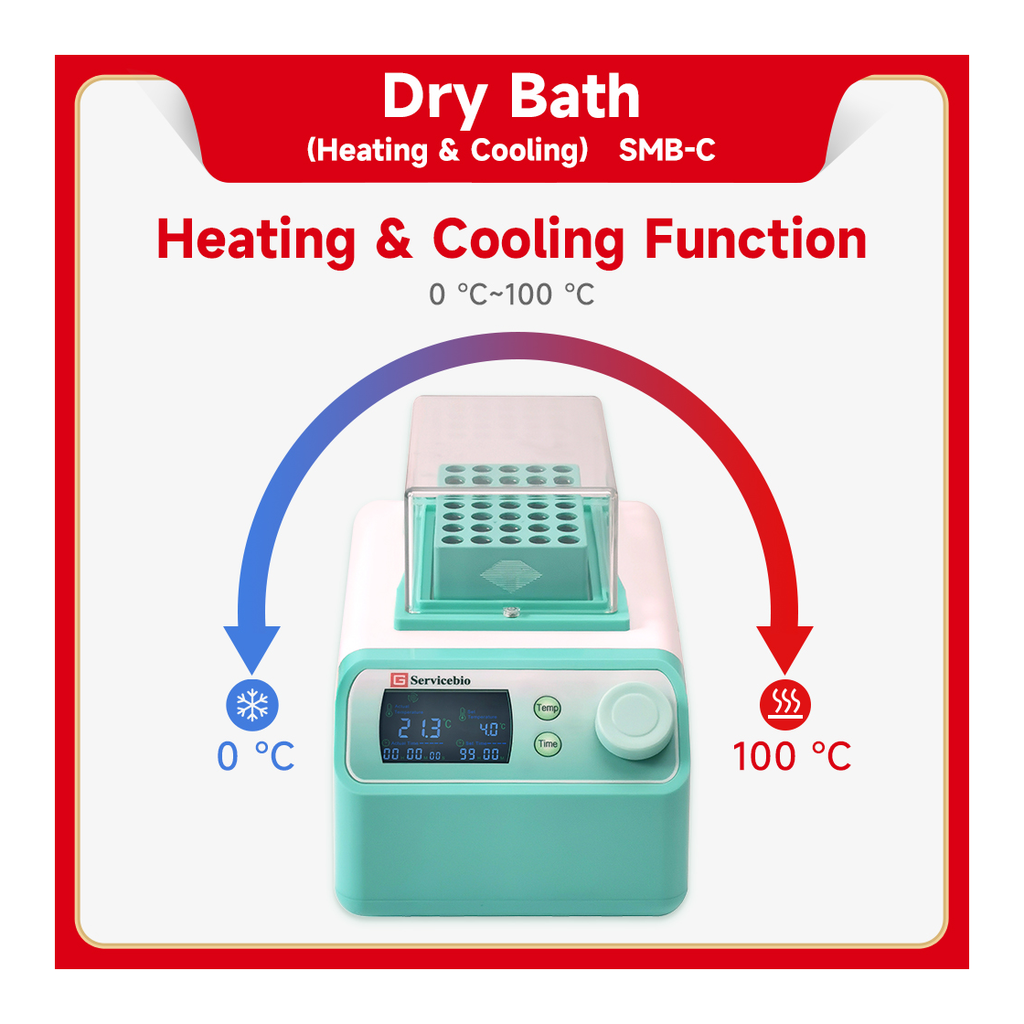

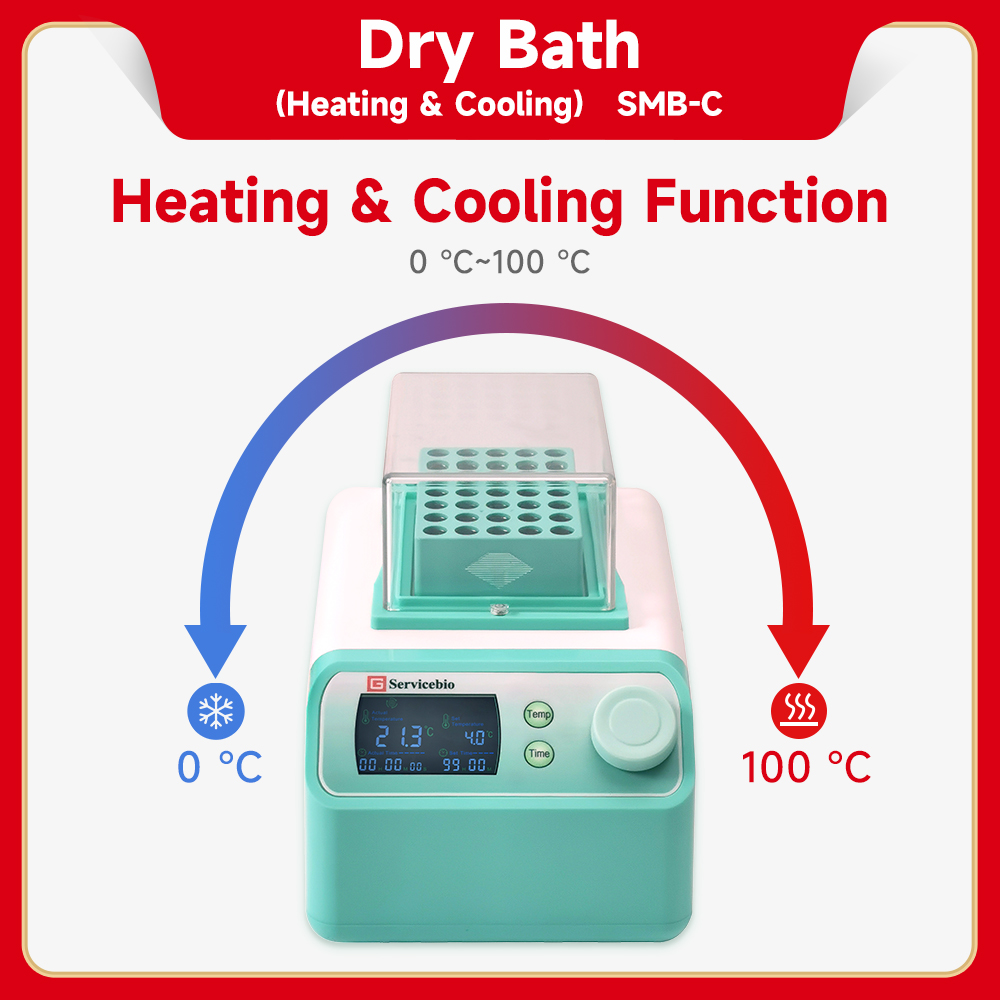

Servicebio Dry Bath (Heating & Cooling)

Product Description:

This product is an advanced microcomputer-controlled dry bath incubator with a wide selection of metal blocks suitable for various test tubes, which can be widely used for sample preservation, enzyme preservation and reaction, pre-denaturation of DNA amplification and electrophoresis, serum coagulation, etc.

---

Normal Working Conditions:

Ambient temperature: 10°C~ 30°C

Relative humidity: ≤ 70%

Input power: AC100 ~ 240

AC frequency: 50Hz/60Hz

Output power: 24V 6.25A 150W

Note: Before using the instrument, please confirm that the operating conditions meet the above requirements.

---

Transportation a**nd Storage Conditions:**

Ambient temperature: -20°C ~ +55°C

Relative humidity: <80%

---

Basic Parameters:

M**odel**	SMB-C
Standard Module	A: 1.5 mL X 35
Optional Modules	B: 0.5 mL X 54
C: 0.2 mL X 96
D: 2.0 mL X 35
E: 0.2 mL X 32+1.5 mL X 25
F: 5 mL X 24
G: 15 mL X 12 (high lid)
H: 50 mL X 6 (high lid)
I: 0.2 mL X 96 ( ELISA plate)
J: 0.2 mL X 32+0.5 mL X 10+1.5 mL X 15
Dimensions (mm)	175x278x197
Weight (kg)	3.3

Note: Metal modules can be customized according to user requirements, if you need customized modules, please contact the supplier.

---

P**erformance:**

1. Temperature range: 0-100℃

2. Timing range: 1min-99h59min

3. Cooling time: (room temperature drops to 20°C below room temperature) ≤ 15 min

4. Heating time: (room temperature rises to 100°C) ≤ 12 min

5. Temperature control accuracy: ≤±0.3℃

6. Temperature uniformity: ≤±0.5℃

---

Technical P**arameter** C**omparison:**

Cat. No.	SMB-C	SMB-H	SMB-PC	SMB-MH
Programming Function	_	_	Programmable	_
Horizontal Amplitude	_	_	_	3 mm
Speed Range	_	_	_	100-2000 rpm
Temperature Control Range	0-100℃	RT+5℃-100℃	0-100℃	Room temperature -100℃
Temperature Setting Range	0-100℃	RT+5℃-100℃	0-100℃	Room temperature -100℃
Timing Range	1min- 99h59min	1min- 99h59min	1min- 99h59min	1min- 99h59min
Module Temperature Stability @40-100℃	≤±0.5℃	≤±0.5℃	≤±0.5℃	≤±0.5℃
Module Temperature Uniformity @40℃	≤±0.3℃	≤±0.3℃	≤±0.3℃	≤±0.5℃
Module Temperature Uniformity >@40℃	≤±0.5℃	≤±0.5℃	≤±0.5℃	≤±0.5℃
Temperature Display Accuracy	0.1℃	0.1℃	0.1℃	0.1℃
≤15 min (20℃-100℃)	≤15 min (20℃-100℃)	≤15 min (20℃-100℃)	≤15 min (room temperature-100℃)
Sample Processing Capacity	1 standard module	1 standard module	1 standard module	1 standard module
Input Power Supply	AC100V/AC 220V 50Hz/60Hz	AC100V/AC 220V 50Hz/60Hz	AC100V/AC 220V 50Hz/60Hz	AC100V/AC 220V 50Hz/60Hz
Power	150 W	150 W	150 W	216 W
Fuse	250V/3A	250V/3A	250V/3A	250V/3A
Overall Dimension	175*278*197mm	175*278*197mm	175*278*197mm	175*278*226mm
Net Weight	3.3 kg	2.2 kg	3.3 kg	10.4 kg
