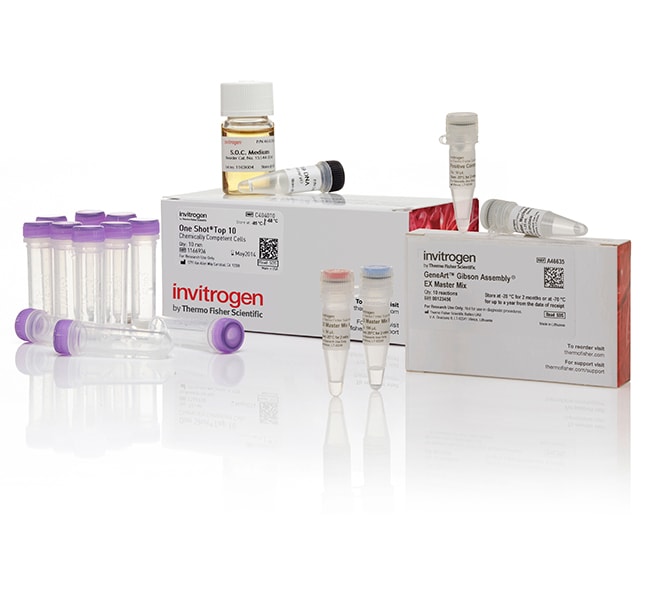

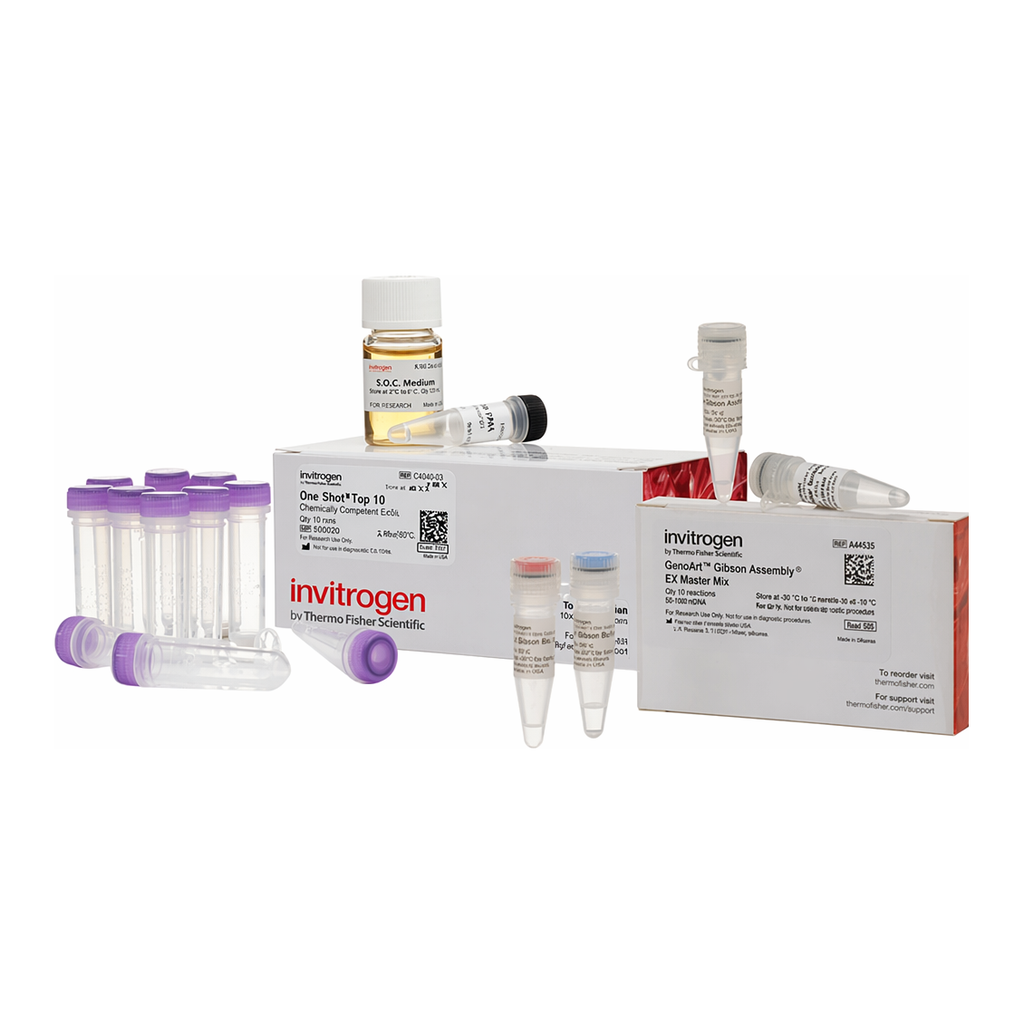

Thermo Fisher Scientific GeneArt Gibson Assembly EX Cloning Kit, chemically competent cells

Invitrogen™ GeneArt™ Gibson Assembly EX Cloning Kit, Chemically Competent Cells

The GeneArt Gibson Assembly EX Cloning Kit enables seamless DNA assembly of up to 15 overlapping fragments in a single-tube, two-step optimized reaction. This method allows uniform assembly using complementary overlaps and is suitable for small or large DNA constructs, including multiple inserts or entire genomes. The resulting products can be used for transformation, PCR, and rolling circle amplification (RCA).

Kit Components

• Master Mix
• Positive Control
• Water
• One Shot TOP10 Chemically Competent E. coli

Key Features

• Simple — Seamlessly assemble and clone up to 15 DNA fragments in one reaction
• Efficient — High efficiency for both simple and challenging constructs
• Flexible — Design guidelines enable assembly into any vector
• Convenient — Available as master mix or complete cloning kits with competent cells
• Trusted — Over 4000 citations demonstrating proven success

Seamless Assembly of up to 15 Fragments

A robust, two-step process combining up to 15 inserts and vector in a proprietary enzymatic mix. DNA fragments with shared terminal homology are assembled without extra sequences or scars. The 20–40 bp end homology can be designed during synthesis or engineered by PCR. The enzyme mix ensures covalently bound, seamless DNA constructs with high efficiency.

Robust Method for Maximum Efficiency

The covalently bound final product enables use of chemically or electrocompetent cells for optimal transformation efficiency. No restriction enzymes, ligation, or recombination sites are required, resulting in perfectly seamless constructs.

Versatility and Workflow Optimization

Allows rapid combination, addition, deletion, or exchange of DNA segments without subcloning. Streamlines cloning workflows and saves time.

Available Formats

• GeneArt Gibson Assembly EX Cloning Kit, chemically competent cells (One Shot TOP10)
• GeneArt Gibson Assembly EX Cloning Kit, electrocompetent cells
• GeneArt Gibson Assembly EX Master Mix kits
