Thermo Scientific™

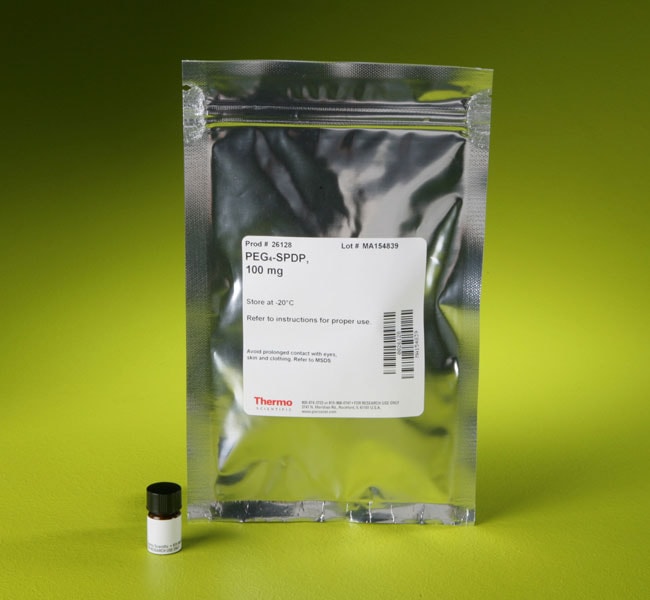

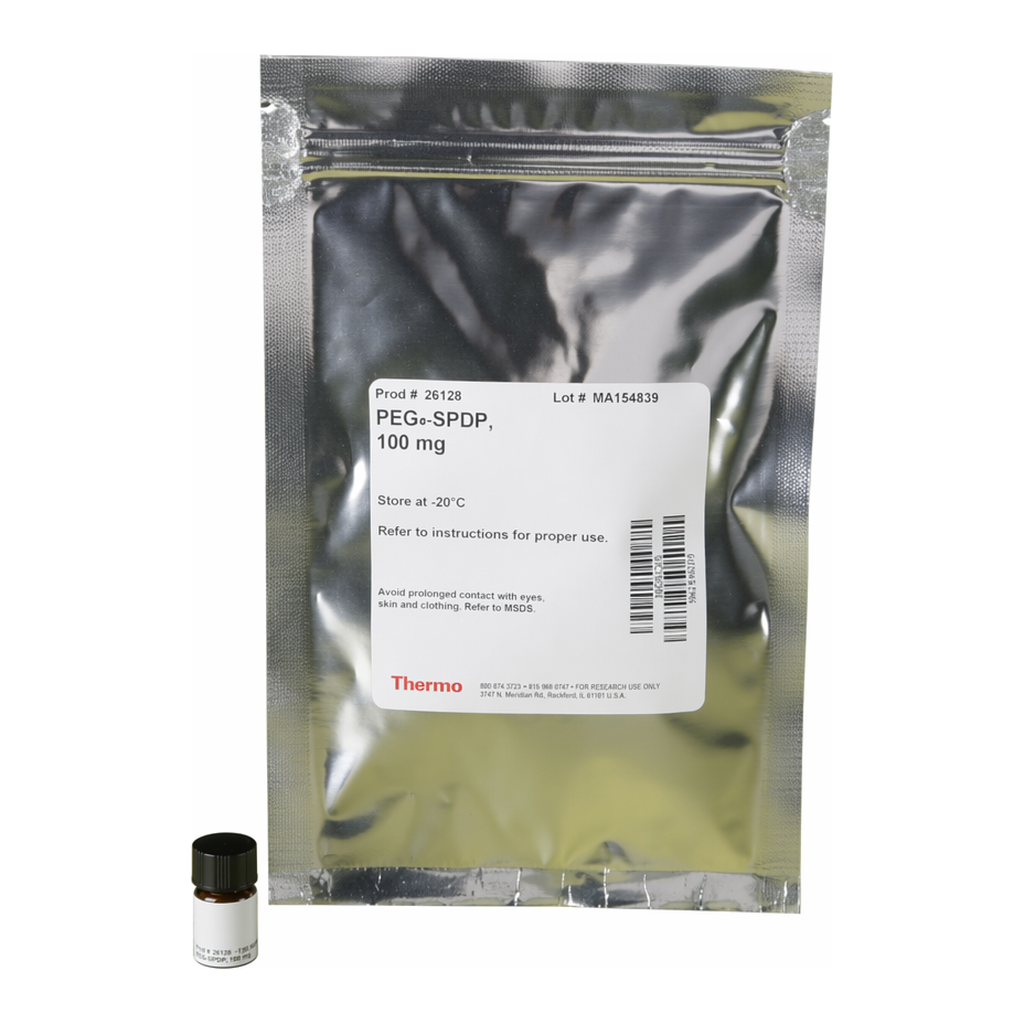

PEG4-SPDP (PEGylated, long-chain SPDP crosslinker)

Thermo Scientific Pierce PEG4-SPDP is a multifunctional crosslinker for protein conjugation via amine-to-amine or amine-to-sulfhydryl crosslinks that contain a 4-unit자세히 알아보기

Thermo Scientific Pierce PEG4-SPDP is a multifunctional crosslinker for protein conjugation via amine-to-amine or amine-to-sulfhydryl crosslinks that contain a 4-unit polyethylene glycol (PEG) group and a reducible (cleavable) disulfide bond.

Features of PEG4-SPDP:

• Efficient amine conjugation—NHS ester provides effective conjugation to lysines, N-termini of peptides and other primary amines
• Reversible sulfhydryl conjugation—pyridyldithiol group enables disulfide linkage with reduced cysteines and other sulfhydryl groups, providing a stable but cleavable bond
• Polyethylene glycol—PEG groups are flexible, non-immunogenic, hydrophilic, and often enhance the solubility of attached molecules
• Spacer arm—connects primary amines and sulfhydryl targets at distances up to 25.7 angstroms; compare to PEG12-SPDP (54.1 angstroms)

SPDP-type reagents have an amine-reactive N-hydroxysuccinimide (NHS) ester at one end and a suflhydryl-reactive 2-pyridyldithiol group at the opposite end. PEG4-SPDP has a 4-unit polyethylene glycol spacer arm, which confers greater solubility to the crosslinker and linked proteins compared to crosslinkers having only hydrocarbon spacers. Pyridyldithiol reagents produce disulfide-containing linkages that can be cleaved with reducing agents such as dithiothreitol (DTT). Crosslinking experiments with SPDP reagents are not limited to those involving proteins. Any of a variety of molecules with primary amines and sulfhydryl groups can be modified or crosslinked using an SPDP reagent.

Conjugation of SPDP reagents to primary amines reactions via the NHS ester is most commonly performed at pH 7 to 8 in phosphate, carbonate/bicarbonate or borate buffer. Other buffers that do not contain primary amines (or thiols or disulfide reducing reagents—see the sulfhydryl reactivity discussion) are also effective.

Reaction with the sulfhydryl-reactive pyridyldithio group can be performed with (simultaneously) or following the amine reaction, and it occurs optimally at pH 7 to 8. The reaction results in pyridine-2-thione displacement, the concentration of which can be determined by measuring the absorbance at 343nm. Reaction buffers must be free of thiols and disulfide reducing agents until quenching or reduction of the 2-pyridyldithio is desired.

Product References:
Crosslinker Application Guide -- search for recent literature references for this product

Related Products
PEG12-SPDP (PEGylated, long-chain SPDP crosslinker)
SPDP (succinimidyl 3-(2-pyridyldithio)propionate)

사양

화학물질 반응성Amine-Sulfhydryl

CleavableBy Thiols

설명PEG4-SPDP

분자량559.65

페길레이티드Yes

스페이서 암 길이25.7 Å

세포 투과성No

배송 조건Ambient

제품라인Pierce™

라벨링 방법Chemical Labeling

교차결합제 유형Heterobifunctional

반응성 부분NHS Ester, Pyridyldisulfide

스페이서Medium (10 to 30 Å)

형태Liquid

수량100 mg

용해도Water

형식Standard

수용성Yes

제품 유형Crosslinker

Unit SizeEach
