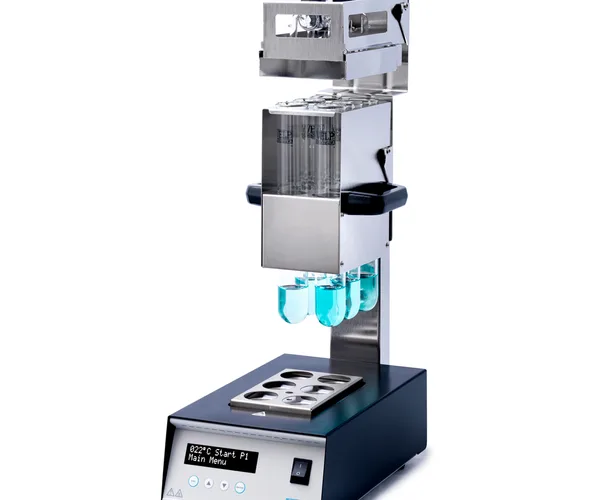

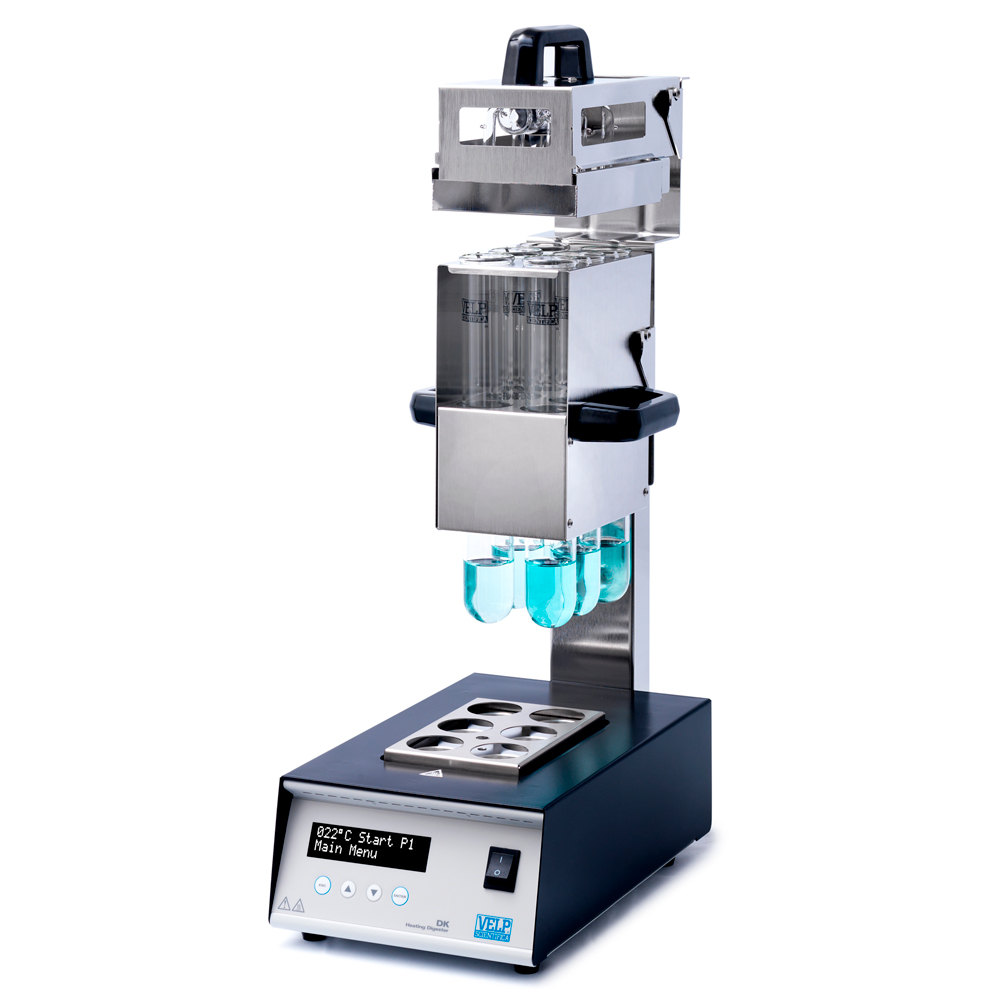

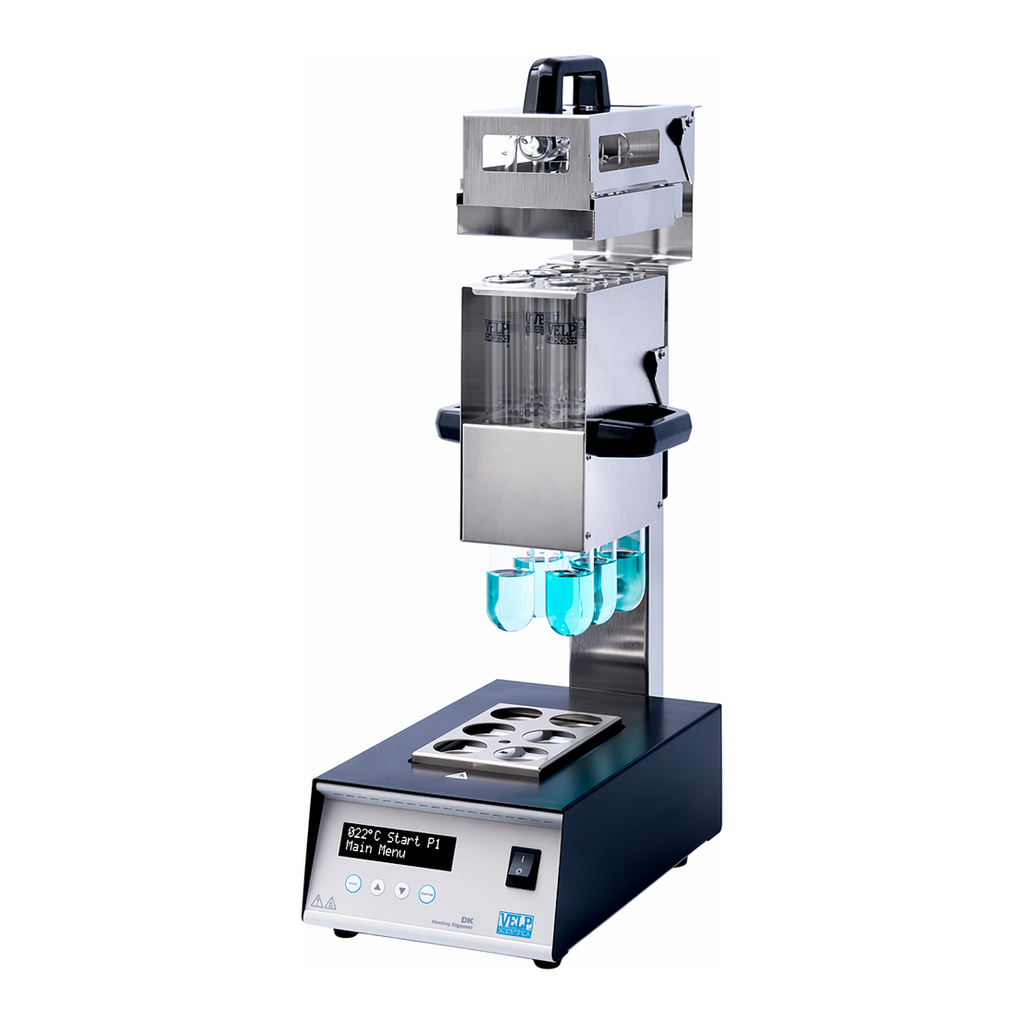

VELP DK 6 Digestion Unit

Thermal homogeneity and precision

The DK 6 Series digestion unit with aluminum heating block ensures high thermal homogeneity heating up to 450 °C. The temperature of the block is constantly controlled by a microprocessor and is extremely stable, homogeneous and precise: ±0.5°C at all selectable temperatures.

The DK 6 Series guarantees accuracy and repeatability. The DK 6 series perform batch digestion of up to 6 samples with 250 ml test tubes - Ø 42 m, reducing the energy consumption (-13% compared to the previous series). Low energy consumption provides lower costs of analysis and limits CO2 release.

Space saving design

The design of the DK series has been carefully engineered to allow laboratories to save valuable space under the hood.

DK Digesters have very compact dimensions: the new aluminum heating block has been lowered and the vertical proportions allow to free precious space in the laboratory.

The structure is made of stainless steel that has been specifically designed and tested to ensure strong resistance to chemicals and mechanical stress.

The aluminum block protection grid provides enhanced heating performance and protects the heating block from splashes and chemicals.

Easy-to-use with the intuitive digital interface

The bright digital display provides maximum visibility and easy-to-read information.

The instrument is operated with 4 keys to navigate the menu options and program the digestions in a simple and fast way.

Through the intuitive graphic display it is possible to set up to 20 methods with 4 temperature ramps.

Acoustic signals inform the operator of the completion of the analysis facilitating the daily use of the digester.

The inclination of the front panel protects it from chemical spillage at high temperatures.

COD digestion with DK 6

DK 6 is a versatile digester suitable for Kjeldahl N/Protein applications and Chemical Oxygen Demand in the environmental industry.

In order to use the DK 6 for COD (Chemical Oxygen Demand) is necessary to configure it by adding a different support system able to manage all the glass required for the COD analysis for processing 6 samples simultaneously.

Trace Determination of Heavy Metals

The DK 6 and TMD 6 are the reliable solution for digestion with aqua regia (nitrohydrochloric acid) in order to determine the acid-soluble proportion of metals in sewage sludges, sediments and soils In accordance with official methods (DIN 38414-S7 standard).

• Water-jacketed condensers of TMD 6 retain all Hg, Cd, Pb, Cr, Cu, Zn, etc.
• TMD 6 is composed of high quality glass components with supports for DK 6
• Excellent accuracy and precision with a temperature homogeneity of ± 0,5 °C
• Space saving design
• Intuitive interface
• TEMSTM Technology

Fume Neutralization System

For applications where the digestion process produces fumes, acid gases or corrosive substances, the below specific accessory is strongly recommended:

• KS 1000 Scrubber neutralizes all the fumes

TEMS™ Technology

DK Series Kjeldahl digestion units work with the innovative TEMS™ benefits, for huge savings.

Time Saving: rapid heating reduces wasted time
Energy Saving: limited energy consumption thus cutting CO2 emissions
Money Saving: cost reduction for each analysis
Space Saving: the narrow footprint saves valuable laboratory bench space

TECHNICAL DATA

CONSTRUCTION MATERIAL:	Epoxy painted with chemical resistant coating
TEMPERATURE RANGE:	Ambient to 450 °C / 842 °F
STABILITY OF THE HEATING BLOCK TEMPERATURE:	± 0,5 °C
PRECISION OF THE HEATING BLOCK TEMPERATURE:	± 0,5 °C
SET TEMPERATURE:	Digital readout in °C or °F
TEMPERATURE CALIBRATION:	Automatic
SELECTABLE RAMPS:	up to 4 per program
DIGESTION TIME RANGE:	1 to 999 minutes
TIME SELECTION:	1-minute steps
COUNTDOWN:	Digital readout
SELECTABLE LANGUAGE:	EN, IT
HEATING POSITIONS	6-position
SIZE OF TUBES	250 ml test tubes (Ø 42 mm)
POWER:	1000 W
DIMENSIONS (WXHXD): (ALUMINUM BLOCK ONLY)	220x140x350 mm 8.7x5.5x13.8 in
DIMENSIONS (WXHXD):	220x690x350 mm 8.7x17.2x13.8 in
WEIGHT:	9 kg (35.7 lb)

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

DK Series Kjeldahl Digestion Units - Brochure
DK 6 Kjeldahl Digestion Units - COD Leaflet
DK 6 Kjeldahl Digestion Units - TMD Leaflet
Analytical Instruments - Line Brochure
Product Portfolio - Brochure
Valuable Information On Kjeldahl Method

Comparison tables

Select the category of products you are interested in and this tool will give you an easy overview of what is available at VELP in order to find the product that is perfect for you. These comparison tables provide a brief description with side by side features from basic equipment to the most advanced analytical solutions.

VELP Test Tubes Comparison Table

Application notes

Choose among a comprehensive library of Application Notes / White Papers and learn more on how to optimize the performance of your VELP instruments. These documents offer typical analyses of well-known samples, together with official references and suggestions, to make you an expert!

E-book - Barley and Feed: N/Protein Determination and Fiber Determination
E-book - Kjeldahl and Dumas Method Comparison: N/Protein Determination in Feed
Guidelines for choosing the correct Velp Kjtabs in Kjeldahl Analysis
Casein Determination in Milk - Kjeldahl method
N/Protein Determination in Cereals - Kjeldahl method
N/Protein Determination in Cheese - Kjeldahl method
N/Protein Determination in Feed - Kjeldahl method
N/Protein Determination in Fishmeal - Dumas and Kjeldahl method comparison
N/Protein Determination in Milk - Kjeldahl method
N/Protein Determination in Milk Powder - Kjeldahl method
N/Protein Determination in Probiotic Drinks - Kjeldahl method
N/Protein Determination in Soybean - Kjeldahl method
Nitrogen and Protein Determination in Commercial Whole Liquid Milk - Dumas vs Kjeldahl Method
Nitrogen and Protein Determination in Insect Flour: Kjeldahl and Dumas comparison
Nitrogen Determination in Engine Oil - Kjeldahl method
TKN Determination in Water and Wastewater
Total Dietary Fiber in Corn Flakes
Total Nitrogen determination in Urea – Dumas vs Kjeldahl Method
Whey Protein Determination in Milk

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CE Declaration of Conformity VELP Scientifica Digestion System and Hydrolysis
