GBRAIN Electrode arrays for animal experiments Custom FPCB 64ch Au
AI 생성AI가 생성·보정한 이미지예요. AI는 실수할 수 있으니 실제 제품과 다를 수 있어요.
1 / 2
GBRAIN

GBRAIN Electrode arrays for animal experiments Custom FPCB 64ch Au

상품 한눈에 보기

소동물부터 대동물, 인간까지 적용 가능한 커스텀 FPCB 64채널 금(Au) 전극 어레이. 고해상도 신경 신호 측정과 자극 실험에 적합하며, 다수의 연구 논문과 임상시험에서 검증된 제품. 다양한 커넥터 타입 및 맞춤형 제작 가능.

카탈로그번호
4개 옵션
브랜드
GBRAIN
카테고리
ECoG Arrays
판매단위
ea
#GBRAIN#Surface Electrodes#ECoG Arrays

카탈로그

4개 옵션
회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.
GBRAIN 64ch Au attached MEA_A64-Au-10 x 10, 300um, Monkey / Porcine / Rabbit, CN64 or Custom (CN32외 에 더 큰채널 요구시 별도 협의 필요), Non-sterile, single use판매 단위 ea
재고보유
1,300,000원VAT 포함 1,430,000원
GBRAIN 64ch connector_CN64, Omnetics - Zif, Non-sterile, Reusable판매 단위 ea
재고보유
600,000원VAT 포함 660,000원
GBRAIN 32ch connector_CN32, Omnetics - Zif, Non-sterile, Reusable판매 단위 ea
재고보유
400,000원VAT 포함 440,000원
GBRAIN 16ch connector_CN16, Omnetics - Zif, Non-sterile, Reusable판매 단위 ea
재고보유
360,000원VAT 포함 396,000원
재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

GBRAIN · GBRAIN Electrode arrays for animal experiments Custom FPCB 64ch Au

GBRAIN Electrode Arrays for Animal Experiments - Custom FPCB 64ch Au

제품 개요

  • 소동물, 대동물 및 인간 대상 신경계 실험용 커스텀 FPCB 64채널 금(Au) 전극 어레이
  • 고해상도 신경 신호 측정 및 자극 실험에 적합
  • 다양한 연구 논문 및 임상시험에서 검증된 제품

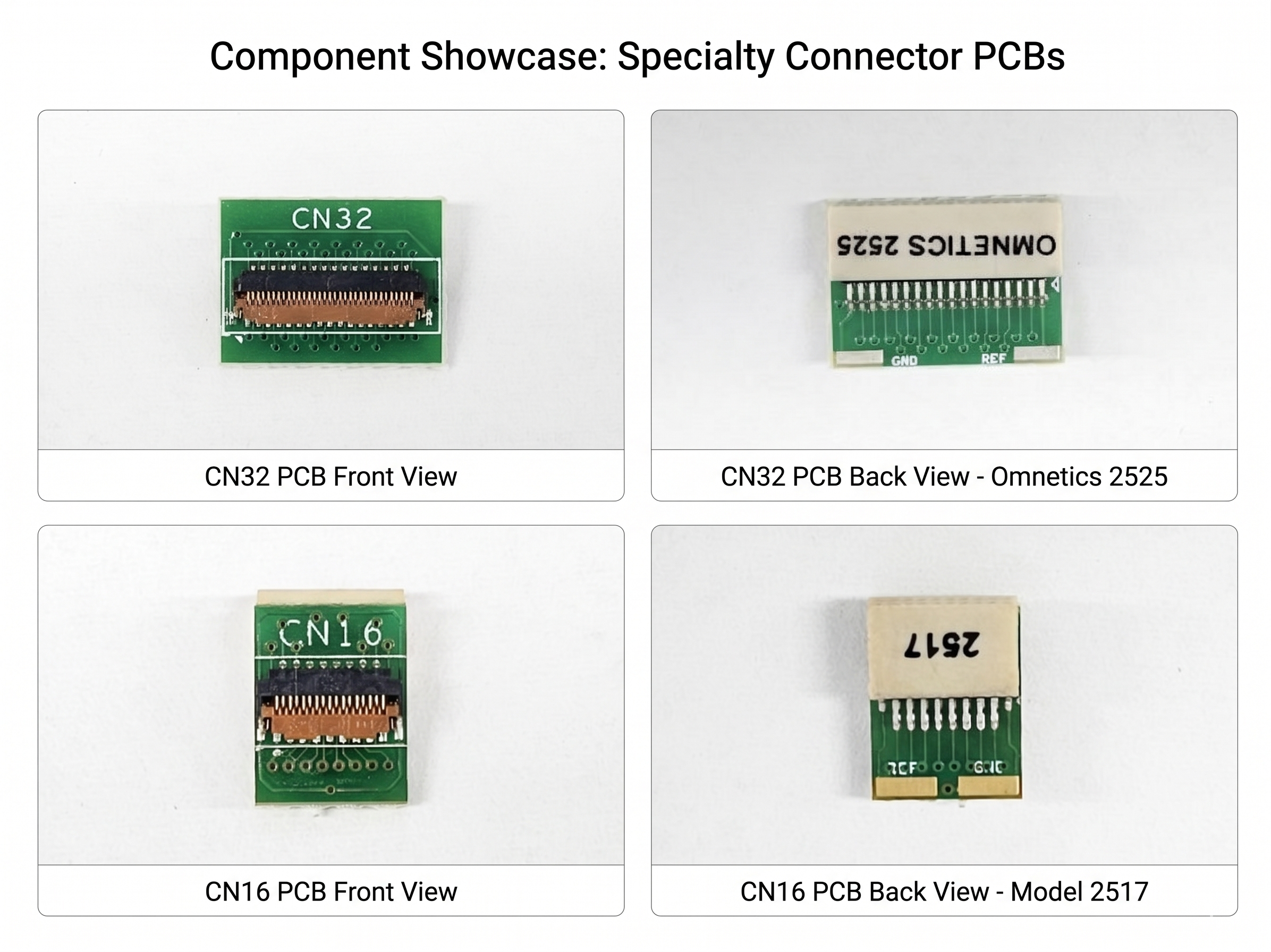

Component Showcase: Specialty Connector PCBs

이미지 설명
CN32 CN32 PCB Front View
OMNETICS 2525
GND REF		 CN32 PCB Back View - Omnetics 2525
CN16 CN16 PCB Front View
2517
REF GND		 CN16 PCB Back View - Model 2517

Journal Paper References

논문 제목 저자 저널 발행연도
Tinnitus: prospects for pharmacological interventions with a seesaw mode Hannah et al. The Neuroscientist 2018
Epidural Electrotherapy for Epilepsy Park et al. Small 2018
Graphene-electrode array for brain map remodeling of the cortical surface Lee et al. NPG Asia Materials 2021
A Miniaturized Wireless Neural Implant with Body-Coupled Power Delivery and Data Transmission Lee et al. IEEE Journal of Solid-State Circuits 2022
Altered synaptic plasticity of the longitudinal dentate gyrus network in noise-induced anxiety Pak et al. iScience 2022
Hybrid graphene electrode for the diagnosis and treatment of epilepsy in free-moving animal models Lim et al. NPG Asia Materials 2023
Cortical surface plasticity promotes map remodeling and alleviates tinnitus in adult mice Pak et al. Progress in Neurobiology 2023
Neurodiagnostic and neurotherapeutic potential of graphene nanomaterials Yang et al. Biosensors and Bioelectronics 2024
Injectable 2D Material-Based Sensor Array for Minimally Invasive Neural Implants Kim et al. Advanced Materials 2024

Poster Presentations

제목 저자 학회 연도
Correlation of Pig Vocalization with Brainwaves Measured by Graphene-based Cortical Electrode Kim et al. EMBC 2023

해당 제품은 연구용 제품입니다.

  • Research Use Only

자료 다운로드

주문정보

등재 코드 FPCB Type 전극 정보 커버리지 사이즈 채널 사이즈 적용 가능 동물 연결 방식 멸균 여부 재사용 여부 품명/규격
32-125150-A-L FPCB(Long)10cm 32ch Au 2.3 x 2.4 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-1.25 x 1.5
32-290290-A-L FPCB(Long)10cm 32ch Au 3.7 x 4.9 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-2.9 x 2.9
32-230150-A-L FPCB(Long)10cm 32ch Au 2.3 x 4.5 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-2.3 x 1.5
32-200180-A-L FPCB(Long)10cm 32ch Au 2.5 x 4.7 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-2.0 x 1.8
32-197797-A-L-R FPCB(Long)10cm 32ch Au 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-1.97 x 7.97 (Right)
32-197797-A-L-L FPCB(Long)10cm 32ch Au 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-1.97 x 7.97 (Left)
32-125150-G-L FPCB(Long)10cm 32ch Gr 2.3 x 2.4 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-1.25 x 1.5
32-290290-G-L FPCB(Long)10cm 32ch Gr 3.7 x 4.9 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-2.9 x 2.9
32-230150-G-L FPCB(Long)10cm 32ch Gr 2.3 x 4.5 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-2.3 x 1.5
32-200180-G-L FPCB(Long)10cm 32ch Gr 2.5 x 4.7 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-2.0 x 1.8
32-197797-G-L-R FPCB(Long)10cm 32ch Gr 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-1.97 x 7.97 (Right)
32-197797-G-L-L FPCB(Long)10cm 32ch Gr 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-1.97 x 7.97 (Left)
32-125150-A-S FPCB(Short)1cm 32ch Au 2.3 x 2.4 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-1.25 x 1.5
32-290290-A-S FPCB(Short)1cm 32ch Au 3.7 x 4.9 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-2.9 x 2.9
32-230150-A-S FPCB(Short)1cm 32ch Au 2.3 x 4.5 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-2.3 x 1.5
32-200180-A-S FPCB(Short)1cm 32ch Au 2.5 x 4.7 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-2.0 x 1.8
32-197797-A-S-R FPCB(Short)1cm 32ch Au 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-1.97 x 7.97 (Right)
32-197797-A-S-L FPCB(Short)1cm 32ch Au 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Au-1.97 x 7.97 (Left)
32-125150-G-S FPCB(Short)1cm 32ch Gr 2.3 x 2.4 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-1.25 x 1.5
32-290290-G-S FPCB(Short)1cm 32ch Gr 3.7 x 4.9 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-2.9 x 2.9
32-230150-G-S FPCB(Short)1cm 32ch Gr 2.3 x 4.5 mm 100um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-2.3 x 1.5
32-200180-G-S FPCB(Short)1cm 32ch Gr 2.5 x 4.7 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-2.0 x 1.8
32-197797-G-S-R FPCB(Short)1cm 32ch Gr 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-1.97 x 7.97 (Right)
32-197797-G-S-L FPCB(Short)1cm 32ch Gr 8.7 x 5 mm 150um Rat / Mouse CN32 Non-sterile single use MEA_A32-Gr-1.97 x 7.97 (Left)
32-17701600-A-C Custom FPCB 32ch Au 15 x 21.4 mm 1000um Monkey / Porcine / Rabbit CN32 Non-sterile single use MEA_A32-Au-17.7 x 16.0
32-15002500-A-C Custom FPCB 32ch Au 16 x 26 mm 1000um Monkey / Porcine / Rabbit CN32 Non-sterile single use MEA_A32-Au-15 x 25
32-17701600-G-C Custom FPCB 32ch Gr 15 x 21.4 mm 1000um Monkey / Porcine / Rabbit CN32 Non-sterile single use MEA_A32-Gr-17.7 x 16.0
32-15002500-G-C Custom FPCB 32ch Gr 16 x 26 mm 1000um Monkey / Porcine / Rabbit CN32 Non-sterile single use MEA_A32-Gr-15 x 25
64-10001000-A-C Custom FPCB 64ch Au 10.5 x 10.5 mm 300um Monkey / Porcine / Rabbit CN64 / Custom Non-sterile single use MEA_A64-Au-10 x 10
64-10001000-G-C Custom FPCB 64ch Gr 10.5 x 10.5 mm 300um Monkey / Porcine / Rabbit CN64 / Custom Non-sterile single use MEA_A64-Gr-10 x 10
CN16 Connecter 16ch connector - - - Omnetics - Zif Non-sterile Reusable 16ch connector_CN16
CN32 Connecter 32ch connector - - - Omnetics - Zif Non-sterile Reusable 32ch connector_CN32
CN64 Connecter 64ch connector - - - Omnetics - Zif Non-sterile Reusable 64ch connector_CN64

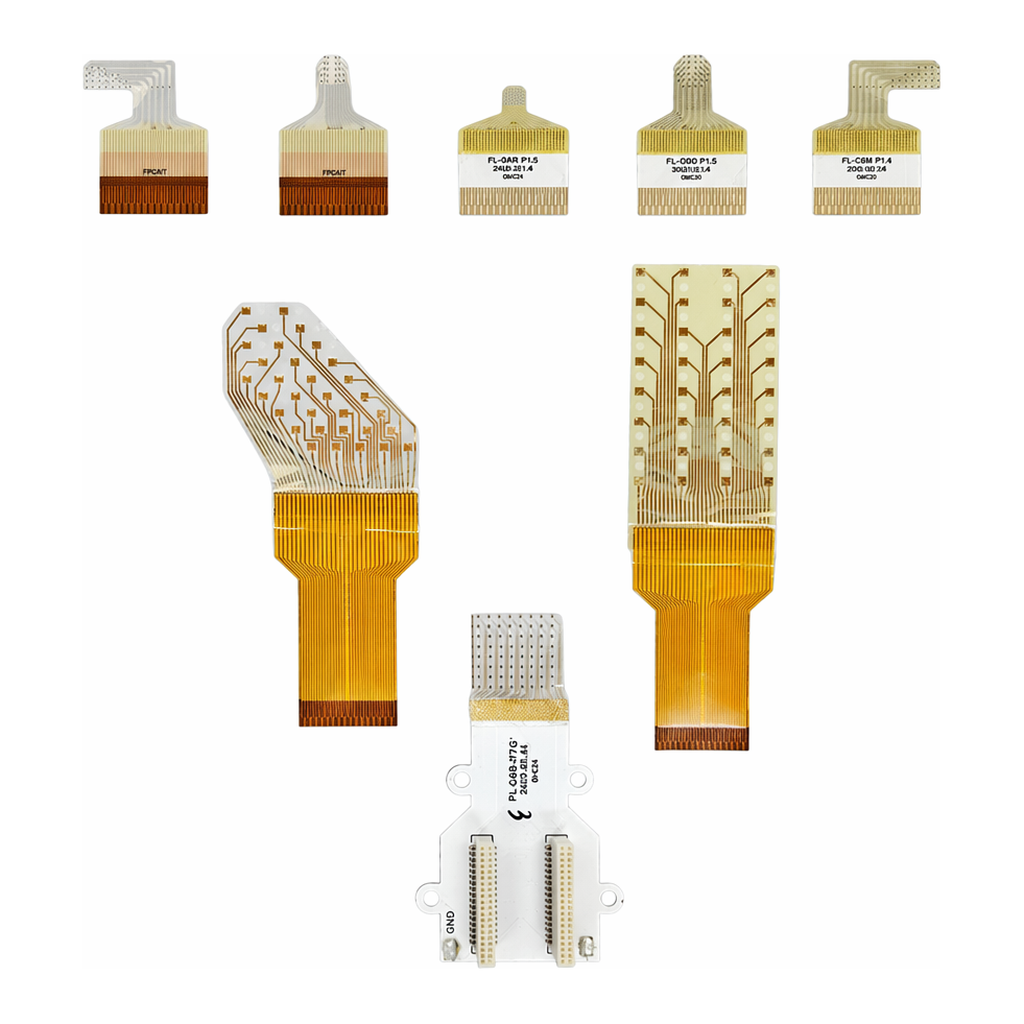

제품 이미지
