| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| S710 | - | RWD S710 Minux® Rotary Microtomes ea | 재고문의 | ea | 22,750,000원 | - | 25,025,000원 | |

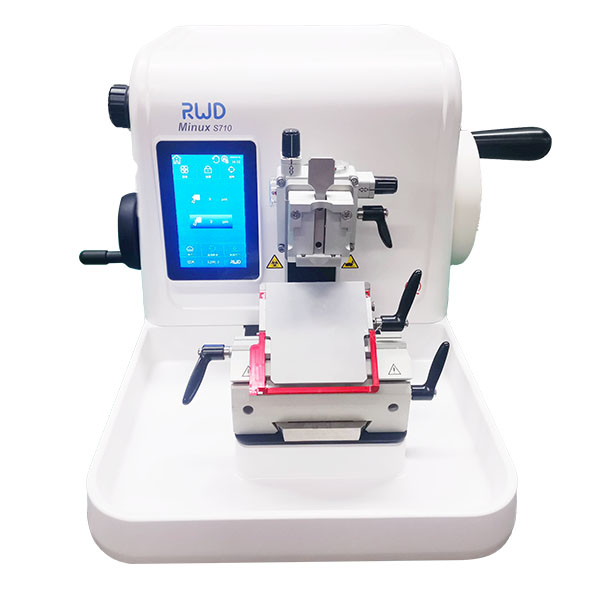

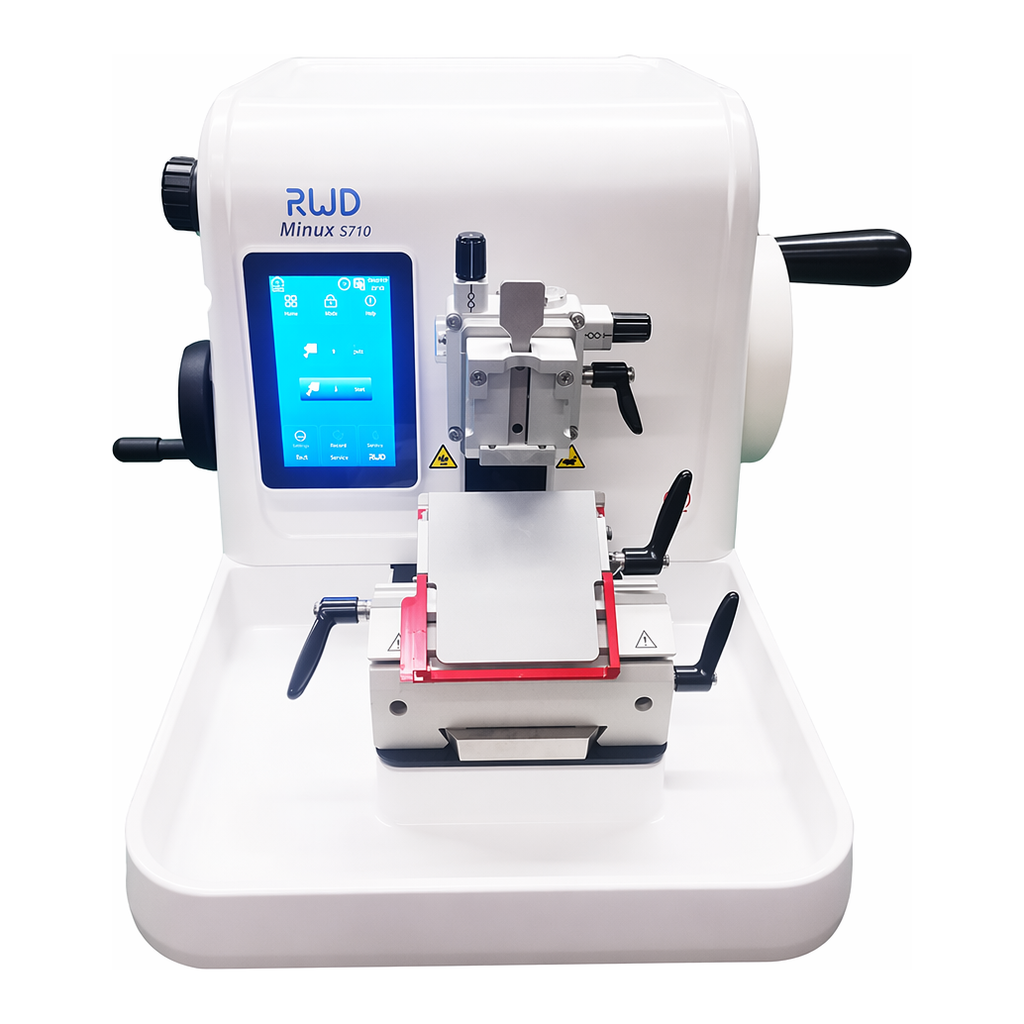

Minux® Rotary Microtomes S710
The new generation of microtomes S710 is specially designed to meet the various habits of most operators. The unique feature is combining manual sectioning and semi-automated setup, ensuring microtome slicing precision, especially for hard tissue sectioning high performance.
The historical record system shows operation and alarm logs on a 5-inch touch screen to query the microtome usage and facilitate information tracking. Then low-cost maintenance can be achieved.
Advantages
Precise Sampling System
Precise cross roller bearings and screw rod, combined with a five-phase high-resolution stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure section quality. Stable gantry structure design, the hard tissue section is still accurate.
Precise Knife Holder
The position change is extremely small after changing the knife edge by moving sideways. Scales on the knife holder to determine the best position of the blade holder.
Dual Handwheel Locking System
Handwheel balance at any position. The handwheel can be stopped at any position, making it more secure to use
Knife Guard Device
The knife guard covers the full length of the blade to avoid potential injury during operation.
Easy to Clean
With magnetic function, easy to disassemble and install. Large capacity, special coating waste tray, easy to clean up, shorten the cleaning time to a few seconds.
Rapid Positioning
Unique visual pointer, visible angle adjustment. Sample positioning is faster and more precise. Adjust multiple devices to the same angle easily and quickly.
Information Backtracking
With historical record system, operation and alarm logs are show on 5-inch touch screen, to query the microtome usage and facilitate information tracking
Specifications
| Available accessories | |
|---|---|
| Items | Model |
| Universal clamp | S700-F3 |
| Standard clamp | S700-F4 |
| Blade holder assembly | S700-F2 |
| Blade holder upper bracket | S700-F8 |
| Quick Comparison Chart | |
|---|---|
| Section thickness range: 0.5 – 100 µm | √ |
| Trimming section thickness range: 1 – 800 µm | √ |
| Electric coarse feed: 0 – 1800μm/s adjustable | √ |
| Specimen retraction: 0 – 250µm adjustable | √ |
| Horizontal feed: 28mm | √ |
| Vertical stroke: 70mm | √ |
| Specimen orientation: X/Y axis 8° | √ |
| Maximum specimen size: 55*50*30mm | √ |
| W x Dx H: 490*430*315mm | √ |
| Machine Weight:30kg | √ |
| Rock mode | √ |
| Position memory function | √ |
S710 Brochure >>>
