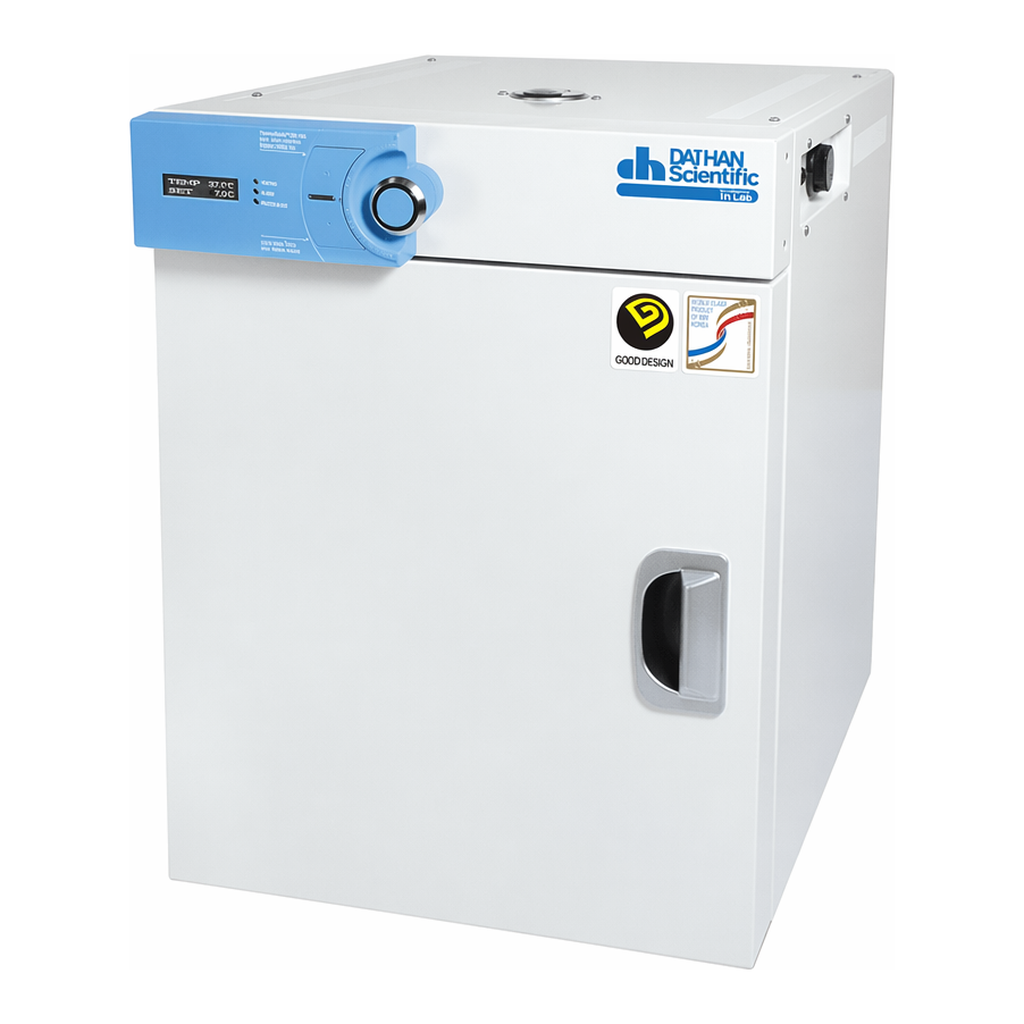

Daihan Science DAIHAN Gravity-air Drying Oven “ThermoStable TM ON” , 3-Side Heating Zone, 32 ·

상품 한눈에 보기

3면 가열 존을 갖춘 자연 대류식 정밀 건조 오븐으로 최대 230°C까지 정밀 온도 제어 가능. 디지털 PID 및 Jog-Dial 컨트롤로 간편한 조작과 높은 온도 정확성 제공. RS232C 인터페이스를 통한 PC 모니터링 지원. 다양한 용량(32~155L) 모델 선택 가능.

카탈로그번호: DH-WON0xxxxxxx (2개 옵션)
브랜드: Daihan Science
카테고리: Daihan Science
판매단위: ea

#Daihan Science

카탈로그

2개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Daihan Science DH-WON08155-EA Oven Natural Convection, Viewing Window, 155lit. ON-W155, 120V, 1/Ea ea DH.WON08155판매 단위 ea ·

재고 확인 필요재고 확인 필요

2,337,500원VAT 포함 2,571,250원

Daihan Science DH-WON06105-EA Oven Natural Convection, Standard, 105lit. ON-105, 120V, 1/Ea ea DH.WON06105판매 단위 ea ·

재고 확인 필요재고 확인 필요

2,091,300원VAT 포함 2,300,430원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science DAIHAN Gravity-air Drying Oven “ThermoStable TM ON” , 3-Side Heating Zone, 32 ·

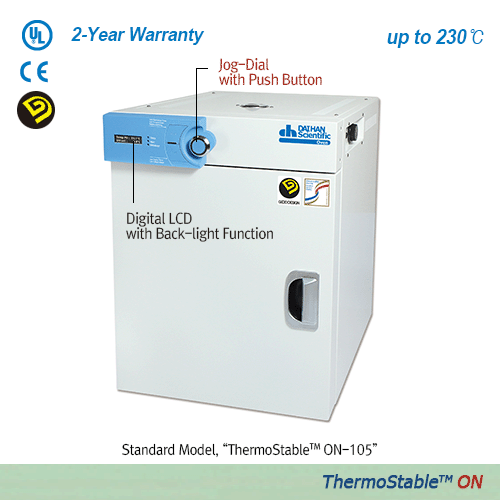

DAIHAN® Gravity-air Drying Oven “ThermoStable™ ON”

3-Side Heating Zone, 32·50·105·155 Lit, up to 230°C, ±0.5°C
With 2 Wire Shelf, Digital PID Control, Jog-Dial & Push Button, Digital LCD with Back-light, with Certificate & Traceability
자연 대류식 정밀 건조기/오븐, 고정밀 디지털 PID 제어, 우수한 온도 정확성

Supplied by DAIHAN Korea

UL, CUL, and CE Certified
GD(Good Design)-mark
Certificate & Traceability 관리: Serial Number, Certificate, Delivery Information, Traceable Database System
3-Side Heating Zone으로 온도 균일성 및 정확성 향상
디지털 PID 제어 시스템으로 정밀한 온도 제어
Gravity-air 메커니즘으로 최적화된 공기 흐름
특허 받은 Jog-Dial 제어 시스템
PL(Product Liability) 보험 적용
건조, 베이킹, 컨디셔닝, 경화, 예열, 에이징 등에 적합
Jog-Dial + Push Button 방식의 새로운 제어 인터페이스
RS232C 인터페이스를 통한 PC 모니터링 및 제어 가능
온도 범위: Ambient +5°C ~ 230°C (100°C에서 ±0.5°C 변동)
실험 안전을 위한 Locking Mode 지원

Specification

Spec.	(1) Standard Model	(2) Window Model
Model	“ON-32” Max. Capa. 32L	“ON-W105” Max. Capa. 105L
Capacity	32 Lit	50 Lit
Dimension (w×d×h, mm)	Interior: 310×290×360	370×350×420
Exterior: 458×567×564	518×647×724	653×712×828
Heater Power (W)	500	700
Temp. Range	Room Temp +5°C to 230°C
Temp. Fluctuation	±0.5°C at 100°C, ±0.6°C at 150°C	±0.5°C at 100°C, ±0.8°C at 150°C
Temp. Variation	±1.2°C at 100°C, ±2.2°C at 150°C
Sensor	PT 100
Control Resolution	±1°C
Heat-up Time	30 min. to 100°C, 43 min. to 150°C	30 min. to 100°C, 45 min. to 150°C
Recovery Time (Door open 30 sec)	8 min. to 100°C, 10 min. to 150°C	10 min. to 100°C, 12 min. to 150°C
Controller	Digital PID Control by Advanced Microprocessor
RS232 Port	Available to connect with PC
Display	Digital LCD with Back Light
Timer	99hr 59min (delay/continuous function)
Storage	Temperature and Timer setting values
Material	Internal: Stainless-steel (#304), Corrosion Resistant / External: Powder Coated steel / Insulation: Glass Wool
Shelf (included)	2 Stainless-steel Wire Shelf, Load per Shelf: 16 kg
Ventilation	Ventilation hole with Stainless-steel Cap, Hole Diameter 40mm
Circulation	Gravity-air Type
Safety device	Over Temp. and Over Current Protector, Sensor Error Detector
Alarm	Error Status and Timer End
Net Weight (kg)	36	44
Packing Size (w×d×h, mm)	562×664×747	622×754×807
Shipping Weight (kg)	43	59
Power Consumption	502 W	674 W
Energy Consumption, at 100°C	90 Wh	117 Wh
at 150°C	181 Wh	230 Wh
Electric Reqts.	120V, 60Hz or 230V, 50/60Hz

Other Specifications are available upon Customer’s Request.

Ordering Information

(1) Standard Model, Gravity-air, with Wire Shelf

Model No.	Description
DH.WON05032	Oven, Standard, 230V, 32 Lit, “ON-32”
DH.WON05050	50 Lit, “ON-50”
DH.WON05105	105 Lit, “ON-105”
DH.WON05155	155 Lit, “ON-155”
DH.WON06032	Oven, Standard, 120V, 32 Lit, “ON-32”
DH.WON06050	50 Lit, “ON-50”
DH.WON06105	105 Lit, “ON-105”
DH.WON06155	155 Lit, “ON-155”

(2) Built-in Viewing Window Model, Gravity-air, with Wire Shelf

Model No.	Description
DH.WON070105	Oven, Window, 230V, 105 Lit, “ON-W105”
DH.WON07155	155 Lit, “ON-W155”
DH.WON08105	Oven, Window, 120V, 105 Lit, “ON-W105”
DH.WON08155	155 Lit, “ON-W155”

Spare Stainless-steel Wire Shelf

Model No.	Description
DH.WON11032	Wire Shelf, for 32 Lit, “ON32”, w280×d280mm
DH.WON11050	for 50 Lit, “ON50”, w340×d310mm
DH.WON11105	for 105 Lit, “ON105”, w455×d375mm
DH.WON11155	for 155 Lit, “ON155”, w520×d440mm

Gravity-air Oven with Validation (IQ, OQ) Service

Model No.	Description
DH.WON31032	Validation Service (IQ, OQ), with “ON-32”, “ONV1032”
DH.WON31050	with “ON-50”, “ONV1050”
DH.WON31105	with “ON-105”, “ONV1105”
DH.WON31155	with “ON-155”, “ONV1155”
DH.WON32105	Validation Service (IQ, OQ), with “ON-W105”, “ONV2105”
DH.WON32155	with “ON-W155”, “ONV2155”
