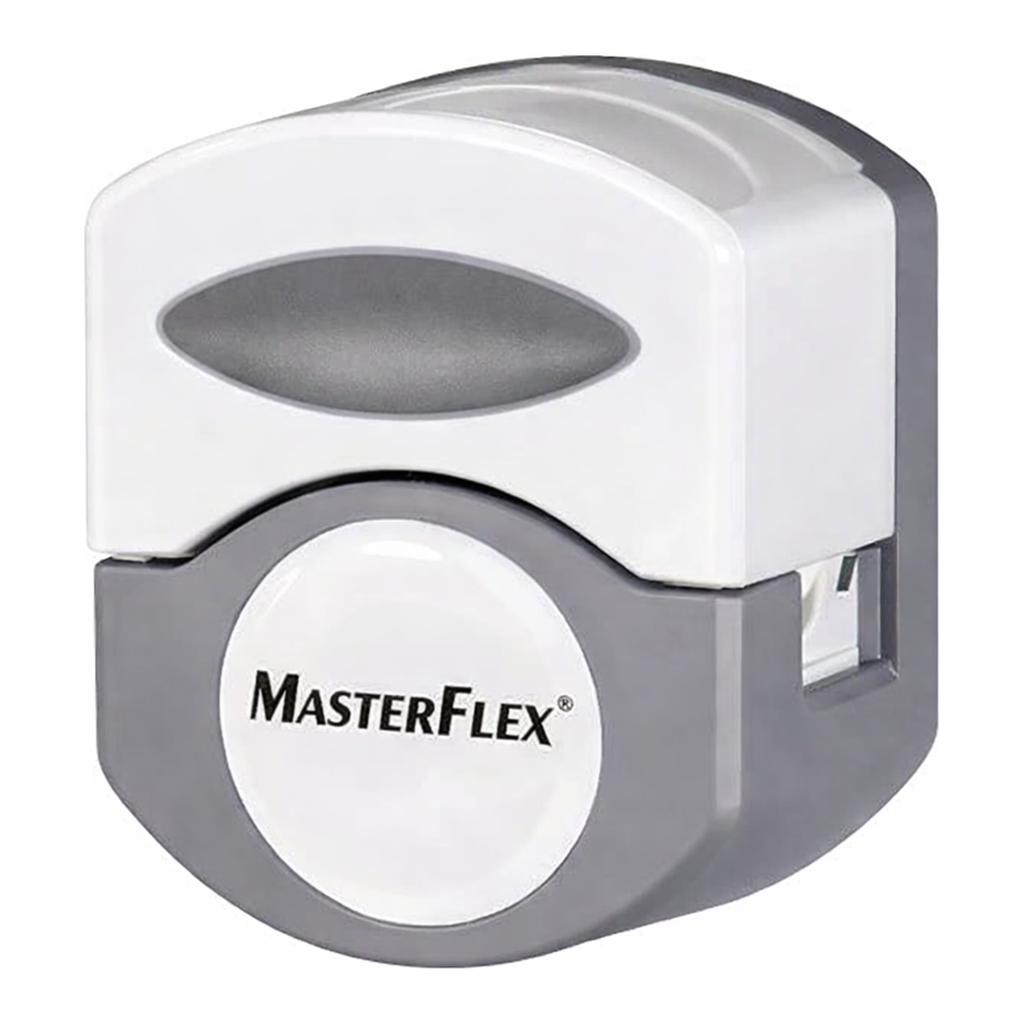

Cole-Parmer Masterflex L/S Miniflex Pump Head, Dual-Channel, for 07525-Series Pumps

Masterflex L/S Miniflex Pump Head, Dual-Channel, for 07525-Series PumpsMasterflex L/S® Miniflex® Pump Head, Dual-Channel, for 07525-Series Pumps

Pump head accepts continuous lengths of tubing for clean flow paths

• Flow range of 1.8 to 220 mL/min—flow rate depends on drive rpm, pump head, and tubing size
• Pump head accepts continuous lengths of tubing for clean flow paths
• Dual-channel model delivers synchronous flow from two separate channels; single-channel model delivers highest flow rate
• Automatic tubing retention makes tube loading quick and easy
• Suitable for use with Masterflex® L/S® Digital Miniflex® Pump Systems

Specifications & Description

• Pump SeriesL/S
• Number of Channels2
• Max Flow Rate Per Channel (mL/min)184
• Min Flow Rate Per Channel (mL/min)0.005
• Housing MaterialPolyarylamide (PARA)
• Tubing RetentionAutomatic
• OcclusionFixed
• Optimum RPM Range (rpm)0.1 to 300
• RollersThree; thermoplastic polyester
• Rotor MaterialStainless Steel and Aluminum
• Gear Ratio1:1
• Tubing sizes acceptedL/S® 13, L/S 14, L/S 16
• Volume Per Revolution With L/S 13 Tubing (mL)0.04
• Volume Per Revolution With L/S 14 Tubing (mL)0.14
• Volume Per Revolution With L/S 16 Tubing (mL)0.5
• Length (in)2.75
• Width (in)2.5
• Height (in)3
• Length (mm)70
• Width (mm)64
• Height (mm)76
• Open-Head SensorYes
• DescriptionL/S Dual-Channel Miniflex Pump Head, for 07525-series Pumps

Key Features

• Flow range of 1.8 to 220 mL/min—flow rate depends on drive rpm, pump head, and tubing size
• Pump head accepts continuous lengths of tubing for clean flow paths
• Dual-channel model delivers synchronous flow from two separate channels; single-channel model delivers highest flow rate
• Automatic tubing retention makes tube loading quick and easy
• Suitable for use with Masterflex® L/S® Digital Miniflex® Pump Systems

More About this Item

The Masterflex® Miniflex® pump heads feature a wide occlusion angle that prevents fluid backflow up to the rated pressure of the tubing. Self-lubricating thermoplastic polyester rollers are low friction and long wearing for smooth operation and long life. A compact overall size envelope makes these heads ideal for OEM applications and integration into fluid systems and machinery.

Note: Dual-channel model must have same size tubing loaded in both channels to ensure tubing retention.
