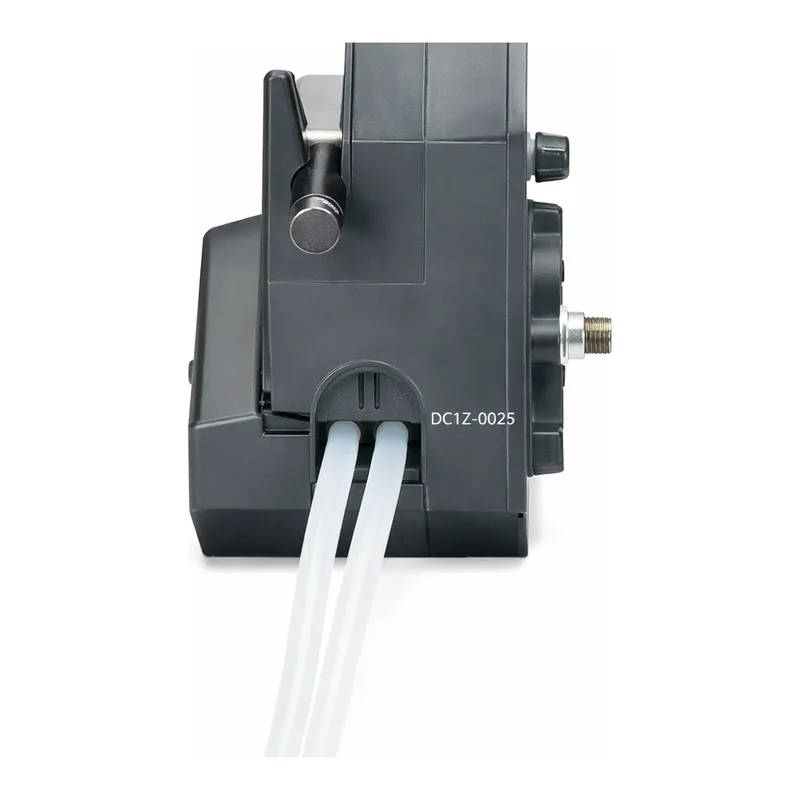

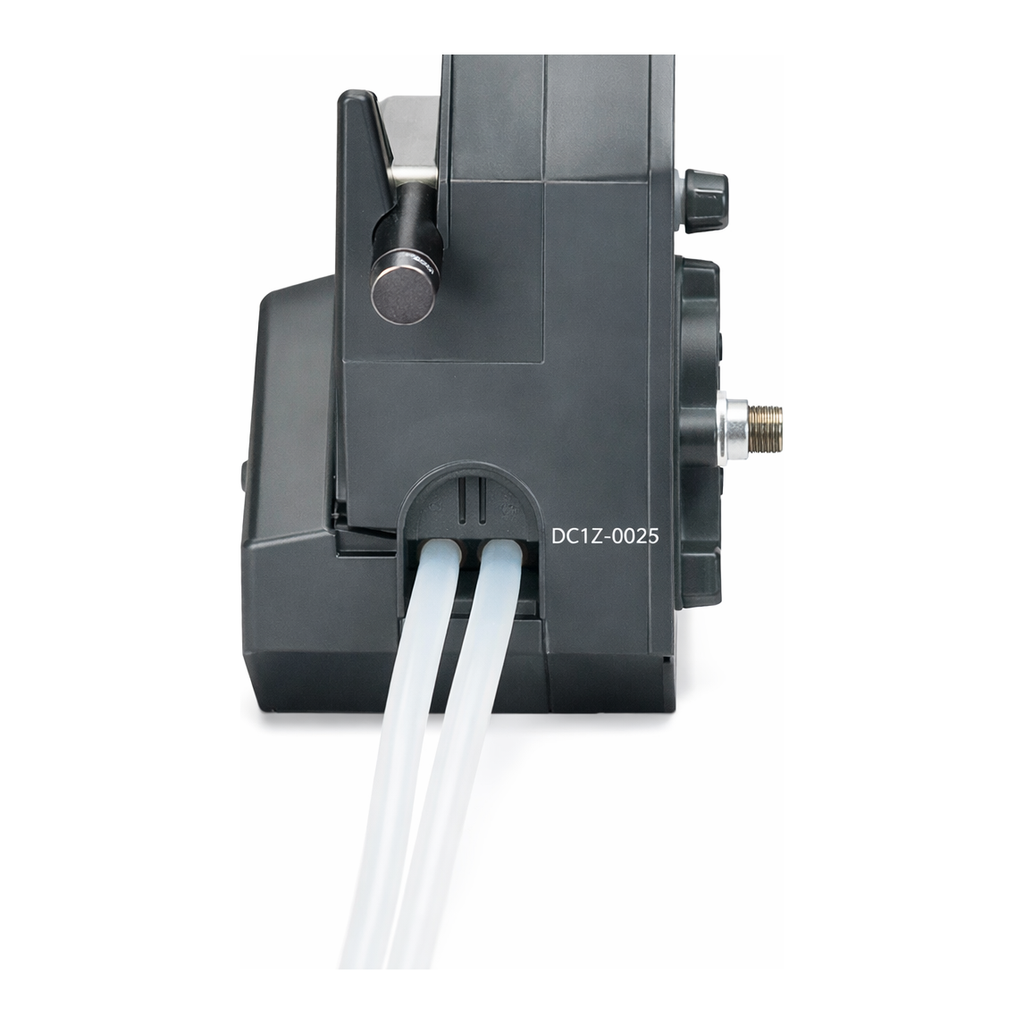

Cole-Parmer Masterflex L/S Easy-Load II Pump Head for Precision Pump Tubing, 2-Channel

Masterflex L/S Easy-Load II Pump Head for Precision Pump Tubing, 2-Channel, PPS Housing, SS RotorMasterflex L/S® Easy-Load® II Pump Head for Precision Pump Tubing, 2-Channel, PPS Housing, SS Rotor

No need to stack heads—get two channels in one head

• New design and automatic tubing retention allow for multiple tubing sizes—change tubing without removing head from drive
• Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation
• Compact design for efficient use of space
• Suitable for use with L/S® Precision pump tubing sizes
• Rotor is constructed of stainless steel (SS) for enhanced durability

Specifications & Description

• Pump SeriesL/S
• Number of Channels2
• Max Flow Rate (mL/min)2000
• Max Flow Rate Per Channel (mL/min)1000
• Min Flow Rate Per Channel (mL/min)0.0012
• Housing MaterialPolyphenylene Sulfide (PPS)
• Tubing RetentionAutomatic
• OcclusionFixed
• Optimum RPM Range (rpm)0.02 to 600
• Rollers4
• Rotor MaterialStainless Steel
• Suction Lift (ft)29
• Suction Lift (m)8.8
• Gear Ratio1:1
• Tubing sizes acceptedL/S® 13, L/S 14, L/S 16, L/S 25
• Volume Per Revolution With L/S 13 Tubing (mL)0.06
• Volume Per Revolution With L/S 14 Tubing (mL)0.21
• Volume Per Revolution With L/S 16 Tubing (mL)0.8
• Volume Per Revolution With L/S 25 Tubing (mL)1.7
• Length (in)3.25
• Width (in)5
• Height (in)4.75
• Length (mm)82
• Width (mm)127
• Height (mm)121
• Open-Head SensorNo
• DescriptionL/S® Easy-Load® II Pump Head for Precision Pump Tubing, 2-Channel, PPS Housing, SS Rotor

Includes

mounting hardware.

Key Features

• New design and automatic tubing retention allow for multiple tubing sizes—change tubing without removing head from drive
• Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation
• Compact design for efficient use of space
• Suitable for use with L/S® Precision pump tubing sizes
• Rotor is constructed of stainless steel (SS) for enhanced durability

More About this Item

The two-channel pump head lets you pump two synchronous flow channels, proper retention requires the use of the same size tubing in each channel. These pump heads accept the six L/S® precision tubing sizes L/S® 13, L/S® 14, L/S® 16, and L/S® 25. Achieve flow rates of 0.06 to 1000 mL/min—flow rate depends on drive rpm and tubing size.
