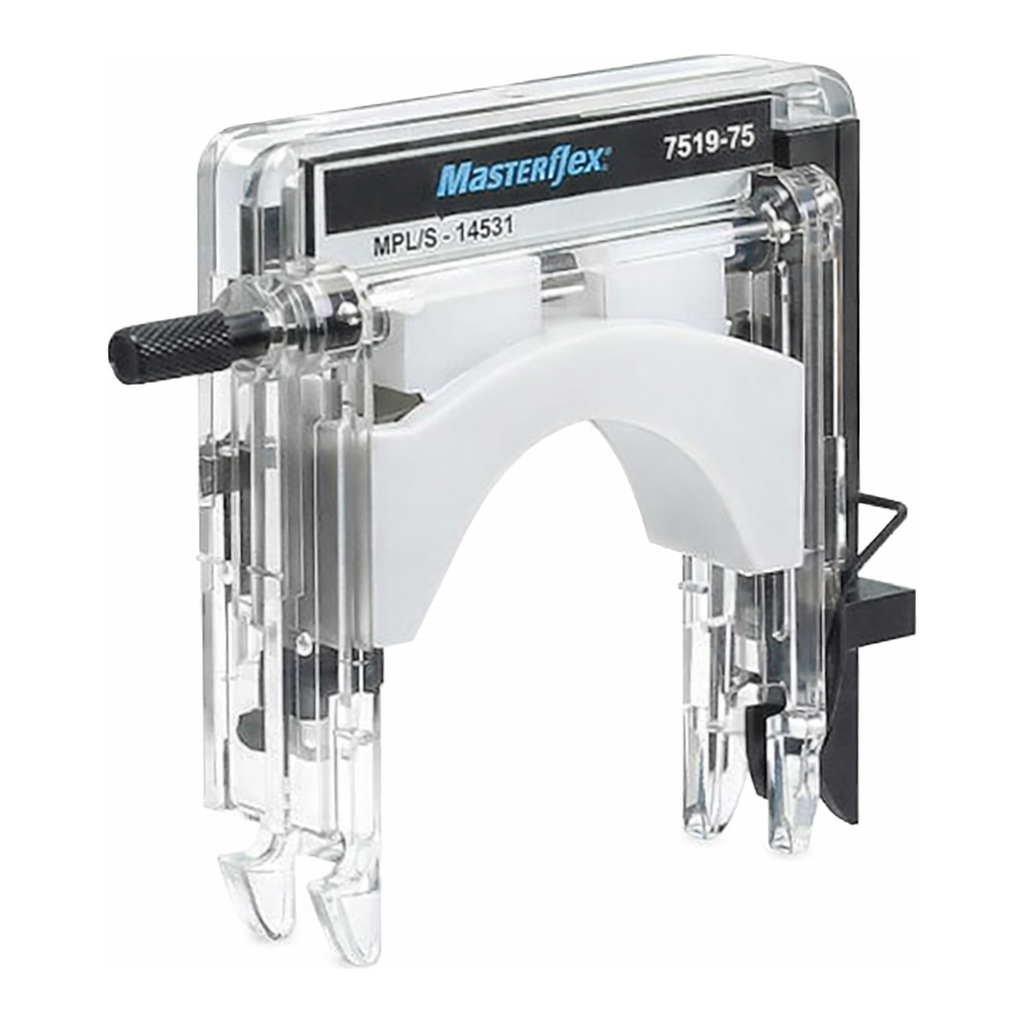

Cole-Parmer Masterflex L/S Large Cartridge for Multichannel Cartridge Pump Head for Precision Tubing

Masterflex L/S Large Cartridge for Multichannel Cartridge Pump Head for Precision TubingMasterflex L/S® Large Cartridge for Multichannel Cartridge Pump Head for Precision Tubing

Use with L/S® multichannel cartridge pump heads for synchronous, multichannel pumping

• Only Silicone and C-Flex® tubing formulations are recommended for size L/S® 17 tubing when used in L/S® cartridge pump heads.
• Suitable for use with reduced pulsation multichannel pump heads 07519-10 and -15

Specifications & Description

• Pump SeriesL/S
• Number of Channels1
• Max Flow Rate (mL/min)350
• Min Flow Rate (mL/min)0.0006
• Max Flow Rate Per Channel (mL/min)350
• Min Flow Rate Per Channel (mL/min)0.0006
• Housing MaterialPolycarbonate and Glass-filled Nylon
• Tubing RetentionManual
• OcclusionAdjustable Offset Tangential
• Optimum RPM Range (rpm)0.02 to 600
• Tubing sizes acceptedL/S® 14, L/S 16, L/S 25, L/S 17
• Volume Per Revolution With L/S 14 Tubing (mL)0.21
• Volume Per Revolution With L/S 16 Tubing (mL)0.5
• Volume Per Revolution With L/S 25 Tubing (mL)0.96
• Volume Per Revolution With L/S 17 Tubing (mL)1.4
• Length (in)4.3125
• Width (in)0.75
• Height (in)3.75
• Length (mm)125
• Width (mm)19
• Height (mm)95
• Open-Head SensorNo
• DescriptionL/S large cartridges for 07519-10 and -15 pump heads.

Key Features

• Only Silicone and C-Flex® tubing formulations are recommended for size L/S® 17 tubing when used in L/S® cartridge pump heads.
• Suitable for use with reduced pulsation multichannel pump heads 07519-10 and -15

More About this Item

Cartridges feature accurate flow rates and adjustable tubing retainers to hold tubing in place — for large cartridges, set tubing retainers to your tube size and you are ready to pump. On small cartridges, optimum retention is preset — simply load tubing and start pumping.

Cartridges are constructed from polycarbonate and glass-filled nylon. Mix small and large cartridges on pump heads that accept both sizes; two small cartridges occupy the same space as one large cartridge.
