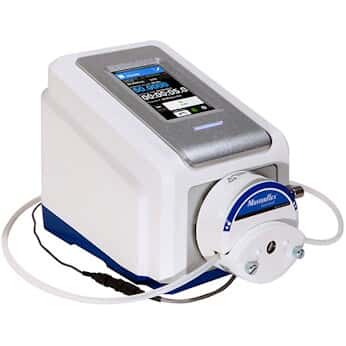

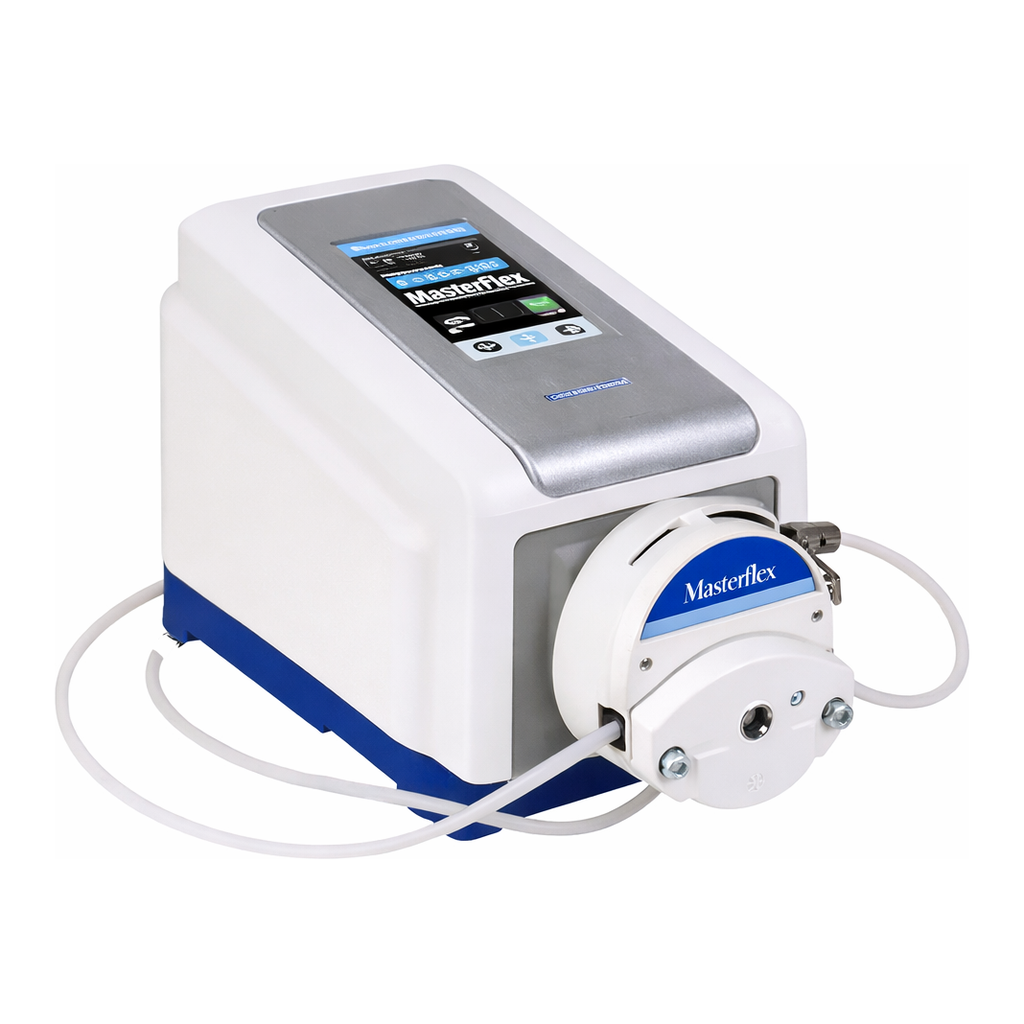

Cole-Parmer Masterflex L/S MasterSense Pump, Profibus Network-Compatible with MasterflexLive

Masterflex L/S MasterSense Pump, Profibus Network-Compatible with MasterflexLive, with Easy-Load Pump Head for Precision Tubing, 90 to 260 VACMasterflex L/S® MasterSense™ Pump, Profibus Network-Compatible with MasterflexLive®, with Easy-Load® Pump Head for Precision Tubing; 90 to 260 VAC

Complete pump systems for accurate fluid delivery – with an intuitive touch-screen interface

• Precise, repeatable performance that is quick and easy to set up and program
• 5” (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle
• Pump lets you save and retrieve commonly used dispense programs for rapid set up
• Over-the-air firmware updates let you take full advantage of improvements in drive features and functionality
• Options for connectivity and monitoring include MasterflexLive, EtherNet/IP™, Profibus, or analog signal

Specifications & Description

• Control TypeVariable-Speed Digital
• Pump SeriesL/S
• Min RPM0.1
• Max RPM600
• Number of Channels1
• Max Flow Rate (mL/min)480
• Min Flow Rate (mL/min)0.08
• Max Flow Rate Per Channel (mL/min)480
• Min Flow Rate Per Channel (mL/min)0.08
• Drive07526-12 (L/S® MasterSense™ Drive with Profibus and MasterflexLive®)
• Pump Head07514-30 (L/S® Easy-Load® Head with Open-Head Sensor)
• Tubing06434-16, 10 ft (C-FLEX ULTRA®, L/S® 16 )
• Tubing sizes acceptedL/S® 13, 14, 16, 25, 17, 18
• Drive IP ratingIP 33
• Washdown CapableNo
• Accuracy±0.1% (0.1 rpm at 600 rpm)
• Number of Rollers4
• Duty CycleContinuous
• Power (VAC)90 to 260
• Power (amps)2.2 / 1.1
• Power (Hz)50/60
• Width (in)7.6
• Height (in)8.5
• Length (in)12.45
• Width (cm)19.4
• Height (cm)21.6
• Length (cm)31.6
• Open-Head SensorYes
• Housing MaterialABS Plastic and Aluminum
• Remote I/OProfibus, MasterflexLive, 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via contact closure
• Reversible MotorYes
• Anti-DripNo
• Cloud ConnectedYes
• Digital DispensingYes
• DescriptionL/S MasterSense Pump with Easy-Load Pump Head (thin wall), with Profibus, 0.1 to 600 rpm

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

drive, pump head, tubing, and 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country specific plug/cord set; please specify ultimate destination when ordering.

Key Features

• Precise, repeatable performance that is quick and easy to set up and program
• 5” (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle
• Pump lets you save and retrieve commonly used dispense programs for rapid set up
• Over-the-air firmware updates let you take full advantage of improvements in drive features and functionality
• Options for connectivity and monitoring include MasterflexLive, EtherNet/IP™, Profibus, or analog signal
• Three-level user access – gives you the option of controlling who can operate the pump and at what level.
• Continuous run, volume dispense, and time dispense modes -- batch control and interval/off time in Volume and Time modes
• Anti-drip and speed ramping available in Volume dispense mode – ensure accuracy, minimize sample loss, and eliminate foaming

More About this Item

These Masterflex® L/S® MasterSense™ drives feature high precision, repeatable flow control, and reliable performance, you can have it all in one small footprint—even more bench space. Open-head sensor technology stops the drive motor when pump head is opened, or connect it to a remote leak detector to stop the pump anytime a leak is detected in the fluid path.

Brushless, maintenance-free motor provides ±0.1% speed control accuracy with 6000:1 turndown ratio. Bidirectional flow and self-priming capabilities allow for smooth, seamless operation.

MasterflexLive® is a secure, cloud-enabled platform for monitoring Masterflex pumps; get real-time notifications of pump parameters – including speed, flow rate, dispense volume, and more. You can monitor critical processes running 24/7 without the need for onsite personnel while notifications alert you to operating conditions and error messages. Internet connection via Wi-Fi or standard Ethernet (RJ45) jack on rear of drive.

This pump system offers a flow range from 0.08 to 480 mL/min with the included L/S 16 tubing. Pump head accepts all L/S Precision tubing sizes for a full range of 0.006 to 2300 mL/min.
