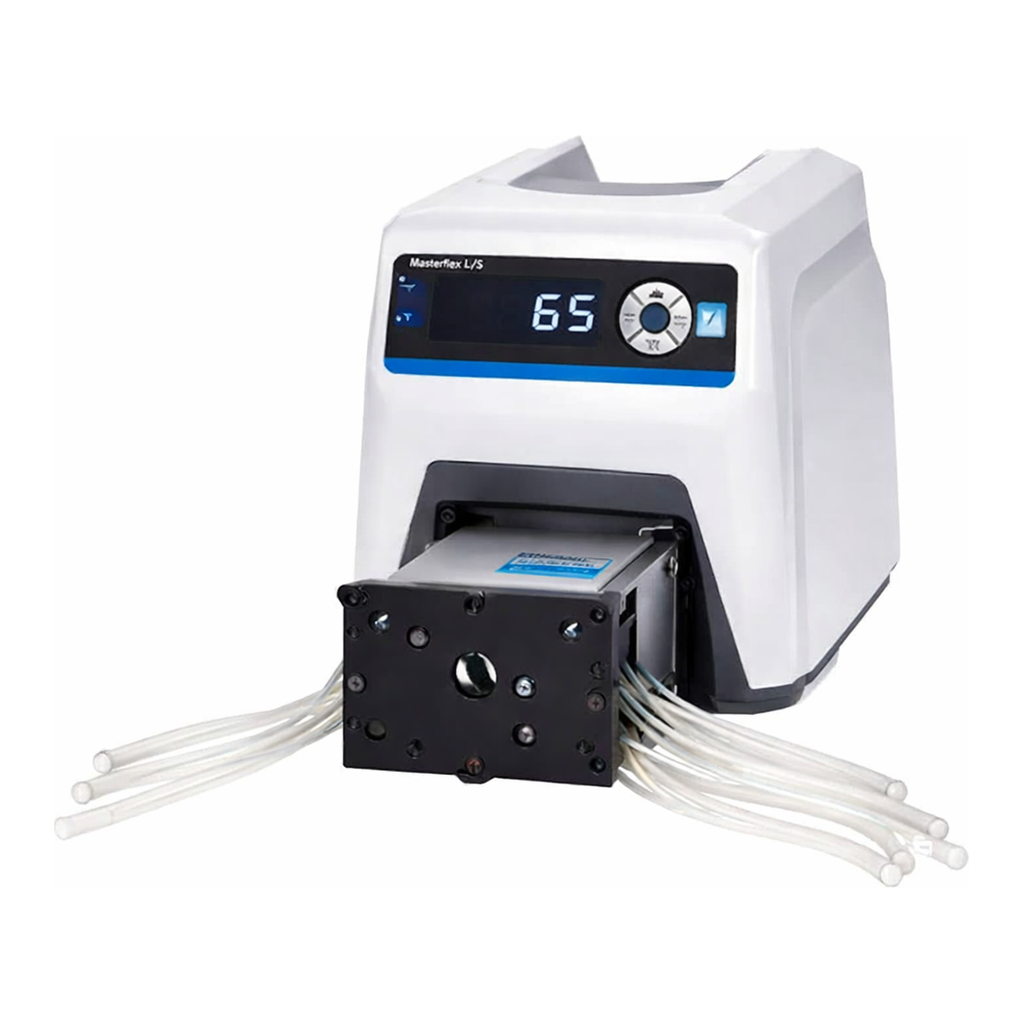

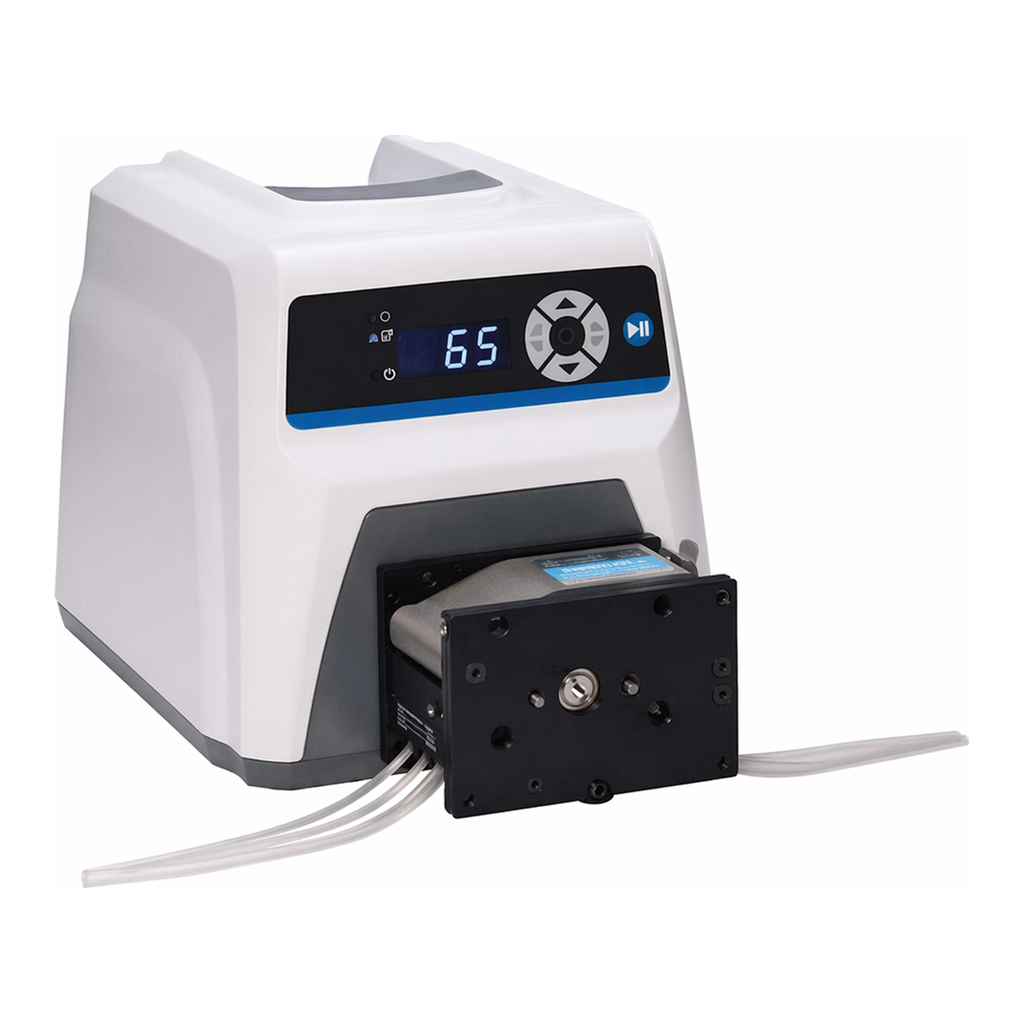

Cole-Parmer Masterflex L/S Variable Speed Analog Console Pump with Multichannel Pump Head

Masterflex L/S Variable Speed Analog Console Pump with Multichannel Pump Head for High-Performance Tubing, 4-Channel, 90 to 260 VACMasterflex L/S® Variable Speed Analog Console Pump with Multichannel Pump Head for High-Performance Tubing, 4-Channel; 90 to 260 VAC

Don’t lose control of your metering applications—digital display gives you precise control

• Accurate and repeatable settings with 3-digit LED display of rpm
• Pump fluid in either direction with reversible motor—perfect for purging tubing
• Choose multichannel systems for synchronous flow from all channels
• Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
• Two ways to control speed, direction, and start/stop—use either the membrane keypad or remote-control capabilities

Specifications & Description

• Pump SeriesL/S
• Control TypeVariable-Speed Digital
• Min RPM1
• Max RPM100
• Number of Channels4
• Max Flow Rate (mL/min)1120
• Min Flow Rate (mL/min)11.2
• Max Flow Rate Per Channel (mL/min)280
• Min Flow Rate Per Channel (mL/min)2.8
• Drive07528-30 (L/S® Variable-Speed Digital Drive with Remote I/O, 100 rpm)
• Pump Head07536-04 (L/S® 4-Channel Pump Head)
• Tubing06416-24, 8/pk (Tygon® Lab Two-Stop Tubing Set, L/S® 24)
• Tubing sizes acceptedL/S® 15, 24, 35
• Drive IP ratingIP 33
• Washdown CapableNo
• Power (VAC)90 to 260
• Accuracy±0.25% (1 rpm at 600 and 300 rpm; 0.1 rpm at 100 rpm)
• Duty CycleContinuous
• Number of Rollers3
• Power (amps)1.8A at 115v; 1.2A at 230v
• Power (Hz)50/60
• Width (in)8.3
• Height (in)8.5
• Length (in)13.74
• Width (cm)21.08
• Height (cm)21.59
• Length (cm)34.9
• Open-Head SensorNo
• Housing MaterialABS Plastic and Aluminum
• Reversible MotorYes
• Remote I/O4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure
• Anti-DripNo
• Cloud ConnectedNo
• Digital DispensingNo
• DescriptionL/S Four-Channel Pump System 1 to 100 rpm, 90 to 260 VAC

Includes

L/®S drive 07528-30, multichannel pump head 07536-04, and L/S 24 Tygon® 2-stop tubing 06416-24.

Key Features

• Accurate and repeatable settings with 3-digit LED display of rpm
• Pump fluid in either direction with reversible motor—perfect for purging tubing
• Choose multichannel systems for synchronous flow from all channels
• Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
• Two ways to control speed, direction, and start/stop—use either the membrane keypad or remote-control capabilities
• Flow range 2.8 to 280 mL/min with included L/S tubing—flow rate depends on drive rpm and tubing size

More About this Item

These L/S® precision variable-speed console drives offer precise ±0.25% speed control for accurate flow regulation. The large LED display and LED indicators confirm motor rpm and motor direction at a glance. The complete pump systems include all you need to start pumping.
