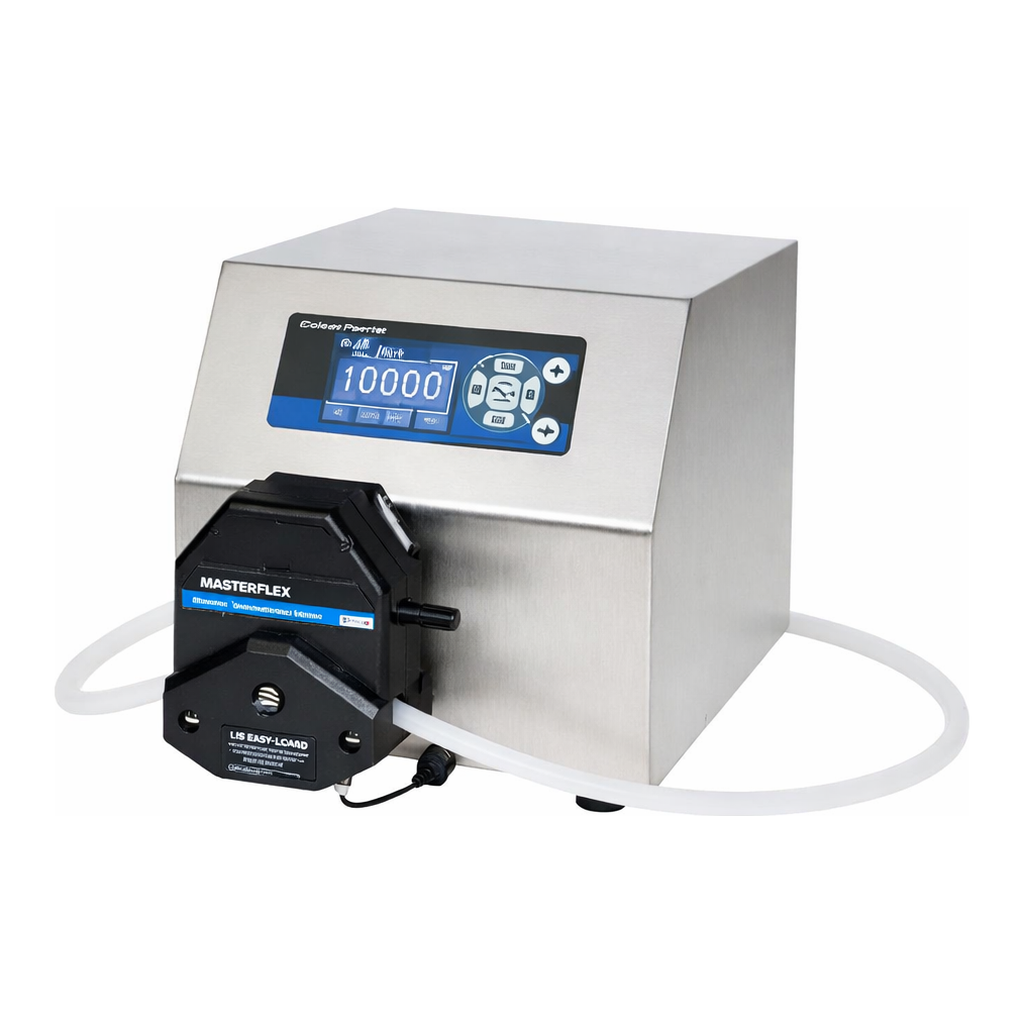

Cole-Parmer Masterflex L/S Digital Drive, EtherNet/IP Network-Compatible, with Open-Head Sensor

Masterflex L/S Digital Drive, EtherNet/IP Network-Compatible, with Open-Head Sensor and Easy-Load II for High-Performance Tubing, Stainless Steel Housing, 90 to 260 VACMasterflex L/S® Digital Drive, EtherNet/IP™ Network-Compatible, with Open-Head Sensor and Easy-Load® II for High-Performance Tubing, Stainless Steel Housing; 90 to 260 VAC

Networking drives offer either native EtherNet/IP™ or Profibus communication—no additional hardware or firmware required

• Flow rate 0.001 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm pump head, and tubing size
• Digital interface with graphical LCD shows pump performance and operating mode— continuous run, timed dispense, copy dispense, or volume dispense
• Remote control available using analog communication—voltage, current and contact closure
• Dispense by Volume in mL (0.001 to 9,999 mL), L, or gal; Copy—1 to 9,999 dispense cycles; or Time—time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
• Antidrip function ensures dispensing accuracy

Specifications & Description

• Pump SeriesL/S
• Control TypeVariable-Speed Digital
• Min RPM0.1
• Max RPM600
• Number of Channels1
• Max Flow Rate (LPM)1.7
• Max Flow Rate (mL/min)1700
• Min Flow Rate (mL/min)0.28
• Max Flow Rate Per Channel (mL/min)1700
• Min Flow Rate Per Channel (mL/min)0.28
• Drive07575-50 (L/S® Digital Process Drive, EtherNet/IP™ Network-Compatible)
• Pump Head77200-32 (L/S® Easy-Load® II Head with Open-Head Sensor)
• Tubing06434-24, 10 ft (C-FLEX ULTRA®, L/S® 24 )
• Tubing sizes acceptedL/S® 15, 24, 35, 36
• Drive IP ratingIP 66
• Washdown CapableYes
• Accuracy±0.1% (0.01 rpm at 100 rpm)
• Duty CycleContinuous
• Number of Rollers4
• Power (VAC)90 to 260
• Power (amps)2.2A at 115v; 1.1A at 230v
• Power (Hz)50/60
• Open-Head SensorYes
• Housing MaterialStainless Steel
• Reversible MotorYes
• Remote I/OEthernet/IP, Bluetooth LE, USB, 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via contact closure
• Anti-DripYes
• Cloud ConnectedYes
• Digital DispensingYes
• DescriptionL/S® Digital Drive, EtherNet/IP™ Network-Compatible, with Open-Head Sensor and Easy-Load® II for High-Performance Tubing, Stainless Steel Housing; 90 to 260 VAC

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

L/S drive 07575-50, Easy-Load® II pump head 77200-32, 10-ft of C-Flex ULTRA® tubing, and 6-ft (1.8 m) line cord with IEC 320/CEE22 socket. Shipped with country-specific cord/plug set; please specify ultimate destination when ordering.

Key Features

• Flow rate 0.001 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm pump head, and tubing size
• Digital interface with graphical LCD shows pump performance and operating mode— continuous run, timed dispense, copy dispense, or volume dispense
• Remote control available using analog communication—voltage, current and contact closure
• Dispense by Volume in mL (0.001 to 9,999 mL), L, or gal; Copy—1 to 9,999 dispense cycles; or Time—time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
• Antidrip function ensures dispensing accuracy
• Models with open-head sensor stops the drive when the pump head is opened
• EtherNet/IP™ model can be directly integrated without the need for dedicated gateways or adapters
• Bluetooth Low Energy (BLE) connectivity and downloadable iOS-based mobile app permits local pump monitoring and control via phone or tablet
• Cloud-based remote pump monitoring capability informs you of operational status—set alerts in the event of any failure or error condition

More About this Item

These precision drives offer digital and analog remote control (I/O) options and simple programming—ideal for automated process and network applications. Drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size.
Program the drive via the simple membrane keypad or remotely; keypad lock/unlock feature protects settings. Motor is reversible so you can purge tubing before or after pumping and pump fluid in either direction.
