Daihan Science DAIHAN Programmable Tube Furnaces “FT-series”, Embedded Heating Elements-type,
AI 생성AI가 생성·보정한 이미지예요. AI는 실수할 수 있으니 실제 제품과 다를 수 있어요.
1 / 2
Daihan Science

Daihan Science DAIHAN Programmable Tube Furnaces “FT-series”, Embedded Heating Elements-type,

상품 한눈에 보기

디지털 PID 프로그래머블 제어로 최대 1,000°C까지 정밀 온도 제어가 가능한 튜브 전기로. 1 또는 3 히팅존 구성 선택 가능. 다양한 튜브 직경(Φ3~Φ14cm)에 대응하며, 내열 글러브 등 옵션 제공. Made in Korea, 2년 보증 포함.

카탈로그번호
DH-WFT1xxxxxxxxxxx (7개 옵션)
브랜드
Daihan Science
카테고리
Tube Furnaces
판매단위
ea
#Daihan Science

카탈로그

7개 옵션
회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.
Daihan Science DH-WFT11-1460-3-EA Programmable Tube Furnaces, 1000℃, 3-Heating Zone ø140X 3-L200mm, FT-31460, 120V, 1/Ea ea DH.WFT11.1460.3판매 단위 ea ·
재고 확인 필요
6,128,800원VAT 포함 6,741,680원
Daihan Science DH-WFT12-1460-3-EA Programmable Tube Furnaces, 1000℃, 3-Heating Zone ø140X 3-L200mm, FT-31460, 230V, 1/Ea ea DH.WFT12.1460.3판매 단위 ea ·
재고 확인 필요
6,128,800원VAT 포함 6,741,680원
Daihan Science DH-WFT12-1460-EA Programmable Tube Furnaces, 1000℃, Heating Zone ø140 x L600mm, FT-1460, 230V, 1/Ea ea DH.WFT12.1460판매 단위 ea ·
재고 확인 필요
4,830,000원VAT 포함 5,313,000원
Daihan Science DH-WFT11-860-3-EA Programmable Tube Furnaces, 1000℃, 3-Heating Zone ø80 x 3-L200mm, FT-3860, 120V, 1/Ea ea DH.WFT11.860.3판매 단위 ea ·
재고 확인 필요
4,613,800원VAT 포함 5,075,180원
Daihan Science DH-WFT11-1460-EA Programmable Tube Furnaces, 1000℃, Heating Zone ø140 x L600mm, FT-1460, 120V, 1/Ea ea DH.WFT11.1460판매 단위 ea ·
재고 확인 필요
4,480,000원VAT 포함 4,928,000원
Daihan Science DH-WFT11-1430-EA Programmable Tube Furnaces, 1000℃, Heating Zone ø140 x L300mm, FT-1430, 120V, 1/Ea ea DH.WFT11.1430판매 단위 ea ·
재고 확인 필요
3,465,000원VAT 포함 3,811,500원
Daihan Science DH-WFT12-1430-EA Programmable Tube Furnaces, 1000℃, Heating Zone ø140 x L300mm, FT-1430, 230V, 1/Ea ea DH.WFT12.1430판매 단위 ea ·
재고 확인 필요
3,465,000원VAT 포함 3,811,500원
재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science DAIHAN Programmable Tube Furnaces “FT-series”, Embedded Heating Elements-type,

DAIHAN® Programmable Tube Furnaces “FT-series”, Embedded Heating Elements-type, 1,000°C

With Digital PID Programmable Control, 1- or 3-Heating Zone, Φ3~Φ14cm Tubes
1,000°C 프로그래머블 튜브 전기로

2-Year Warranty

  • Made in Korea
  • PL (Product Liability) Insurance
  • Certificate & Traceability : Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
  • Digital PID Programmable Controller : 3 Patterns with 16 Segments
  • Designed for Ash-Determinations, Horizontal Application, Protective Gas Atmosphere
  • Available Ordered Various Size Tubes (Without Working Tube)
  • Programmable Timer : 99hr 59min
  • Resolution : 1°C, 1min

Specifications & Ordering Information

항목 내용
Model “FT-series” 1- or 3-Heating Zone
Temp. Range & Heater 300°C~1,000°C, Kantal A1, Embedded Wire Heating Elements
Thermocouple & Display K-type Thermocouple, LED
Safety Circuit Over-Temp./Current Protection, Sensor Error Detection
Material Ceramic Fiber with Heating Wire (Internal), Powder Coated Steel (External)

(1) Heating Zone Model

Model FT-830 FT-860 FT-1230 FT-1260 FT-1430 FT-1460 FT-1630 FT-1660
Heating Zone 1×Heating Zone
Heating Zone Size (cm) Φ8×L30 Φ8×L60 Φ12×L30 Φ12×L60 Φ14×L30 Φ14×L60 Φ16×L30 Φ16×L60
Available Tube Size (cm) Max. Φ6cm Max. Φ10cm Max. Φ12cm Max. Φ14cm
Heating Power 2.2kW 3.7kW 2.2kW 5.3kW 3.7kW 6.0kW 4.0kW 6.9kW
Heat-up Time (to 800°C) 17min 20min 18min 22min 19min 23min 20min 25min
Dimension (w×d×h cm) 50×37×54 80×37×54 50×40×57 80×40×57 50×43×60 80×43×60 50×46×63 80×46×63
Controller 1×Programmable PID Controller : 5 Patterns 16 Segments

Cat. No.

전압 FT-830 FT-860 FT-1230 FT-1260 FT-1430 FT-1460 FT-1630 FT-1660
230V DH.WFT12.0830 DH.WFT12.0860 DH.WFT12.1230 DH.WFT12.1260 DH.WFT12.1430 DH.WFT12.1460 DH.WFT12.1630 DH.WFT12.1660
120V DH.WFT11.0830 DH.WFT11.0860 DH.WFT11.1230 DH.WFT11.1260 DH.WFT11.1430 DH.WFT11.1460 DH.WFT11.1630 DH.WFT11.1660

(2) 3-Heating Zone Model

Model FT-3860 FT-31260 FT-31460 FT-31660
Heating Zone 3×Heating Zone
Heating Zone Size (cm) Φ8×(3×L20cm) Φ12×(3×L20cm) Φ14×(3×L20cm) Φ16×(3×L20cm)
Available Tube Size (cm) Max. Φ6cm Max. Φ10cm Max. Φ12cm Max. Φ14cm
Heating Power 3.7kW 5.3kW 6.0kW 6.9kW
Heat-up Time (to 800°C) 20min 22min 23min 25min
Dimension (w×d×h cm) 70×28×44 70×34×50 70×36×54 70×40×56
Controller Independent 3×Programmable PID Controller : 3 Patterns 16 Segments

Cat. No.

전압 FT-3860 FT-31260 FT-31460 FT-31660
230V DH.WFT12.860.3 DH.WFT12.1260.3 DH.WFT12.1460.3 DH.WFT12.1660.3
120V DH.WFT11.860.3 DH.WFT11.1260.3 DH.WFT11.1460.3 DH.WFT11.1660.3

※ Other Specifications are available upon Customer’s Request.
※ Tubes & Other Specifications are available upon Customer’s Request.
※ 운임 별도

Optional Heat Resistant Gloves

Cat. No. Description Ea. Price (₩)
SL.GL06.635 (a) Glove, Heat Resistant, 1000°C, Standard Type, L350mm
SL.GL06.636 (a) Glove, Heat Resistant, 1000°C, Long Type, L450mm
SL.GL06.421 (b) Glove, Heat Resistant, 400°C, L340mm
SL.GL06.422 (b) Glove, Heat Resistant, 400°C, L450mm

이미지 캡션

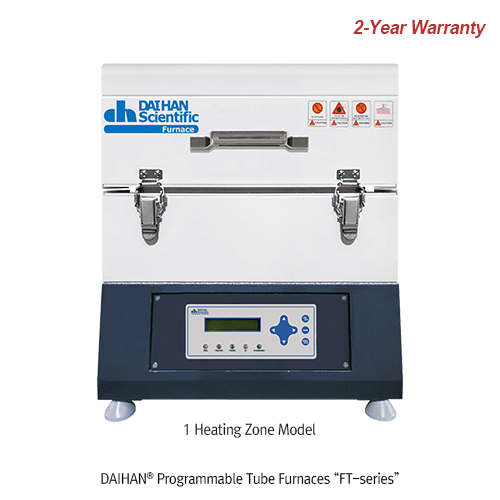

  • (1) Heating Zone Model
  • Figure : Open Door
  • (1) Side Figure of 1 Heating Zone Model
  • (a) Heat-resistant Glove (1,000°C)
  • (b) Heat-resistant Glove (400°C)

제품 이미지

Daihan FT-series Programmable Tube Furnace
