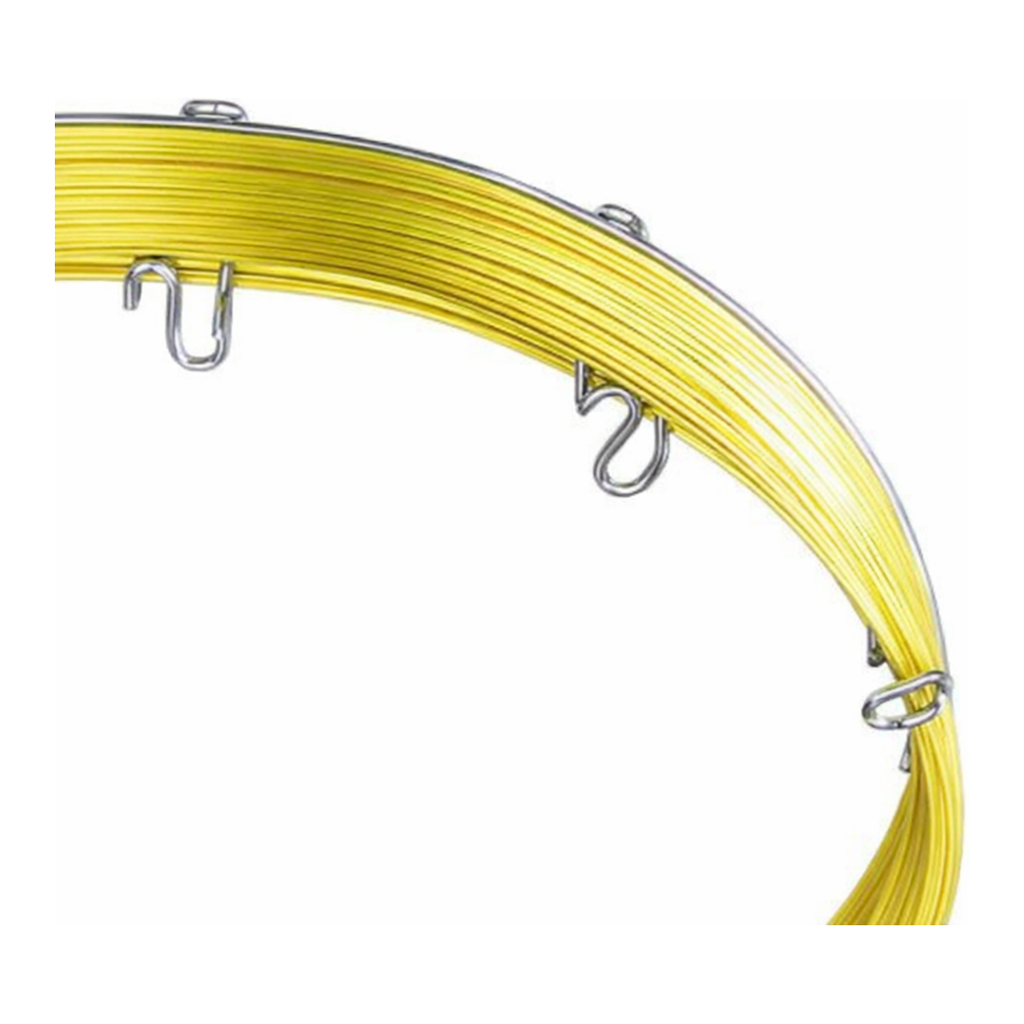

Restek Rt-S-BOND PLOT Column, 30m, 0.53mm ID, 20um

Overview

Features & Benefits

• Midpolarity porous polymer PLOT column incorporating high 4-vinylpyridine
• Suitable for analysis of nonpolar and polar compounds
• Temperature range: -60 to 250 °C

A GC column phase cross-reference is also available.
Model your PLOT column using the Pro EZ_GC Chromatogram Modeler.

Description

Porous polymers are unique, highly retentive stationary phases with a wide application range, capable of eluting both polar and nonpolar compounds. They are very hydrophobic, so water has no impact on retention times and even elutes as a good chromatographic peak.

The Q-BOND is the most nonpolar and widely used porous polymer column; functional groups can be added to increase polarity (e.g., QS-, S-, and U-BOND). The manufacturing process ensures particles adhere strongly to the tubing walls, minimizing particle generation.

This results in reproducible performance between columns, maintaining consistent selectivity and flow.
Recoiling PLOT columns is not recommended, as it may cause particle dislodgement from the tubing walls.

Specifications
