Ion Torrent™

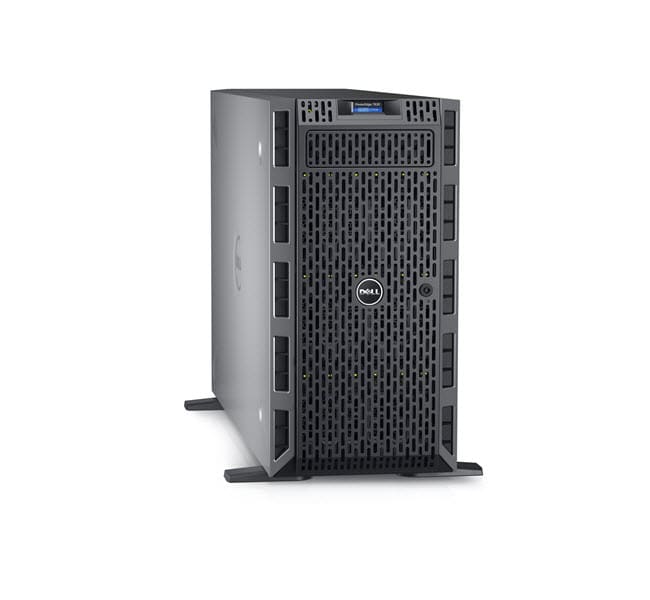

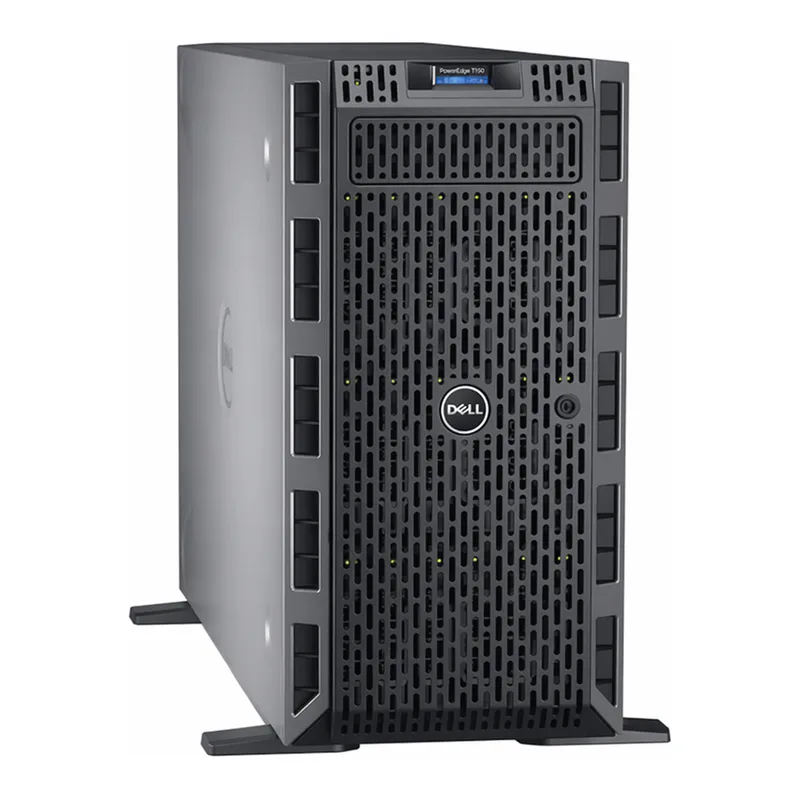

Torrent Storage™ NAS Device

The Torrent Storage™ NAS Device provides network-attached storage (NAS) for Ion Torrent™ sequencing runs and increases available storage space on자세히 알아보기

The Torrent Storage™ NAS Device provides network-attached storage (NAS) for Ion Torrent™ sequencing runs and increases available storage space on your Torrent Server. The NAS Device connects to the Torrent Server directly or through your local network. Torrent Storage NAS devices are installed by one of our field service engineers.

• Save data in your lab or data center
• Share storage with multiple Ion S5™ instruments and Torrent Servers
• Transfer data over direct network or LAN
• Access stored data over your network
• Use reliable storage with disk failure tolerance
• Expand storage as needed*

Onsite installation and configuration
After the NAS Device is ordered, it is installed locally by a field service engineer to ensure proper configuration.

Direct file export from Torrent Suite Software
Files generated from an Ion instrument are saved on the Torrent Server and can be transferred directly to the NAS Device via the Torrent Suite™ software interface. After transfer of the data, the files are available for re-analysis or archiving.

Torrent Storage NAS 110T device capacity

File type	Ion 318™ Chip	Ion 520™ Chip	Ion 530™ Chip	Ion 540™ Chip
WELLS and BAM	7850	5500	1800	450
BAM files only	22000	22000	8400	2100

Note: These numbers are approximate based on 200 bp runs.

Services and support
Service and support plans—comprehensive plans to maximize instrument performance and ensure availability of critical systems
Training—courses for experimental design, data analysis, troubleshooting, applications, and instrument operation
Bioinformatics—tailored support for NGS informatics execution, software use, data analysis, and downstream applications
DataSafe Solution—storage and back-up strategy, design, hardware, and support for all lab data

*Storage expansion is limited.

사양

제품라인Torrent Storage™

Software TypeTorrent Suite Software

용도(장비)Ion Proton™ System

제품 유형NAS Device

수량1 Server, 9 x 4 TB Drives

배송 조건Room Temperature

Unit SizeEach
