Applied Biosystems™

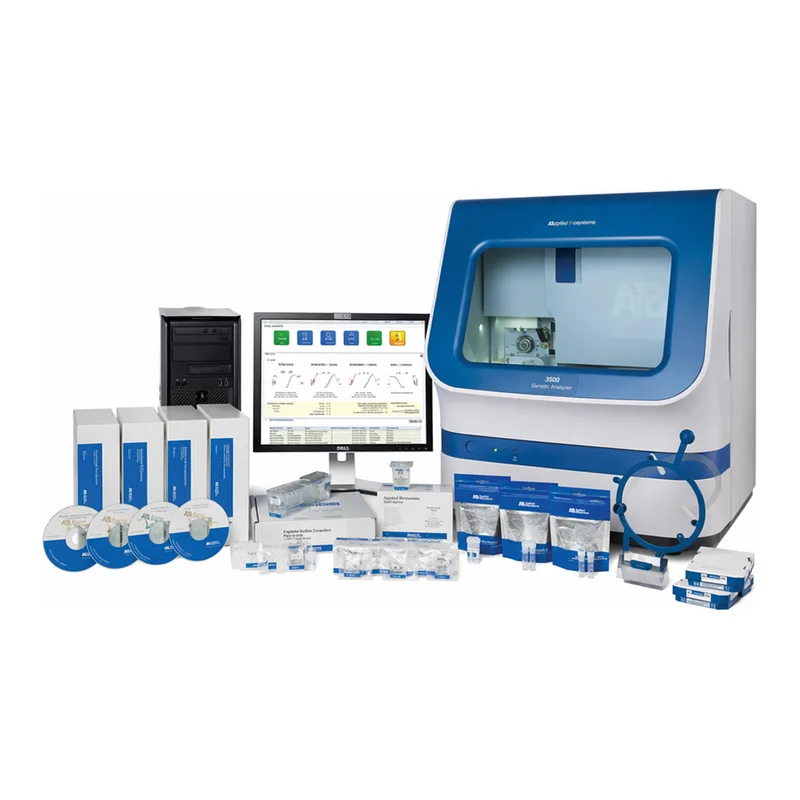

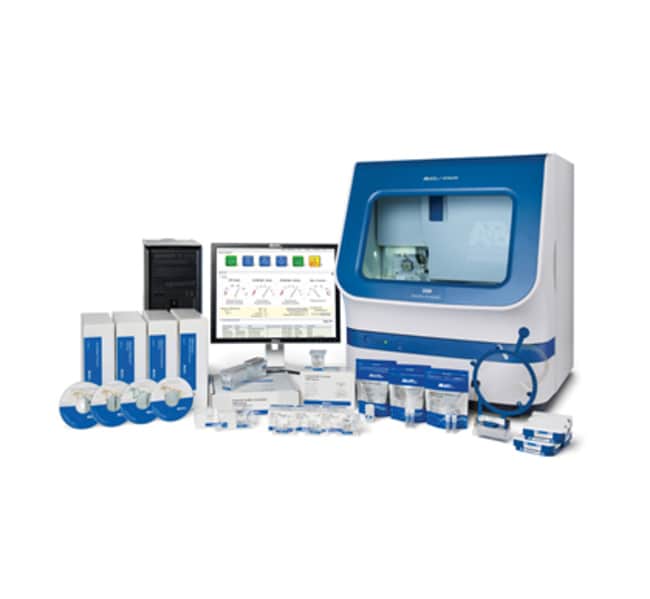

3500 Genetic Analyzer for Human Identification

The 8-capillary 3500 Genetic Analyzer sets the standard in capillary electrophoresis. The 3500-series instruments are the first genetic analyzers designed자세히 알아보기

The 8-capillary 3500 Genetic Analyzer sets the standard in capillary electrophoresis. The 3500-series instruments are the first genetic analyzers designed with a specific feature set and workflow for the Human Identification application. The complete product combines the instrument with Applied Biosystems™ reagents, consumables and software, as well as industry leading support, to provide an integrated HID system solution that significantly improves ease-of-use and application efficiencies.

• Increased Consistency – Reduced signal variation with factory standardization and optional in-lane normalization
• Real-Time Data Quality Assessment – On instrument data evaluation features provide rapid identification and re-injection of samples requiring additional processing
• Improved Thermal Control – Smaller oven design and improved door seal for more consistent data migration
• HID Specific Workflow – Pre-configured for Applied Biosystems™ amplification kits to simplify run setup and software navigation
• Effortless Consumable Installation – Convenient one-time use consumable packaging
• Consumable Tracking with RFID Technology – On-instrument, real-time monitoring of consumable consumption and expiration
• Enhanced Throughput – Faster data generation with 8 or 24 capillary arrays and shorter run times
• Improved Polymer Pump Design – Reduced waste and fewer bubbles for better data quality
• Simplified Instrument Installation & Operation – New solid-state laser eliminates need for high voltage wiring and external venting
• Streamlined Instrument Maintenance – HID specific performance check and maintenance scheduling tools
• Data Chain of Custody – Controlled access and tracking through Security, Audit and eSig features

For more information, please contact your local Sales Representative.

For Research Use Only. Not for use in diagnostics procedures.

사양

유형Genetic Analyzer

용도(장비)3500 Genetic Analyzer

분석 시간30 to 140 min. (varies depending on run module)

처리량Range: 80 to 368 sequencing samples per day (varies depending on run module), ≥312 samples per day (HID36 POP4 Module), ≥ 312 samples/day (HID36_POP4), ≥88 samples per day (standard sequencing with POP to 7™ and 50 cm capillaries)

캐필러리 길이50 cm, 36 cm

형식96-well plate, 8-well strips

캐필러리 수8 Capillaries

리드(read) 길이≥420 bp using a 36 cm capillary and POP-4™, >850 bp using a 50 cm capillary and POP-7™ polymer

수량1 system

폴리머POP-4™, POP-6™, POP-7™

폴리머 소비Replace at earliest of 14 days⁄96 samples⁄12 injections (96-sample pouches), Replace at earliest of 14 days⁄384 samples⁄60 Injections (384-sample pouches), Replace at earliest of 14 days⁄960 samples⁄120 Injections (960-sample pouches)

워런티1 Year Limited Warranty on Parts and Labor, Service Installation and Application Training Included

치수(깊이 x 폭 x 높이)Electrophoresis Unit Width (Closed Door): 61 cm, Electrophoresis Unit: 122 cm (W) (open door) x 61 cm (D) x 72 cm (H)

암페어15 A

전압Electrophoresis Voltage - Up to 20 kV

외부 컴퓨터Hard Drive: 2x 500GB SATA 3.0 Gb/s and 8 MB Data Burst Cache, Memory: 16 GB (2x 8GB) 1600 MHz DDR3 Non-ECC. 4th Gen Intel Core I7 Processor- 3.1 GHz Turbo Processor, Operating System: Windows 7 SP1

레이저 기능Long-life single-line 505 nm solid-state laser excitation source., Long-life single-line 505 nm solid-state laser

작동 환경Humidity: 20%-80% (non-condensing), Room temp.: <2° fluctuation during runs, Room temp: <2° fluctuation during runs, Temperature: 15°C-30°C, Humidity: 20–80% (non-condensing)

운영 체제Windows 7 (Service Pack 1)

소프트웨어GeneMapper™ ID-X Software

Unit SizeEach
